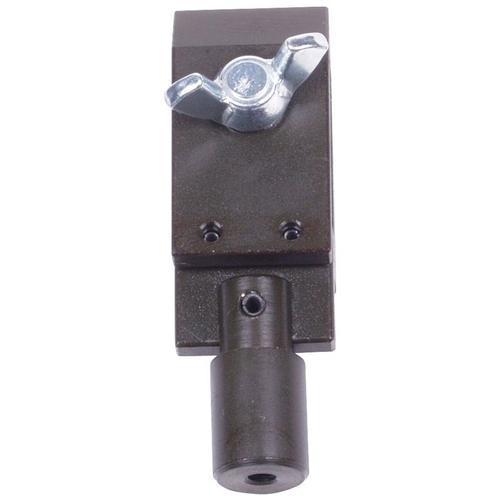

Shimpo FG-M4FLM20 20 mm Wide Film Frip, M4 Thread, 100 lb (50 kg) Capacity

SHIMPO INSTRUMENTS
SHIMPO Film Grip attachments are heavy-duty, spring-loaded grips with serrated jaws which are ideal for handling film samples up to 0.39” (10 mm) thick and 0.79” (20 mm) or 1.97” (50 mm) wide. Grips and attachments sold individually more ...
Scales > Force Gauge > Grips
Shimpo FG-M4FLM20 20 mm Wide Film Frip, M4 Thread, 100 lb (50 kg) Capacity

Specifications Chart View Full Detail Page



Download PDF
Shimpo FG-M4FLM20 20 mm Wide Film Frip, M4 Thread, 100 lb (50 kg) Capacity
FREE Ground Shipping
(48 US States Only)

Price: $135.00


In Stock - Ships within 24 hours

View More Pictures
View Features

Shimpo
SKU: FG-M4FLM20

Features

SHIMPO Film Grip attachments are heavy-duty, spring-loaded grips with serrated jaws which are ideal for handling film samples up to 0.39” (10 mm) thick and 0.79” (20 mm) or 1.97” (50 mm) wide. Grips and attachments sold individually
Weight: 1.00 lb
1 Year Manufacture Warranty
Other Shimpo Aluminum Adapters For use with 0.5 and 1 lb force gauges

FG-M4CL
Aluminum Chisel Adapter
M4 Thread

$15.00

FG-M6CN-AL
Aluminum Cone Head Adapter M6 Thread

$15.00

FG-M4FL
Aluminum Flat Head Adapter
M4 Thread

$15.00

FG-M4GV
Aluminum Notched Head Adapter
M4 Thread

$15.00

FG-M4FLM20
20 mm Wide Film Frip
M4 Thread
100 lb (50 kg) Capacity

$135.00

You are viewing this product

FG-M4FPG3
3 mm Fine Point Grip
M4 Thread
30 lb (15 kg) Capacity

$135.00

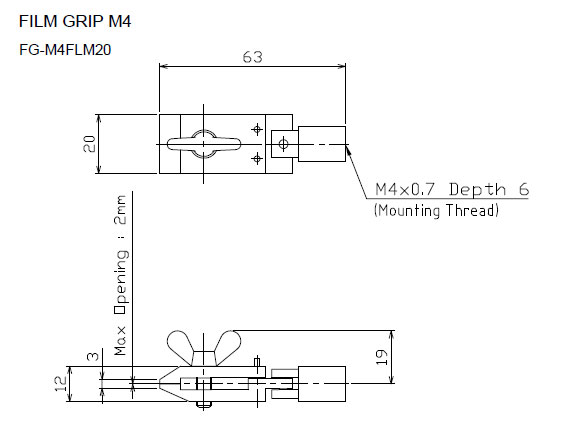

Specifications

Model FG-M4FLM20 FG-M6FLM20 FG-M6FLM50U
Range Thickness 0.079in (2 mm) 0.079in (2 mm) 0.079in (2 mm)
Width 0.79in (20 mm) 0.79in (20 mm) 1.97in (50 mm)
Capacity 100 lb (50 Kg) 100 lb (50 Kg) 100 lb (50 Kg)
Thread M4 M6 M6

* within the 48 continental US States
