Shimpo FGE-500HXY Digital Force Gauge 500 x 0.1 lb |
|
The Shimpo FGE-500HXY Capacity Digital Force Gauge measures both push and pull forces up to 500 lbs / 250 kg. Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale. more ... |
Test Equipment >
Force Gauges >
Digital Force Gauges
|
|
|
|
Features

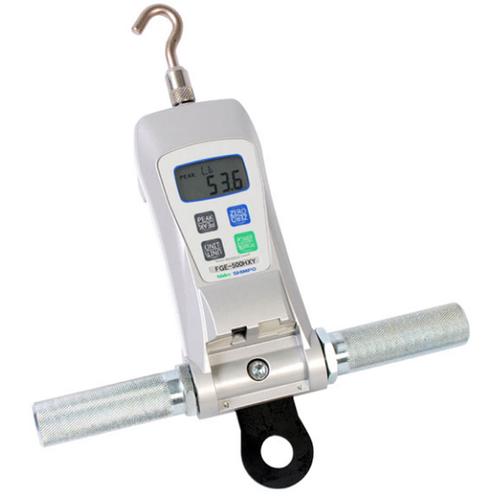

The Shimpo FGE-500HXY Capacity Digital Force Gauge measures both push and pull forces up to 500 lbs / 250 kg. Two knurled steel handles are provided for hand operation and a hanger is included which enables each gauge to be used as a scale.
Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-X to excel in both compression and tension applications in any direction.
Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.
Features
- 1000 Hz Sample Rate provides faster sampling producing better resolution and more accurate results
- Ideal for strict tolerances with its high accuracy +/-0.2% F.S.
- Measure and record compression and tension tests. Permits true “push-pull” testing
- 180° Reversible display and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
- 1 million operation load cell with superior overload protection provides a long-life, damage free product
- High-capacity rugged, ergonomic die cast aluminum construction allows usage on production floor
- Variable display response rate aids viewing of readings
- Real Time or Peak hold mode easily selectable with a single button push
- Flexible user preference with one button selection of engineering units
- Field calibration through keypad eliminates down time
- Dual power capable with rechargeable battery or AC
- CE Mark & RoHS Approval
Complete Kit
The FGE-HXY is supplied as a complete kit including AC adapter/charger, carrying case, 2 handles, hanger, metric thread to inch adapter, calibration cert and attachments (flathead, hook, chisel, notched head, cone head, extension rod) in a foam fitted plastic carrying case.
Weight:
4.00 lb
|
2 Year Manufacture Warranty
|
Other Shimpo FGE Digital Force Gauges
|
Specifications
Model |
FGE-0.5XY |
FGE-1XY |
FGE-2XY |
FGE-5XY |
FGE-10XY |
FGE-20XY |
FGE-50XY |
FGE-100XY |
FGE-200XY |
FGE-200XY |
Capacity X Readability |
0.5 x 0.001 lb |
1 x 0.001 lb |
2 x 0.001 lb |
5 x 0.001 lb |
10 x 0.01 lb |
20 x 0.01 lb |
50 x 0.01 lb |
100 x 0.1 lb |
200 x 0.1 lb |
500 x 0.1 lb |
200 x 0.1 g |
500 x 0.1 g |
1000 x 1 g |
2 x 0.001 Kg |
5 x 0.001 Kg |
10 x 0.01 Kg |
20 x 0.01 Kg |
50 x 0.01 Kg |
100 x 0.1 Kg |
250 x 0.1 Kg |
2 x 0.001 N |
5 x 0.001 N |
10 x 0.01 N |
20 x 0.01 N |
50 x 0.01 N |
100 x 0.1 N |
200 x 0.1 N |
500 x 0.1 N |
1000 x 1 N |
2500 x 1 N |
8 x 0.01 oz |
16 x 0.01 oz |
32 x 0.01 oz |
- |
- |
- |
- |
- |
- |
- |
Thread |
M4 |
M4 |
M6 |
M6 |
M6 |
M6 |
M6 |
M6 |
M6 |
M10 |
Accuracy |
±0.2% F.S. @ 73°F (23°C) |
Selectable Units |
oz, g, kg, N and lb. (Depending on Range) |
Overload Capacity |
200% of F.S. (200 lb and up: 150% F.S.) |
Data Sampling Rate |
1000 Hz |
Display |
4-Digit LCD, 0.5” (12 mm) high, Units 0.29” (7 mm). Reversible. Minus sign for tension |
Display Update Rate |
0.05, 0.1, 0.2, 0.3, 0.5, 1 sec |
Power |
Rechargeable Ni-MH battery or universal AC adapter/charger (100 - 240 VAC, 50/60 Hz) |
Auto Power Shut-Off |
Yes (not active if adapter/charge is in use) |
Battery Charge |
Approximately 12 hours continuous use per full charge |
Recharge Time |
Approximately 18 hours (when fully discharged) |
Temperature Limits |
32 - 104°F (0 - 40°C) |
Dimensions |
5.8 x 3 x 1.5” (147 x 75 x 38 mm) |
Product Weight |
1 lb |
1.1 lb |
2 lb |
Package Weight |
2.25 lb |
2.4 lb |
2.75 lb |
7.45 lb |
Certification |
CE, RoHS |
Warranty |
1 year |
Included Accessories |
AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, metric to inch thread adapter,
extension rod |
|
|
FGE-500HXY AC adapter/charger, carrying case, 2 handles, hanger, metric thread to inch adapter, calibration cert and attachments (flathead, hook, chisel, notched head, cone head, extension rod) in a foam fitted plastic carrying case |
|
|
|
* within the 48 continental US States
|
|
|
|
|
