Name: Shimpo FFG-M10FAB80U Fabric Grip, M10 Thread, 500 lb (250 kg) Capacity
Brand: Shimpo
SKU: 46787
Price: 310.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

Shimpo FFG-M10FAB80U Fabric Grip, M10 Thread, 500 lb (250 kg) Capacity

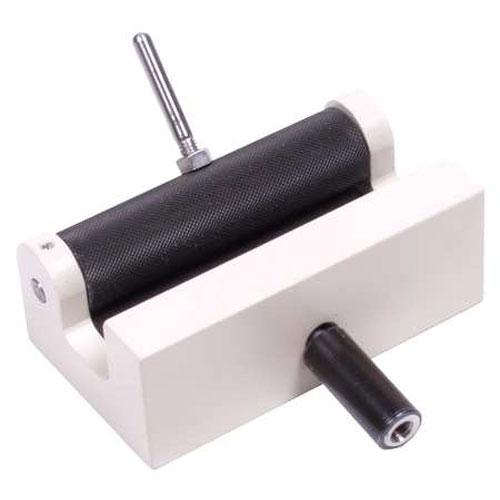

SHIMPO’s Fabric Grip attachments are eccentrically mounted and contain serrated roller grips that allow for self-tightening of specimens up to 3” (76.20 mm) wide and 0.25” (6.4 mm) thick.Grips and attachments sold individually (not in pairs). more ...

Test Equipment > Grips and Attachments > Vise - Parallel Jaw

Shimpo FFG-M10FAB80U Fabric Grip, M10 Thread, 500 lb (250 kg) Capacity

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Features

SHIMPO’s Fabric Grip attachments are eccentrically mounted and contain serrated roller grips that allow for self-tightening of specimens up to 3” (76.20 mm) wide and 0.25” (6.4 mm) thick.Grips and attachments sold individually (not in pairs).
Weight: 3.00 lb

1 Year Manufacture Warranty

Other Shimpo Steel Adapters For use with 500 - 1000 lb force gauges

FG-M10CL Steel Chisel Adapter M10 Thread $22.50	FG-M10CN Steel Cone Head Adapter M10 Thread $22.50	FG-M10FL Steel Flat Head Adapter M10 Thread $22.50	FG-M10CLV10U Clevis Grip M10 Thread 500 lb (250 Kg) Capacity $85.50	FG-M10TWN500U Cord/Twine Grip M10 Thread 500 lb (250 kg) Capacity $292.50
FG-M10TEN7U Tensile grip M10 thread 187 lb. (85 kg) Capacity $297.00	FG-M10TWN500UB Cord/Twine Grip M10 Thread; Upper & Lower 500 lb (250 kg) Capacity $306.00	FFG-M10FAB80U Fabric Grip M10 Thread 500 lb (250 kg) Capacity $310.50 You are viewing this product	FG-M6RCG4U Roller Cam Grip M6 Thread; 50lb (25kg) Capacity $355.50	FG-M10ADHE3 Adhesive Test Plates M10 Thread 500 lb (250 kg) Capacity $513.00
FG-M10HWDG5U Heavy Duty Wedge Grip 0.2 inch (5 mm) Max. Opening 1124 lb (500 kg) Max. Capacity $607.50	FG-M10HTG30U Heavy Duty Flat Chuck Tensile Grip 1.2 inch (30 mm) Max. Opening 1124 lb (500 kg) Max. Capacity $607.50	FG-HWDG5B Heavy Duty Wedge Grip Bottom Fixture 0.2 inch (5 mm) Max. Opening 1124 lb (500 kg) Max. Capacity $634.50	FG-HTG30B Heavy Duty Flat Chuck Tensile Grip Bottom 1.2 inch (30 mm) Max. Opening 1124 lb (500 kg) Max. Capacity $634.50

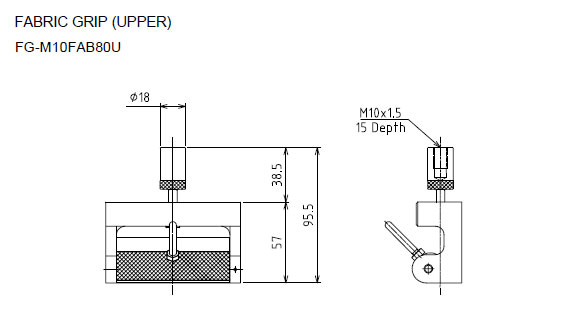

Specifications

Model	FG-M10FAB80U	FG-FAB80B
Self-tightening Jaw Width	3” (76.20 mm)	3” (76.20 mm)
Range Thickness	0.25” (6.4 mm) thick	0.25” (6.4 mm) thick
Capacity	500 lb (250 Kg)	500 lb (250 Kg)
Thread	M10	-

* within the 48 continental US States
