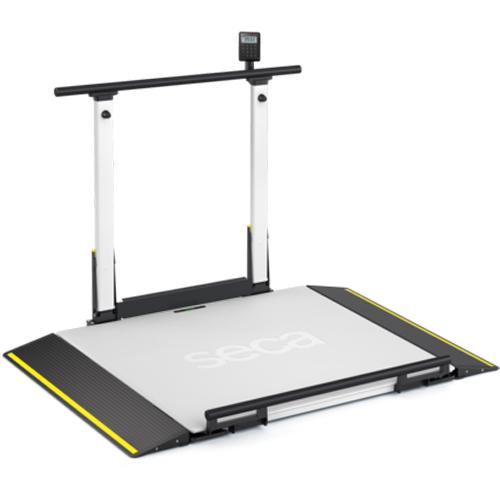

Seca XLine Base ONSWXIRBNN Wheelchair Handrail Scale EMR-Ready with Basic Display - 1100 x 0.2 lb |
|
| The seca XLine, with its sleek profile, substantial capacity, and expansive platform, reimagines the weighing experience for bariatric patients in wheelchairs. Healthcare personnel benefit from simplified tasks, enabling quick, secure, and uninterrupted patient care. Safety takes precedence, thanks to guardrails, a skid-proof surface, and an optional ramp for increased accessibility. more ... |
|
Medical Equipment >
Medical Scales >
Handrail Scales
|
|
|
|
|
|
Features
The seca XLine, with its sleek profile, substantial capacity, and expansive platform, reimagines the weighing experience for bariatric patients in wheelchairs. Healthcare personnel benefit from simplified tasks, enabling quick, secure, and uninterrupted patient care. Safety takes precedence, thanks to guardrails, a skid-proof surface, and an optional ramp for increased accessibility. The Tare-by-Scanning function further streamlines the weighing process by effortlessly taring out the pre-stored weight of the wheelchair through barcode scanning. Choose from two interface options – for EMR integration or non-integrated weighing – ensuring a seamless fit with your specific workflow requirements.
- Handrail equipped with an antimicrobial coating to enhance safety or serve as a standing aid
- XXL dimensions and capacity to accommodate bariatric wheelchairs
- Built to withstand the highest loads with a capacity of 1,100 lbs
- Extra low profile ensures a smooth and safe transition for wheelchair access onto the platform
- Third ramp available: upgrade your seca xline and further improve accessibility
- Tailor your experience by choosing between the basic display or the ID-Display™ with EMR-interface
- Tare-by-Scanning: simplify the weighing process by taring out the weight of the wheelchair by scanning its barcode
- EMR-validated, enabling seamless data transmission directly to an Electronic Medical Record (EMR) system or to a printer
Functions and Properties
TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inh switch-over, Adjustable damping, BMI, Standby mode, Acoustic signals can be activated, Backlighting
Includes:
- Two ramps seca seca 404
- Handrail seca 442
- Guard rail seca 446

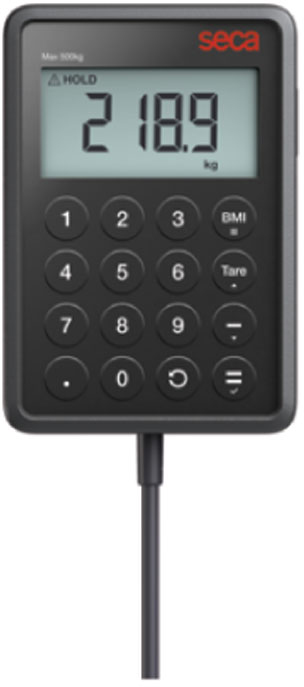

- Basic display seca 495 or ID-Display™ seca 496
- Platform scale (110 x 110 cm) seca 604
|
|
Other Seca Seca XLine Scales
|
Specifications
| Seca XLine Scales |
| Model |
ONSWXINBNN |
ONSWXINTNN |
ONSWXIRBNN |
ONSWXIRTNN |
ONSBXINTNN |
| Capacity x Readability |
1100 x 0.2 lb |
1100 x 0.2 lb |
1100 x 0.2 lb |
1100 x 0.2 lb |
2200 x 0.2 lb |
| 500 kg x 100 g |
500 kg x 100 g |
500 kg x 100 g |
500 kg x 100 g |
1000 kg x 100 g |
| Type |
XLine Base
Wheelchair Scales |
XLine Hold
Handrail Scales |
XLine Stretch
Bed Scales |
| Units |
kg/lbs |
| TARE-Range |
500 kg/1,100 lb |
1000 kg/2205 lb |
| Possible weighings |
15000 |
| Power supply |
Batteries/Power adapter |
Power adapter |
Batteries/Power adapter |
Power adapter |
| Cable length |
118 in/3 m |
| Interfaces |
none |
Ethernet, USB for barcode scanner, Wi-Fi |
none |
Ethernet, USB for barcode scanner, Wi-Fi |
| Digit size |
0.7 inch/18 mm |
0.4 inch/9 mm |
0.7 inch/18 mm |
0.4 inch/9 mm |
| Net weight |
122.1 lb/55.4 kg |
136.7 lb/62.0 kg |
215.4 lb/97.7 kg |
| Product width |
60 in/1523 mm |
103.7 in/2634 mm |
| Product height |
4.6 in/117mm |
44.4 in/1127 mm |
4.7 in/119 mm |
| Product depth |
48.0 in/1220 mm |
50.8 in/1290 mm |
48.3 in/1226 mm |
| Platform width |
43.3 in/1,100 mm |
86.6 in/2200 mm |
| Platform height |
2.2 in/55 mm |
| Platform depth |
43.3 in/1,100 mm |
| Ramp |
2 ramps included |
| Functions |
TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inch switch-over, Adjustable damping, BMI, Standby mode, Acoustic signals can be activated, Backlighting |
Display of user and patient name or ID, Display date of birth patient, TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, Auto-CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inch switch-over, Adjustable damping, BMI, BSA (Body surface area), Standby mode, Wi-Fi, Ethernet, Patient data input, Confirm button, Acoustic signals can be activated, Backlighting |
TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inch switch-over, Adjustable damping, BMI, Standby mode, Acoustic signals can be activated, Backlighting |
Display of user and patient name or ID, Display date of birth patient, TARE, Pre-TARE, HOLD, Auto-HOLD, CLEAR, Auto-CLEAR, RESET, lbs/kg switch-over, lbs/kg switch-over lock, cm/inch switch-over, Adjustable damping, BMI, BSA (Body surface area), Standby mode, Wi-Fi, Ethernet, Patient data input, Confirm button, Acoustic signals can be activated, Backlighting |
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
|
