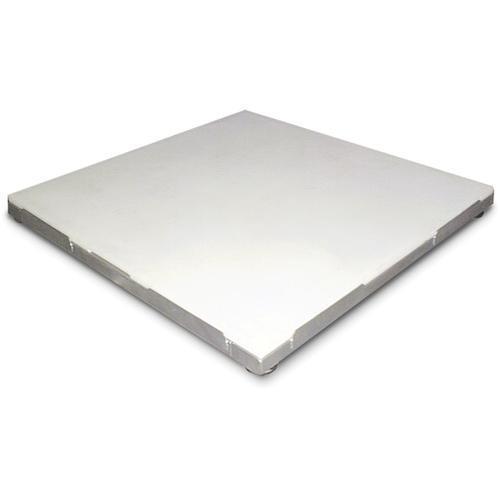

Rice Lake RoughDeck SD 50393 Polyethylene Deck 4 ft x 6 ft Sanitary Deck Floor Scale Base Only 2000 lb |
|
The RoughDeck SD floor scale offers a removable polyethylene deck for sanitization requirements, in addition to top performing RoughDeck features like all stainless steel channel frames, protected load cells and adjustable SUREFOOT™ support feet. Side brackets assure deck stability during washdown more ... |
Scales >
Industrial Scales >
Floor Scales
|
|
|
|
Features
The RoughDeck SD floor scale offers a removable polyethylene deck for sanitization requirements, in addition to top performing RoughDeck features like all stainless steel channel frames, protected load cells and adjustable SUREFOOT™ support feet. Side brackets assure deck stability during washdown.
- Rugged washdown design
- 304 stainless steel construction
- Rigid stainless steel tube frame
- 4 stainless steel, welded seal, shear-beam load cells
- Load cells protected on all four sides
- 20 ft (6 m) of SURVIVOR® EL147HE hostile environment load cell cable
- Remote TuffSeal® JB4SS stainless steel NEMA Type 4X junction box
- 4 adjustable stainless steel SUREFOOT™ support feet
- Removable polyethylene deck (deck weight: 80 lb (36.6 kg) on 4 ft x 4 ft size)
- Side brackets to hold deck during washdown
|
2 Year Manufacture Warranty
|
Other Rice Lake RoughDeck SD Polyethylene Deck Floor Scales
RoughDeck SD 50385 Polyethylene Deck 2.5 ft x 2.5 ft Sanitary Deck Floor Scale Base Only 2000 lb
$3,565.10
|
RoughDeck SD 50386 Polyethylene Deck 3 ft x 3 ft Sanitary Deck Floor Scale Base Only 2000 lb
$3,665.20
|
RoughDeck SD 50387 Polyethylene Deck 4 ft x 4 ft Sanitary Deck Floor Scale Base Only 2000 lb
$3,846.15
|
RoughDeck SD 50388 Polyethylene Deck 4 ft x 4 ft Sanitary Deck Floor Scale Base Only 5000 lb
$3,846.15
|
RoughDeck SD 50389 Polyethylene Deck 4 ft x 4 ft Sanitary Deck Floor Scale Base Only 10000 lb
$4,038.65
|
RoughDeck SD 50390 Polyethylene Deck 4 ft x 5 ft Sanitary Deck Floor Scale Base Only 2000 lb
$4,223.45
|
RoughDeck SD 50391 Polyethylene Deck 4 ft x 5 ft Sanitary Deck Floor Scale Base Only 5000 lb
$4,223.45
|
RoughDeck SD 50392 Polyethylene Deck 4 ft x 5 ft Sanitary Deck Floor Scale Base Only 10000 lb
$4,408.25
|
RoughDeck SD 50393 Polyethylene Deck 4 ft x 6 ft Sanitary Deck Floor Scale Base Only 2000 lb
$4,604.60
You are viewing this product
|
RoughDeck SD 50393 Polyethylene Deck 4 ft x 6 ft Sanitary Deck Floor Scale Base Only 5000 lb
$4,604.60
|
RoughDeck SD 50396 Polyethylene Deck 5 ft x 5 ft Sanitary Deck Floor Scale Base Only 2000 lb
$4,604.60
|
RoughDeck SD 50397 Polyethylene Deck 5 ft x 5 ft Sanitary Deck Floor Scale Base Only 5000 lb
$4,604.60
|
RoughDeck SD 50395 Polyethylene Deck 4 ft x 6 ft Sanitary Deck Floor Scale Base Only 10000 lb
$5,000.80
|
RoughDeck SD 50398 Polyethylene Deck 5 ft x 5 ft Sanitary Deck Floor Scale Base Only 10000 lb
$5,000.80
|
RoughDeck SD 50399 Polyethylene Deck 5 ft x 7 ft Sanitary Deck Floor Scale Base Only 2000 lb
$6,292.80
|
RoughDeck SD 50400 Polyethylene Deck 5 ft x 7 ft Sanitary Deck Floor Scale Base Only 5000 lb
$6,292.80
|
RoughDeck SD 50401 Polyethylene Deck 5 ft x 7 ft Sanitary Deck Floor Scale Base Only 10000 lb
$7,121.20
|
|
Specifications
Models |
50385 |
50386 |
50386 |
50388 |
50389 |
50390 |
50391 |
50392 |
50393 |
50394 |
50395 |
Size (W x L) |
2.5 ft x 2.5 ft |
3 ft x 3 ft |
4 ft x 4 ft |
4 ft x 4 ft |
4 ft x 4 ft |
4 ft x 5 ft |
4 ft x 5 ft |
4 ft x 5 ft |
4 ft x 6 ft |
4 ft x 6 ft |
4 ft x 6 ft |
Capacity x Readability |
2000 x 0.5 lb
| 2000 x 0.5 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
|
Hight |
4.4 in |
4.4 in |
4.4 in |
4.4 in |
5.4 in |
4.4 in |
5.4 in |
5.4 in |
5.4 in |
5.4 in |
6.4 in |
Legal For Trade |
NTEP CC 92-001, Class III 5000 d |
End Load Capacity |
100% full scale at 2,000 lb and 5,000 lb 80% full scale at 10,000 lb |
Junction Box |
Stainless steel enclosure can be located up to 10 ft away from scale |
Deck |
Removable polyethylene deck |
Cable |
20 ft (6.1 m) (for connecting junction box to indicator) |
Warranty |
RoughDeck SD weldment and load cells two years, all other components one year |
Approvals |
NTEP CC 92-001, Class III 5000 d |
Models |
50396 |
50397 |
50398 |
50399 |
50400 |
50401 |
Size (W x L) |
5 ft x 5 ft |
5 ft x 5 ft |
5 ft x 5 ft |
5 ft x 7 ft |
5 ft x 7 ft |
5 ft x 7 ft |
Capacity x Readability |
2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
| 2000 x 0.5 lb
| 5000 x 1 lb
| 10000 x 2 lb
|
Hight |
5.4 in |
5.4 in |
5.4 in |
6.4 in |
6.4 in |
6.4 in |
Legal For Trade |
NTEP CC 92-001, Class III 5000 d |
End Load Capacity |
100% full scale at 2,000 lb and 5,000 lb 80% full scale at 10,000 lb |
Deck |
Constructed of two pieces of polyethylene to make up the top deck. |
Junction Box |
Stainless steel enclosure can be located up to 10 ft away from scale |
Cable |
20 ft (6.1 m) (for connecting junction box to indicator) |
Warranty |
RoughDeck SD weldment and load cells two years, all other components one year |
Approvals |
NTEP CC 92-001, Class III 5000 d |
|
|
|
|
