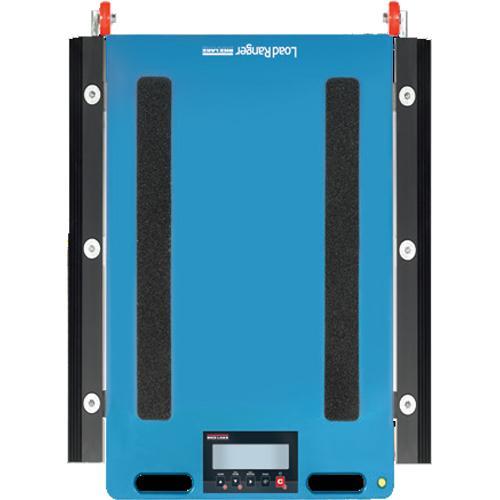

Rice Lake 212097 Load Ranger-2G4-MD 22 in x 20 in S-Series Wireless Wheel Weighing Scale 6600 x 2 lb

Load Ranger wireless wheel pads offer an adaptable, high accuracy solution for vehicle weighing, with unmatched performance. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. The built-in weight display is equipped with a 2.4Ghz RF industrial radio communication for transmitting data wirelessly to the optional remote touchscreen indicator up to 160 ft away.

Law Enforcement Approved (212835 only)

Load Ranger has NTEP Class IIII approval to write legal tickets based on weight in authorized locations. This saves your department time and money by not having to drive to an offsite certified truck scale.

Why chose Load Ranger?

The built-in weight indicator of each Load Ranger wheel pad is equipped with an industrial Bluetooth with 2.4GHz wireless communication. To simplify operation, the Load Ranger wheel pads can be paired with an optional digital weight indicator with color touch screen and thermal printer fitted in an ABS plastic transport case. The optional digital weight indicator features axle weighing software that sums axle weights to eliminate human error and prints off a totalized ticket in real time for the officer’s records.

• Higher approved weight capacity and finer resolution of 22,000 x 20 lb
• Integrated ramps fitted with non-slip rubber base
• Internal rechargeable battery with 40 hours of battery life
• Ergonomic transport handle

Load Ranger Cart: For larger jobs, the Load Ranger cart can hold up to six Load Ranger wheel pads and one Load Ranger remote indicator.

Touchscreen Indicator To simplify operation, Load Ranger wheel weigh pads can be paired with a touchscreen digital weight indicator and thermal printer fitted in an ABS plastic transport case. This all-in-one solution allows remote weight summing of wheel pads to capture wheel or axle weights, either individually or in sets of up to 14 pads

• Up to 6 individual pads (3 sets) per system, completely wireless
• Up to 14 individual pads (7 sets) maximum per system, pairs must be joined with Y-cables and communicate wirelessly to the indicator
• Industrial RF radio module to communicate with indicator
• Integrated wheels and nonslip rubber under platform
• Internal rechargeable battery with 40 hours of battery life
• Built-in indicator on each scale with 1 in character display
• IP67 rating
• Cover plate protects built-in indicator

• Carrying case: 1 ft x 1 ft 6 in x 7 in
• Backlit graphic display with touchscreen technology
• Internal battery with 10 hours of battery life
• Real-time clock
• Permanent data storage
• 24-bit A/D converter, up to 2,300 conversions per second
• One RS-232 serial port
• Thermal printer
• ABS transport case

• Multi-scale function mode weighs with up to 14 individual pads (seven sets)
• Static axle weighing function, up to two channels
• Calculation of center of gravity
• Semi-automatic and preset tare
• Selection of displayed data on LCD touchscreen
• 1,000 field database
• Print and display list of last 3,500 vehicles

• Leveling modules
• Aluminum ramps
• NTEP Class IIII Certified Versions (Select sizes and capacities only, consult factory for more info)
