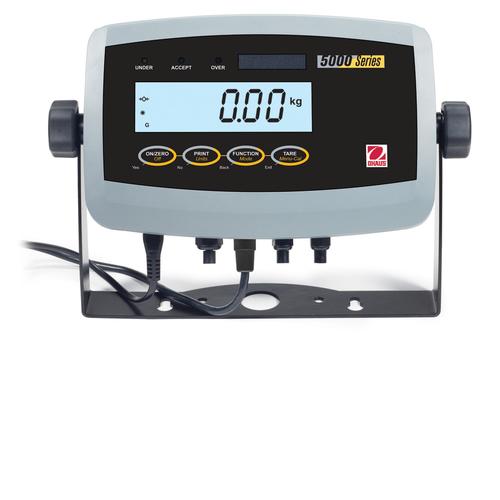

Ohaus T51P Indicator With ABSHousing, Dry Use, 1 tp 999,950kg/Ib |
|
| Ideal for bench and floor scale use, the T51P Indicator has an ABS plastic housing, with internal rib reinforcements, a large, bright backlit display, raised tactile keys, battery-powered use, and is easy set-up and use more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
Ideal for bench and floor scale use, the T51P Indicator has an ABS plastic housing, with internal rib reinforcements, a large, bright backlit display, raised tactile keys, battery-powered use, and is easy set-up and use. The T51P is the solution to your dry-use applications that require multiple functions, rugged construction, comprehensive yet intuitive software and multiple connectivity options.
High-impact, durable ABS
plastic housing with
reversible rear cover for
either wall, column, scale
front, or table-top mounting
30,000d maximum
displayed weighing
resolution with temporary
display of 10x readability
in weighing mode using quick
key press
Quick display of results
using large LCD with
high-contrast white
backlight
Easy to operate with
4-key membrane keypad with
raised tactile keys
Weighs in one or more
units: kg, g, lb, oz, lb:oz
(decimal), tonnes and
user-definable custom unit
Multiple weighing modes
including Counting, Percent
Weighing, Dynamic/Animal
Weighing, Checkweighing, and
Display Hold
Internal universal
switching power supply with
universal line cord or can
be powered using 6 C
batteries (80 hour battery
life) Optional NiMH
internal rechargeable power
pack available
Includes RS232 interface
with GMP/GLP data output
including date and time
Optional interfaces
include DC relay control
kit, AC relay control kit,
2nd RS232 and RS485/422
Weight:
3.30 lb
|
|
Other Ohaus 5000 Series Indicators
|
Specifications
| Model |
T51P |
T51XW |
| Display resolution |
1:30,000d |
| Counting resolution (without Auto-add) |
1:300,000d |
| Minimum APW (without Auto-add) (lb/g) |
0.1d |
| Weighing units |
kg, lb, g, oz, lb:oz, tonnes, custom |
| Weighing modes |
Static Weighing, Dynamic Weighing, Counting, Checkweighing, Percent Weighing, Display Hold |
| Housing |
ABS plastic with internal reinforcing ribs |
304 stainless steel enclosure |
| Display |
6-digit, 7-segment LCD, 25mm /1 inch high digits, with high-contrast white LED backlight |
| Keyboard |
4 function membrance switches, raised tactile keys |
| Ingress Protection |
- |
NEMA 4X/ IP66 |
| Load Cell Excitation (V dc) |
5V DC |
| Load Cell Drive |
Up to 8 x 350 ohm Load Cells |
| Load Cell input sensitivity |
Up to 3 mV/V |
| Stabilization time (seconds) |
Within 2 seconds |
| Auto Zero Tracking |
Off, 0.5, 1 or 3d |
| Zeroing range |
2% or 100% of capacity |
| Span Calibration |
1 kg / lb to 100% of capacity |
| Interface |
Built-in RS232 and External Tare Input included / Optional 2nd RS232, RS422/485, AC Relay or DC Relay available |
| Dimensions WxHxD (in/cm) |
10.2 x 2.7 x 8.8 in / 260 x 71 x 224 mm |
10.3 x 3 x 8.7 in / 262 x 76 x 212 mm |
| Net Wt. (lb/kg) |
3.3 lb / 1.5 kg |
7.7 lb / 3.5 kg |
| Shipping Wt. (lb/kg) |
5.0 lb / 2.3 kg |
9.5 lb / 4.3 kg |
| Shipping dimensions (WxDxH) (in/cm) |
13 x 9.5 x 7 in / 330 x 240 x 180 mm |
13 x 9.5 x 7 in / 330 x 240 x 180 mm |
| Operating Temperature Range |
14°F to 104°F
-10°C to 40°C |
| Operating Humidity Range |
Maximum 80% up to 88°F/31°C, decreasing linearly to 50% at 104°F/40°C |
| Powered By |
100-240 VAC/ 50-60 Hz Internal universal power supply, line cord / 6 C cell batteries (not supplied) with 80 hour life/ Opt. int. rechargeable NiMH battery (10-hr. typical operation) |
100-240 VAC/ 50-60 Hz Internal universal power supply, hardwire cord / Opt. int. rechargeable NiMH battery (10-hr. typical operation |
|
|
|
|
