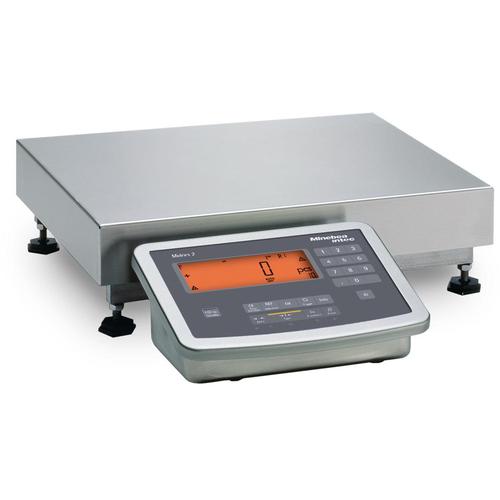

Minebea MW2PIUE50-DDI Midrics Industrial Scale With Galvanized/Painted frame 60lbs (30kg) x 0.002 (0.001kg)

Minebea Intec
The new Minebea Midrics Extend Bench Scale line is available! With a choice of four Combics platform sizes in either mild steel or stainless steel and four capacities, these scales are ideal for any industrial weighing application. These preconfigured bench scales allow for fast delivery time and no hassle ordering. more ...
Scales > Industrial Scales > Bench Scales
Minebea MW2PIUE50-DDI Midrics Industrial Scale With Galvanized/Painted frame  60lbs (30kg) x 0.002 (0.001kg)

Specifications Chart


Call for more info
Download PDF
Minebea MW2PIUE50-DDI Midrics Industrial Scale With Galvanized/Painted frame 60lbs (30kg) x 0.002 (0.001kg)
FREE Ground Shipping
(48 US States Only)

Price: $1,530.00


In Stock - Ships within 24 hours

Optional Accessories

View Features

Minebea Intec
SKU: MW2PIUE50DDI

Optional Warranty
CPS 879520004993 2 Year Extended Warranty for Portable Scales Under $2500
Price: $199.95
CPS 879520005044 4 Year Extended Warranty for Portable Scales Under $2500
Price: $289.95

Features

Midrics/Combics Extend Bench Scales- Midrics 2 Indicator Stainless Steel With MIS2-U

Midrics/Combics Extend Bench Scales- Midrics 2 Indicator: 20mm Backlit 14-segment LCD display, bar graph readout, Integrated A/D converter for connecting analog platforms, AISI 304 stainless steel housing, IP65 protection, Class III NTEP Approved. Applications: weighing, counting, checkweighing, classification (into three or five classes), totalizing, net-total, weighing in percent, neutral measurement.

Combics Mild Steel Base Features MW2P1: mild steel platform, galvanized base frame, NEMA4/IP65 protection rating.

Combics Stainless Steel Base MW2S1: AISI 304 stainless steel platform, IP67 protection rating MW2S4URE-250GG-I: four strain gauge load cells.

The new Sartorius Midrics Extend Bench Scale line is available! With a choice of four Combics platform sizes in either mild steel or stainless steel and four capacities, these scales are ideal for any industrial weighing application. These preconfigured bench scales allow for fast delivery time and no hassle ordering.

Features
  • Display: backlit, 14-segment, 20 mm LCD for weight readouts
  • Integrated A/D-converter for connecting analog platforms
  • Material: AISI 304 stainless steel IP-Protection: IP65
  • Optional RS-232, RS-485, RS-422, 4-20mA
Technical Specifications
Maximum readability 15,000 digits
Bridge impedance 83 to 2000 ohms
Measuring signal variation 0 mV to 29,4 mV
Measuring signal/verification
scale interval
min. 0,672 µ V/e
Sensitivity 4 million digits max. (internal resolution)
Digital, protected interface According to EN45501
Data interface Optional: RS-232, RS-485, RS-422, 4-20mA
Additional interface port 2
Display 20mm LCD, 14-segment, backlit
Temperature range -10°C bis +40°C
Power cord length 3 m
Net weight (approx.) 2,3 kg
Limitation of emissions Acc. to EN61326-1, Class B (IEC61326-1)
Defined immunity to interference Acc. to EN 61326-1, industrial environments (IEC61326-1)
Electrical safety Acc. to EN61010-1 (IEC 61010-1)
Load cell connection
-Input voltage
-Available sensor technology
-8,4 V
4 or 6-conductor technology
Number of verification scale intervals
(configured for single
range, multiple range model)
<=3000e, 2x 3000e according to EN 45501
Load cell connection
-Input voltage
-Available sensor technology
-8,4 V
4 or 6-conductor technology
Housing
-Material
-Type of protection acc. to EN 60529
Stainless steel: AISI type 304
IP65
Power supply
DC power supply
AC power supply
Battery operation
100-240 VAC (–15/+10%), 50-60 Hz, max.17W/23VA
Optional 24 VDC (+/-5%), max.12 W
Optional 24 VAC (+/-5%), 50-60 Hz, max.12W
Optional via internal or external rechargeable battery pack
Performance specifications of the built-in
A/D converter: weighing capacity
Up to 256t

Dimensions
X:
12.00   Y: 12.00
Weight: 22.00 lb
Other Minebea Intec Midrics Painted Steel Bench Scales - MW2 - Level 2

Minebea MW2P1U3DCLU
Midrics Complete Bench Scales Painted Scales 12.5 x 9.5
5lb x 0.001lb

$1,165.50

Minebea MW2P1U15DCL
U Midrics Complete Bench Scales Painted Scales 12.5 x 9.5
25lb x 0.005lb

$1,165.50

Minebea MW2P1U6DCLU
Midrics Complete Bench Scales Painted Scales 12.5 x 9.5
10lb x 0.002lb

$1,165.50

Minebea MW2P1U60EDLU Midrics Complete Bench Scales Painted Scales 15.75 x 11.8
100lb x 0.02lb

$1,201.50

Minebea MW2P1U30EDL
U Midrics Complete Bench Scales Painted Scales 15.75 x 11.8
50lb x 0.01lb

$1,201.50

Minebea MW2P1U-6DC-L
Midrics Industrial Scale With Applications and Galvanized/Painted Frame 15 x 0.001 lb

$1,231.20

Minebea MW2P1U-3DC-L Midrics Industrial Scale With Galvanized/Painted frame 6 x 0.0005 lb

$1,231.20

Minebea MW2P1U-15DC-L
Midrics Industrial Scale With Applications and Galvanized/Painted Frame 30 x 0.002 lb

$1,231.20

Minebea MW2P1U-30ED-L
Midrics Industrial Scale With Applications and Galvanized/Painted Frame 60 x 0.005 lb

$1,287.90

Minebea MW2P1U-60ED-L
Midrics Industrial Scale With Applications and Galvanized/Painted Frame 120 x 0.01 lb

$1,287.90

Minebea MW2P1U150FE
LU Midrics Complete Bench Scales Painted Scales 19.5 x 15.75
250lb x 0.05lb

$1,345.50

Minebea MW2P1U60FELU Midrics Midrics Complete Bench Scales Painted Scales 19.5 x 15.75
100lb x 0.02lb

$1,345.50

Minebea MW2S1UE-10CC Midrics Industrial Scale With Galvanized/Painted frame 15lbs (6kg) x 0.0005 (0.0002kg)

$1,462.50

Minebea MW2P1U-30FE-L
Midrics Complete Bench Scales Painted Scales 19.5 x 15.75
60 x 0.005 lb

$1,521.90

Minebea MW2P1U-150FE-L
Midrics Industrial Scale With Applications and Galvanized/Painted Frame 300 x 0.02 lb

$1,521.90

Minebea MW2P1U-60FE-L
Midrics Industrial Scale With Applications and Galvanized/Painted Frame 120 x 0.01 lb

$1,521.90

Minebea MW2PIUE50-DDI Midrics Industrial Scale With Galvanized/Painted frame 60lbs (30kg) x 0.002 (0.001kg)

$1,530.00

You are viewing this product

Minebea MW2S1UE-100E
Midrics Industrial Scale With Galvanized/Painted frame 150lbs (60kg) x 0.005 (0.002kg)

$1,809.00

Specifications

Midrics/Combics Extend Bench Scales- Midrics 2 Indicator Stainless Steel With MIS2-U
Model MW2S1UE-10CC MW2S1UE-50DI MW2S1UE-100E MW2S1URE-25G
Dimension 10" x 10" 12” x 12” 18” x 18” 24” x 24”
Capacity / Readability (Lbs.) 15 x 0.0005 60 x 0.002 150 x 0.005 300 x 0.01
Capacity / Readability (Kg.) 6 x 0.0002 30 x 0.001 60 x 0.002 150 x 0.01
Legal For Trade NO
Cable Platform (ft.) 10
Data Interface ptional: RS-232, RS-485, RS-422, 4-20mA
Display 0mm LCD, 14-segment, backlit
Net weight (approx.) 2,3 kg
Power supply
DC power supply
AC power supply
Battery operation
100-240 VAC (–15/+10%), 50-60 Hz, max.17W/23VA
Optional 24 VDC (+/-5%), max.12 W
Optional 24 VAC (+/-5%), 50-60 Hz, max.12W
Optional via internal or external rechargeable battery pack

* within the 48 continental US States


Optional Accessories


Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
more info
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
more info
Price: $194.75
In Stock
btn buy
Minebea YBP03CIS 4-leg Base For Column

Dimensions of the floor plate (LxW) 220mm x 135mm

Equipment supplied: floor –mounted column incl. fasteners (3 M4x 8 screws, screws with thread designed for wood acc. to DIN571-?6x50-A2, 4 dowels ? 8x40)

Base for installing floor-mounted column or bench stand

You can attach the base (YBP03CIS), if needed, to the bottom of the column.

At each end of the base, hook the ends of the two feet together; use the 4 Allen screws to attach the base to the column.

The illustration shows a view of the column and base from the bottom.

Minebea YPP01CWS Printer stand for YDH03CISUS column
more info
Minebea YPP01CWS Printer stand for YDH03CISUS column
more info
Price: $336.30
In Stock
btn buy
Minebea YPP01CWSUS Data Printer

Features

The following can be computed/printed out using this Sartorius data printer:

  • Number of weighing operations
  • Mean value
  • Standard deviation
  • Variation coefficient
  • Minimum value/weight
  • Maximum value/weight
  • Difference between the maximum and minimum value/weight

Data are transferred either automatically or manually by pressing a key.

Built-in real-time clock

Built-in statistics program. These programs can be individually selected to meet your needs.

Counter for consecutive numbering of transactions can be activated.

High contrast LCD that shows the date or time as well as the current transaction number.

Integrated rechargeable batteries with battery level indicator.

Ultrafast print head.

Runs on the balances power, no separate power supply necessary.

Easy to change paper roll and ink ribbon cassette.

Minebea YDH03CISUS 43in Floor Mounted Column
more info
Minebea YDH03CISUS 43in Floor Mounted Column
more info
Price: $275.50
In Stock
btn buy

43in Floor Mounted Column

Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
more info
Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
more info
Price: $190.00
In Stock
btn buy

13" Column for attaching indicator to platform for sizes 12.6" x 9.4".

  • Height: 13"
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
more info
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
more info
Price: $206.15
In Stock
btn buy

19.7" Column for attaching indicator to platform for sizes 15.7" x 11.8" and 19.7" x 15.7".

  • Height: 19.7"
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
more info
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
more info
Price: $237.50
In Stock
btn buy

29.5" Column for attaching indicator to platform for sizes 19.7" x 15.7".

  • Height: 29.5"
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
more info
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
more info
Price: $85.50
In Stock
btn buy

Stainless steel holder for bench top fixing, only for platform sizes 9.4" (DC), 15.7" x 11.8" (ED) and 19.7" x 15.7" (FE).

Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
more info
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
more info
Price: $76.00
In Stock
btn buy

Brackets for wall mounting, stainless steel, tiltable indicator.
