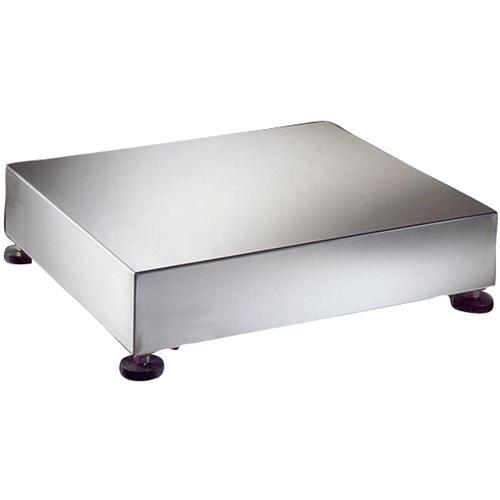

Minebea ISXBBS-6-H Combics 2 Stainless Steel Explosion Proof Platform 7.1 in x 7.1 in - 13.5 lb x 0.00002 lb |
|
| FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CIX53-U Can be used in areas where explosive gas and dust mixtures occur Documentation to verify intrinsic safety available upon request Completely constructed with AISI 304 stainless steel more ... |
|
Scales >
Industrial Scales >
Explosion Proof
|
|
|
|
|
|
Features
Sartorius® Intec Combics
Explosion Proof Bench and Floor Platforms
Standard Features
- FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CIX53-U
- Can be used in areas where explosive gas and dust mixtures occur
- Documentation to verify intrinsic safety available upon request
- Completely constructed with AISI 304 stainless steel
- All units are built for easy cleaning and disinfection and meet HACCP and FDA requirements for the food industry.
- Load cells are hermetically sealed, IP68 protection rated
Applications
- Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing
- Regulatory Compliance
- NEMA, HACCP, FDA, GLP/GMP*, FM
Dimensions
X:
10.00
Y:
10.00
Weight:
20.00 lb
|
|
Other Minebea Intec IS-X Combics 2 Stainless Steel Explosion Proof Scales 6.8 lb to 660 lb
Minebea IS16EDE-HX
Combics 2 Explosion Proof Platform 15.8 in x 11.8 in - 35 lb x 0.0002 lb
$4,495.50
|
Minebea IS34EDE-HX
Combics 2 Explosion Proof Platform 15.8 in x 11.8 in - 75 lb x 0.0002 lb
$4,765.50
|
Minebea IS64EDE-SX
Combics 2 Explosion Proof Platform 15.8 in x 11.8 in - 141 lb x 0.002 lb
$5,265.75
|
Minebea IS150IGG-HX
Combics 2 Explosion Proof Platform 32 in x 24 in - 330 lb x 0.002 lb
$6,520.50
|
Minebea ISXBBS-3-H
Combics 2 Stainless Steel Explosion Proof Platform 7.1 in x 7.1 in - 6.8 lb x 0.00002 lb
$6,555.00
|
Minebea IS300IGG-HX
Combics 2 Explosion Proof Platform 32 in x 24 in - 660 lb x 0.005 lb
$6,885.00
|
Minebea IIS64EDE-HX
Combics 2 Explosion Proof Platform 15.8 in x 11.8 in - 141 lb x 0.0002 lb
$7,087.50
|
Minebea ISXBBS-6-H
Combics 2 Stainless Steel Explosion Proof Platform 7.1 in x 7.1 in - 13.5 lb x 0.00002 lb
$7,594.00
You are viewing this product
|
Minebea Combics 2 Explosion Proof Scale with Safe Area Power 15.8 in x 11.8 in - 35 lb x 0.0002 lb
$8,193.60
|
Minebea Combics 2 Explosion Proof Scale with Safe Area Power 15.8 in x 11.8 in - 75 lb x 0.0002 lb
$8,463.60
|
Minebea Combics 2 Explosion Proof Scale with Safe Area Power 15.8 in x 11.8 in - 141 lb x 0.002 lb
$8,963.85
|
Minebea Combics 2 Explosion Proof Scale with Hazardous Area Power 15.8 in x 11.8 in - 35 lb x 0.0002 lb
$9,276.80
|
Minebea Combics 2 Explosion Proof Scale with Hazardous Area Power 15.8 in x 11.8 in - 75 lb x 0.0002 lb
$9,546.80
|
Minebea Combics 2 Explosion Proof Scale with Hazardous Area Power 15.8 in x 11.8 in - 141 lb x 0.002 lb
$10,047.05
|
Minebea Combics 2 Explosion Proof Scale with Safe Area Power 32 in x 24 in - 330 lb x 0.002 lb
$10,218.60
|
Minebea Combics 2 Stainless Steel Explosion Proof Scale with Safe Area Power 7.1 in x 7.1 in - 6.8 lb x 0.00002 lb
$10,253.10
|
Minebea Combics 2 Explosion Proof Scale with Safe Area Power 32 in x 24 in - 660 lb x 0.005 lb
$10,583.10
|
Minebea Combics 2 Explosion Proof Scale with Safe Area Power 15.8 in x 11.8 in - 141 lb x 0.0002 lb
$10,785.60
|
Minebea Combics 2 Stainless Steel Explosion Proof Scale with Safe Area Power 7.1 in x 7.1 in -13.5 lb x 0.00002 lb
$11,292.10
|
Minebea Combics 2 Explosion Proof Scale with Hazardous Area Power 32 in x 24 in - 330 lb x 0.002 lb
$11,301.80
|
Minebea Combics 2 Stainless Steel Explosion Proof Scale with Hazardous Area Power 7.1 in x 7.1 in - 6.8 lb x 0.00002 lb
$11,336.30
|
Minebea Combics 2 Explosion Proof Scale with Hazardous Area Power 32 in x 24 in - 660 lb x 0.005 lb
$11,666.30
|
Minebea Combics 2 Explosion Proof Scale with Hazardous Area Power 15.8 in x 11.8 in - 141 lb x 0.0002 lb
$11,868.80
|
Minebea Combics 2 Stainless Steel Explosion Proof Scale with Hazardous Area Power 7.1 in x 7.1 in -13.5 lb x 0.00002 lb
$12,375.30
|
|
Specifications
| 6.8 to 660 lb models |
| Model |
CIXS2
ISXBBS-3-H |
CIXS2
ISXBBS-6-H |
CIXS2
IS16EDE-HX |
CIXS2
IS34EDE-HX |
CIXS2
IS64EDE-SX |
CIXS2
S64EDE-HX |
CIXS2
IS150IGG-HX |
CIXS2
IS300IGG-HX |
| Capacity x Readability |
6.8 x 0.00002 lb |
13.5 x 0.00002 lb |
35 x 0.0002 lb |
75 x 0.0002 lb |
141 x 0.002 lb |
141 x 0.0002 lb |
330 x 0.002 lb |
660 x 0.005 lb |
| 3.1 kg x 0.01 g |
6.1 kg x 0.01 g |
16 kg x 0.1 g |
34 kg x 0.1 g |
64 kg x 1 g |
34 kg x 0.1 g |
150 kg x 1 g |
300 kg x 2 g |
| Pan Size |
7.1" x 7.1" |
7.1" x 7.1" |
15.8" x 11.8" |
15.8" x 11.8" |
15.8" x 11.8" |
15.8" x 11.8" |
32" x 24" |
32" x 24" |
| Base Design |
Stainless Steel |
Stainless Steel |
Painted |
Painted |
Painted |
Painted |
Painted |
Painted |
| Weighing Pan |
Stainless Steel Weighing Pan |
| Indicator |
CAIXS2 with 485 interface and Cable to IS-X |
| FM Approved |
Class 1,2,3,Division 1,Groups A,B,C,D,E,F.G,T4 More info |
| Base Interface |
RS485 |
| Internal Calibration |
Optional and must be ordered with the unit and is not field installable |
| Power |
Requires single YPS02-XUR for hazardous area connection or YPS02-ZKR for safe area connection |
* Hazardous area Power for USA only - for Canada Please Call (800)832-0055 or 718-336-5900
|
|
|
|
* within the 48 continental US States
|
|
|
|
|
|
|
|
