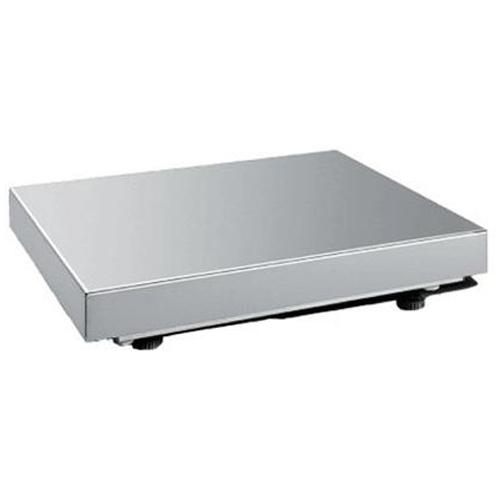

Name: Minebea IS64FEG-S1 IS Series Platforms 22 x 18, 141 x 0.0002 lb
Brand: Minebea Intec
SKU: 41424
Price: 6691.50 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

Minebea IS64FEG-S1 IS Series Platforms 22 x 18, 141 x 0.0002 lb
You won’t have to wait more than one second for a stable readout with this platform. With special menu codes activated, you can actually reduce the response time down to 800ms! more ...

Scales > Platform > Platform

Minebea IS64FEG-S1 IS Series Platforms 22 x 18, 141 x 0.0002 lb

Specifications Chart

Have Questions?

email Us

Our Staff will be glad to help

Minebea IS64FEG-S1 IS Series Platforms 22 x 18, 141 x 0.0002 lb
FREE Ground Shipping
(48 US States Only)

Price: $6,691.50

Out of Stock

Optional Accessories

View Features

Minebea Intec
SKU: IS64FEGS1

Features

Minebea IS Series Platforms

Ultra fast Response Time

You won’t have to wait more than one second for a stable readout with this platform. With special menu codes activated, you can actually reduce the response time down to 800ms!

Standard Internal Calibration

Simply press one key to calibrate the platform at any time. Internal calibration is especially useful when the scale gets moved from one location to another, or when the temperature varies considerably.

Features

BBE/CCE Models: rated IP54 EDE Models: rated IP65 FEG/IGG Models: Rated IP67
Below Scale Weighing
-For all scales < 12kg hook supplied
For FEG and IGG scales: No below scale weighing

Additional Features

When connected to Combics Indicator, feature and applications for Combics Series are available
RS485 is standard with IS (RS232 is available option)
Internal Calibration Weight
Weight stabilizes in less than 1.5 seconds, with output rates of up to 50 times per second
Use a combics 2 or Combics 3 indicator for a dual analog digital weighing solution

Dimensions
X: 22.00 Y: 18.00

Other Minebea Intec IS Series Scale Platforms

Minebea IS16EDE-H1 IS Series (ISEDE-16-DS1) Platforms 15.8 x 11.8 35 x 0.00002 lb $5,624.10	Minebea ISFEG-64-S IS Series ( IS64FEG-S) Platforms 22 x 18 141 x 0.002 lb $6,864.30	Minebea IS150IGG-H (ISIGG-150-HV1) IS Series Platforms 32 x 26 330 x 0.002 lb $7,776.00	Minebea IS150IGG-H1 IS Series (ISIGG-150-DS1) Platforms 32 x 24 330 x 0.0002 lb $8,663.40	Minebea IS300IGG-H (ISIGG-300-HV1) IS Series Platforms 32 x 24 660 x 0.005 $8,798.40
Minebea IS300IGG-H1 IS Series (ISIGG-300-DS1) Platforms 32 x 24 660 x 0.0005 lb $9,687.60	Minebea IS2CCE-S IS Series Platforms 8.5 x 8 4.8 x 0.00002 lb $3,649.50	Minebea IS06BBE-S IS Series Platforms 05.1 1.3 x 0.000002 lb $3,658.50	Minebea IS6CCE-S IS Series Platforms 8.5 x 8 13.6 x 0.0002 lb $3,847.50	Minebea IS16EDE-H IS Series Platforms 15.8 x 11.8 35 x 0.0002 $4,070.00
Minebea IS34EDE-H IS Series Platforms 15.8 x 11.8 75 x 0.0002 lb $4,495.50	Minebea IS12CCE-S IS Series Platforms 8.5 x 8 26 x 0.0002 lb $4,864.50	Minebea IS64EDE-S IS Series Platforms 15.8 x 11.8 141 x 0.0002 lb $4,945.50	Minebea IS6CCE-H IS Series Platforms 8.5 x 8 13.6 x 0.00002 lb $5,503.50	Minebea IS64EDE-H IS Series Platforms 15.8 x 11.8 141 x 0.0002 lb $5,683.50
Minebea IS64FEG-S1 IS Series Platforms 22 x 18 141 x 0.0002 lb $6,691.50 You are viewing this product

Specifications

Minebea IS Series Platforms
Model	Dimension	Capacity(Lbs.)
IS06BBE-S	05.1"	1.3 x 0.000002
IS2CCE-S	8.5" x 8"	14.8 x 0.00002
IS6CCE-H	8.5" x 8"	13.6 x 0.00002
IS6CCE-S	8.5" x 8"	13.6 x 0.0002
IS12CCE-S	8.5" x 8"	26 x 0.0002
IS16EDE-H	15.8" x 11.8"	35 x 0.0002
IS34EDE-H	15.8" x 11.8"	75 x 0.0002
IS64EDE-S	15.8" x 11.8"	141 x 0.0002
IS64EDE-H	15.8" x 11.8"	141 x 0.002
IS64FEG-S	22" x 18"	141 x 0.0002
IS150IGG-H	32" x 24"	330 x 0.002
IS300IGG-H	32" x 24"	660 x 0.005
IS16EDE-H1	15.8" x 11.8"	35 x 0.05
IS64FEG-S1	22" x 18"	141 x 0.00002
IS150IGG-H1	32" x 24"	330 x 0.0002
IS300IGG-H1	32" x 24"	660 x 0.0005
Legal For Trade	NO
Data Interface	RS485 is standard with IS (RS232 is available option)
Special Order	Allow 2 additional weeks for delivery
