Minebea IFXS4-1000LL, Stainless Steel, 39.4 x 39.4 inch, FM Approved Flatbed Scale Base, 2200 X 0.1 lb

Minebea Intec
Save valuable time. Integrate the scale into your process. Traditional floor and pit scales Immovable mechanical obstacles which hinder the process sequence. more ...
Scales > Industrial Scales > Explosion Proof Base Only
Minebea IFXS4-1000LL, Stainless Steel, 39.4 x 39.4 inch, FM Approved Flatbed Scale Base, 2200 X 0.1 lb

Specifications Chart View Full Detail Page


Call for more info
Download PDF
Minebea IFXS4-1000LL, Stainless Steel, 39.4 x 39.4 inch, FM Approved Flatbed Scale Base, 2200 X 0.1 lb

Price: $11,776.50


In Stock - Ships within 24 hours

Optional Accessories

View Features

Minebea Intec
SKU: IFXS41000LL

Features

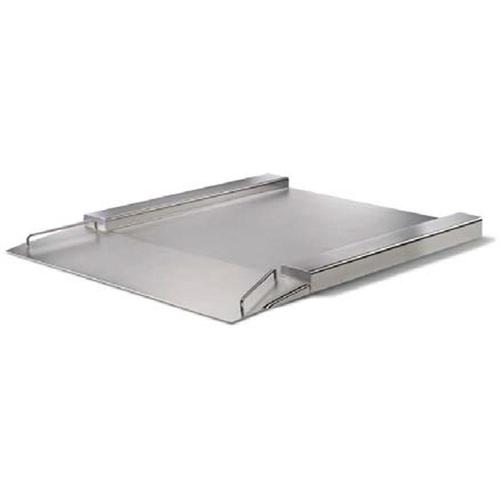

Minebea IFXS4 STAINLESS STEEL FLAT BED SCALE

Save valuable time. Integrate the scale into your process. Traditional floor and pit scales Immovable mechanical obstacles which hinder the process sequence. Floor pits can give rise to static problems. Hygiene problems because pits are inaccessible collection points for dirt and can only be cleaned at considerable expense. Scales are increasingly being integrated into production processes in order to make them more efficient. Applications requiring the weighing of large quantities and containers offer the greatest potential for savings as more costly handling is needed in such cases. Traditional floor scales are often a mechanical obstacle in the production process while flush installation in a floor pit hides a number of disadvantages. IF flat-bed scales from Minebea offer a practical, time-saving solution.

IF flat-bed scales
  • Easy handling due to ergonomic design and sophisticated equipment.
  • Ideal for clean rooms in the pharmaceutical industry,for example, as they are designed with hygiene aspects in mind.
  • Suitable for operation with aggressive substances due to the use of resistant materials.
  • Very easy wet cleaning e.g. in wet production facilities in the food industry.
  • Freely moveable due to rollers and steering drawbar.
  • Low maintenance costs and long service life due to robust construction.
  • Customization on request.
protection classes and conformities.
  • Explosion protection available as standard
  • Optionally, all models of series IFP4 and IFS4 are suitable for installation in potentially explosive atmospheres (Zones 2 and 22). ATEX: II 3 GD EEx nR II T6 T80°C

    Ex-series models IFXS4 are suitable for installation in potentially explosive atmospheres (Zones 1 and 21 as well as 2 and 22) and comply with IP69K. ATEX: II 2 GD EEx ib II C T4 T150°C

  • Display resolutions and use in legal metrology
  • Display resolutions of up to 15,000 steps are possible, in legal metrology up to 2x3000e as a multiple-range scale. Higher resolutions of up to 60,000 scale intervals for weighing in smaller quantities are available on request. The minimum initial weight can be provided with a DKD certificate if required. All scales have PTB test certificates and are suitable for use in legal metrology. Suitable scale indicators can be found in the broad range of Sartorius weighing and process indicators. On request we also supply DKD certificates and|or manufacturer’s test reports.

  • GMP | HACCP
  • The constructional details of the scales (materials, protection classes, surfaces) and the associated manufacturer’s certificates are the basis for use in the regulated industries (pharmaceutical, food and drink, cosmetics). We support integration in the validation process (IQ|OQ), through to the Factory Acceptance Test (FAT).

  • NIOSH
  • Foldable models (option T8) comply with the NIOSH requirement for cleaning by one person with minimum effort.


Dimensions
X:
39.40   Y: 39.40
Other Minebea Intec IFXS4 Stainless Steel FM Approved Flatbed Platforms

Minebea IFXS4-300GG

Stainless Steel
23.6 x 23.6 inch
Flatbed Scale Base
660 x 0.02 lb

$10,413.00

Minebea IFXS4-1000GG

Stainless Steel
23.6 x 23.6 inch
Flatbed Scale Base
2200 x 0.1 lb

$10,413.00

Minebea IFXS4-150GG
Stainless Steel 23.6 x 23.6 inch FM Approved Flatbed Scale Base 330 x 0.01 lb

$10,413.00

Minebea IFXS4-600GG

Stainless Steel
23.6 x 23.6 inch
Flatbed Scale Base
1320 x 0.05 lb

$10,413.00

Minebea IFXS4-1000IG

Stainless Steel
31.5 x 23.6 inch
Flatbed Scale Base
2200 x 0.1 lb

$10,462.50

Minebea IFXS4-150IG

Stainless Steel
31.5 x 23.6 inch
Flatbed Scale Base
330 x 0.01 lb

$10,462.50

Minebea IFXS4-600I
G
Stainless Steel
31.5 x 23.6 inch
FM Approved Flatbed Scale Base
1320 x 0.05 lb

$10,462.50

Minebea IFXS4-300IG

Stainless Steel
31.5 x 23.6 inch
FM Approved Flatbed Scale Base
660 x 0.02 lb

$10,462.50

Minebea IFXS4-150LI

Stainless Steel
39.4 X 31.5
Flatbed Scale Base
330 x 0.01 lb

$10,527.25

Minebea IFXS4-1500II

Stainless Steel
31.5 x 31.5 inch
Flatbed Scale Base
3300 x 0.1 lb

$10,728.00

Minebea IFXS4-1000II

Stainless Steel
31.5 x 31.5 inch
Flatbed Scale Base
2200 x 0.1 lb

$10,728.00

Minebea IFXS4-150II

Stainless Steel
31.5 X 31.5 inch
FM Approved Flatbed Scale Base 330 x 0.01 lb

$10,728.00

Minebea IFXS4-600II

Stainless Steel
31.5 x 31.5 inch
FM Approved Flatbed Scale Base
1320 x 0.05 lb

$10,728.00

Minebea IFXS4-300II

Stainless Steel
31.5 x 31.5 inch
FM Approved Flatbed Scale Base
660 x 0.02 lb

$10,728.00

Minebea IFXS4-1500LG

Stainless Steel
39.4 x 23.6 inch
Flatbed Scale Base
3300 X 0.1lb

$10,831.50

Minebea IFXS4-1000LG

Stainless Steel
39.4 x 23.6 inch
Flatbed Scale Base
2200 x 0.1 lb

$10,831.50

Minebea IFXS4-150LG

Stainless Steel
39.4 x 23.6 inch
Flatbed Scale Base
330 x 0.01 lb

$10,831.50

Minebea IFXS4-600LG

Stainless Steel
39.4 x 23.6 inch
Flatbed Scale Base
1320 x 0.05 lb

$10,831.50

Minebea IFXS4-1500LI

Stainless Steel
39.4 x 31.5 inch
FM Approved Flatbed Scale Base
3300 X 0.1lb

$11,146.50

Minebea IFXS4-1000LI

Stainless Steel
39.4 x 31.5 inch
FM Approved Flatbed Scale Base
2200 x 0.1 lb

$11,146.50

Minebea IFXS4-600LI

Stainless Steel
39.4 x 31.5 inch
FM Approved Flatbed Scale Base
1320 x 0.05 lb

$11,146.50

Minebea IFXS4-300LI

Stainless Steel
39.4 x 31.5 inch
FM Approved Flatbed Scale Base
660 x 0.02 lb

$11,146.50

Minebea IFXS4-1000LL
Stainless Steel
39.4 x 39.4 inch
FM Approved Flatbed Scale Base
2200 X 0.1 lb

$11,776.50

You are viewing this product

Minebea IFXS4-150LL

Stainless Steel
39.4 X 39.4 inch
Flatbed Scale Base
330 x 0.01 lb

$11,776.50

Minebea IFXS4-600LL

Stainless Steel
39.4 x 39.4 inch
FM Approved Flatbed Scale Base 1320 x 0.05 lb

$11,776.50

Minebea IFXS4-3000LL
Stainless Steel
39.4 x 39.4 inch
Flatbed Scale Base
6600 X 0.2 lb

$11,776.50

Minebea IFXS4-300LL

Stainless Steel
39.4 x 39.4 inch
FM Approved Flatbed Scale Base
660 x 0.02 lb

$11,776.50

Minebea IFXS4-1500LL

Stainless Steel
39.4 x 39.4 inch
Flatbed Scale Base
3300 X 0.1lb

$11,776.50

Minebea IFXS4-300LG

Stainless Steel
39.4 x 23.6 inch
FM Approved Flatbed Scale Base
660 x 0.02 lb

$12,035.00

Minebea IFXS4-150NL

Stainless Steel
49.2 X 39.4 inch
FM Approved Flatbed Scale Base
330 x 0.01 lb

$12,096.00

Minebea IFXS4-600NL

Stainless Steel
49.2 x 39.4 inch
Flatbed Scale Base
1320 x 0.05 lb

$12,096.00

Minebea IFXS4-300NL Stainless Steel 49.2 x 39.4 inch FM Approved Flatbed Scale Base 660 x 0.02 lb

$12,096.00

Minebea IFXS4-300NN

Stainless Steel
49.2 x 49.2 inch
Flatbed Scale Base
660 x 0.02 lb

$12,096.00

Minebea IFXS4-3000NL

Stainless Steel
49.2 x 39.4 inch
FM Approved Flatbed Scale Base
6600 x 0.2 lb

$12,096.00

Minebea IFXS4-1500NL

Stainless Steel
49.2 x 39.4 inch
FM Approved Base
3300 X 0.1lb

$12,096.00

Minebea IFXS4-150NN

Stainless Steel
49.2 X 49.2 inch
Flatbed Scale Base
330 x 0.01 lb

$12,622.50

Minebea IFXS4-1000NN

Stainless Steel
49.2 x 49.2 inch
FM Approved Flatbed Scale Base
2200 x 0.1 lb

$12,622.50

Minebea IFXS4-600NN

Stainless Steel
49.2 x 49.2 inch
FM Approved Flatbed Scale Base
1320 x 0.05 lb

$12,622.50

Minebea IFXS4-3000NN

Stainless Steel
49.2 x 49.2 inch
FM Approved Flatbed Scale Base
6600 X 0.2 lb

$12,622.50

Minebea IFXS4-150RN

Stainless Steel
59.1 X 49.2 inch
FM Approved Flatbed Scale Base
330 x 0.01 lb

$13,252.50

Minebea IFXS4-1000RN

Stainless Steel
59.1 x 49.2 inch
Flatbed Scale Base
2200 x 0.1 lb

$13,252.50

Minebea IFXS4-600RN

Stainless Steel
59.1 x 49.2 inch
FM Approved Flatbed Scale Base
1320 x 0.05 lb

$13,252.50

Minebea IFXS4-3000RN

Stainless Steel
59.1 x 49.2 inch
FM Approved Flatbed Scale Base
6600 X 0.2 lb

$13,252.50

Minebea IFXS4-300RN

Stainless Steel
59.1 x 49.2 inch
Flatbed Scale Base
660 x 0.02 lb

$13,252.50

Minebea IFXS4-1500RN

Stainless Steel
59.1 x 49.2 inch
Flatbed Scale Base
3300 x 0.1lb

$13,252.50

Minebea IFXS4-1000NL Stainless Steel 49.2 x 39.4 inch Flatbed Scale Base 2200 X 0.1 lb

$13,440.00

Minebea IFXS4-150RR

Stainless Steel
59.1 X 59.1 inch
Flatbed Scale Base
330 x 0.01 lb

$13,486.50

Minebea IFXS4-1000RR

Stainless Steel
59.1 x 59.1inch
Flatbed Scale Base
2200 x 0.1 lb

$13,486.50

Minebea IFXS4-600RR

Stainless Steel
59.1 x 59.1 inch
Flatbed Scale Base
1320 x 0.05 lb

$13,486.50

Minebea IFXS4-3000RR

Stainless Steel
59.1 x 59.1 inch
Flatbed scale Base
6600 X 0.2 lb

$13,486.50

Minebea IFXS4-300RR

Stainless Steel
59.1 x 59.1inch
Flatbed Scale Base
660 x 0.02 lb

$13,486.50

Minebea IFXS4-1500RR

Stainless Steel
59.1 x 59.1 inch
Flatbed Scale Base
3300 X 0.1lb

$13,486.50

Minebea IFXS4-150WR

Stainless Steel
78.7 X 59.1 inch
Flatbed Scale Base
330 x 0.01 lb

$13,990.50

Minebea IFXS4-600WR

Stainless Steel
78.7 x 59.1 inch
Flatbed Scale Base
1320 x 0.05 lb

$13,990.50

Minebea IFXS4-1000WR

Stainless Steel
78.7 x 59.1 inch
Flatbed Scale Base
2200 x 0.1 lb

$13,990.50

Minebea IFXS4-3000WR

Stainless Steel
78.7 x 59.1 inch
Flatbed Scale Base
6600 X 0.2 lb

$13,990.50

Minebea IFXS4-300WR

Stainless Steel
78.7 x 59.1inch
Flatbed Scale Base
660 x 0.02 lb

$13,990.50

Minebea IFXS4-1500NN Stainless Steel 49.2 x 49.2 inch Flatbed Scale Base 3300 X 0.1lb

$14,025.00

Minebea IFXS4-1500WR Stainless Steel 78.7 x 59.1 inch Flatbed Scale Base 3300 X 0.1lb

$15,545.00

Specifications

Minebea IFXS4 STAINLESS STEEL FLAT BED SCALE 1000(lbs.) x (0.05(lbs.)
IFXS4-1000GG-I 23.6 x 23.6 2220 X 0.1 1000 x 0.05 25
IFXS4-1000IG 31.5 x 23.6 2220 X 0.1 1000 x 0.05 25
IFXS4-1000II 31.5 x 31.5 2220 X 0.1 1000 x 0.05 25
IFXS4-1000LG 39.4 x 23.6 2220 X 0.1 1000 x 0.05 25
IFXS4-1000LI 39.4 x 31.5 2220 X 0.1 1000 x 0.05 25
IFXS4-1000LL 39.4 x 39.4 2220 X 0.1 1000 x 0.05 25
IFXS4-1000NL 49.2 x 39.4 2220 X 0.1 1000 x 0.05 25
IFXS4-1000NN 49.2 x 49.2 2220 X 0.1 1000 x 0.05 35
IFXS4-1000RN 59.1 x 49.2 2220 X 0.1 1000 x 0.05 35
IFXS4-1000RR 59.1 x 59.1 2220 X 0.1 1000 x 0.05 45
IFXS4-1000WR 78.7 x 59.1 2220 X 0.1 1000 x 0.05 45
IFXS4-1500II 31.5 x 31.5 3300 X 0.1 1000 x 0.05 25
IFXS4-1500LG 39.4 x 23.6 3300 X 0.1 1000 x 0.05 25
IFXS4-1500LI 39.4 x 31.5 3300 X 0.1 1000 x 0.05 35
IFXS4-1500LL 39.4 x 39.4 3300 X 0.1 1000 x 0.05 35
IFXS4-1500NL 49.2 x 39.4 3300 X 0.1 1000 x 0.05 35
IFXS4-1500NN 49.2 x 49.2 3300 X 0.1 1000 x 0.05 35
IFXS4-1500RN 59.1 x 49.2 3300 X 0.1 1000 x 0.05 35
IFXS4-1500RR 59.1 x 59.1 3300 X 0.1 1000 x 0.05 45
IFXS4-1500WR 78.7 x 59.1 3300 X 0.1 1000 x 0.05 45
Cable Platform 6m
Approvals Optionally, all models of series IFP4 and IFS4 are suitable for installation in potentially explosive atmospheres (Zones 2 and 22). ATEX: II 3 GD EEx nR II T6 T80°C
Regulatory Compliance HACCP, FDA, Class 10,000 clean rooms (US Federal Standard 209D)
Warranty Two year limited warranty
Load Cells Four hermetically sealed IP68

Optional Accessories


Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
more info
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
Minebea YBP03CIS 4-leg Base For YDH03CISUS Column
$194.75

Minebea YBP03CIS 4-leg Base For Column

Dimensions of the floor plate (LxW) 220mm x 135mm

Equipment supplied: floor –mounted column incl. fasteners (3 M4x 8 screws, screws with thread designed for wood acc. to DIN571-?6x50-A2, 4 dowels ? 8x40)

Base for installing floor-mounted column or bench stand

You can attach the base (YBP03CIS), if needed, to the bottom of the column.

At each end of the base, hook the ends of the two feet together; use the 4 Allen screws to attach the base to the column.

The illustration shows a view of the column and base from the bottom.

Minebea YPP01CWS Printer stand for YDH03CISUS column
more info
Minebea YPP01CWS Printer stand for YDH03CISUS column
Minebea YPP01CWS Printer stand for YDH03CISUS column
$336.30

Minebea YPP01CWSUS Data Printer

Features

The following can be computed/printed out using this Sartorius data printer:

  • Number of weighing operations
  • Mean value
  • Standard deviation
  • Variation coefficient
  • Minimum value/weight
  • Maximum value/weight
  • Difference between the maximum and minimum value/weight

Data are transferred either automatically or manually by pressing a key.

Built-in real-time clock

Built-in statistics program. These programs can be individually selected to meet your needs.

Counter for consecutive numbering of transactions can be activated.

High contrast LCD that shows the date or time as well as the current transaction number.

Integrated rechargeable batteries with battery level indicator.

Ultrafast print head.

Runs on the balances power, no separate power supply necessary.

Easy to change paper roll and ink ribbon cassette.

Minebea YDH03CISUS 43in Floor Mounted Column
more info
Minebea YDH03CISUS 43in Floor Mounted Column
Minebea YDH03CISUS 43in Floor Mounted Column
$275.50

43in Floor Mounted Column

Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
more info
Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
Minebea YDH01CWSUS Post mount assembly for 10 in x 10 in platforms, 13 in High
$190.00

13" Column for attaching indicator to platform for sizes 12.6" x 9.4".

  • Height: 13"
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
more info
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
Minebea YDH02CWSUS Post mount assembly for 12 in x 12 in platforms, 19 in High
$206.15

19.7" Column for attaching indicator to platform for sizes 15.7" x 11.8" and 19.7" x 15.7".

  • Height: 19.7"
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
more info
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
Minebea YDH03CWSUS Post mount assembly, for 18 in x 18 in platforms, 29 in High
$237.50

29.5" Column for attaching indicator to platform for sizes 19.7" x 15.7".

  • Height: 29.5"
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
more info
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
Minebea YDH12CWSUS Indicator Holder for Midrics DC, ED, and FE Series
$85.50

Stainless steel holder for bench top fixing, only for platform sizes 9.4" (DC), 15.7" x 11.8" (ED) and 19.7" x 15.7" (FE).

Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
more info
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
Minebea YDH02CISUS Wall Mounting for Midrics/Signum Series
$76.00

Brackets for wall mounting, stainless steel, tiltable indicator.

View Cart | Specials | Contact Us | Home | Blog | Sitemap | Store Policies | Your Account | Enter Monthy Contest

For Orders, Phone toll-free 800-832-0055
All other inquiries, please phone 718-336-5900
FAX 718-627-1313

Chat with us via WhatsApp Chat whatsapp: 718 787 8658



Scales & Equipment: Value Electronic Scales | Value Mechanical Scales | Lab / Analytical Scales | Baby Scales | Bathroom Scales | Bariatric Scales | Body Fat Monitors | Pro Body Composition Monitors | Calibration Weights | Counting Scales | Crane ScalesDeli/Food/Grocery Scales | Dynamometers | Fish/Game Scales | Floor Scales | Force Gauges | Industrial-Use Scales | Jewelry Scales | Livestock Scales"Legal for Trade" Scales | Medical Scales | Moisture Analyzers | Pallet Scales | Pocket ScalesPortable Spring Gauges | Shipping Scales  | Specialty Medical Scales | Test Stands / Force Measurement | Veterinary Scales


Manufacturers: Acculab digital scales | AND electronic scales | Best Weight mechanical scales| Detecto Physician's Scales | CAS digital scales | Chatillon/Ametek mechanical and electronic scales | DigiWeigh Economical Scales | Dillon Crane Scales, Dynamometers & Force Testing Products| Easy Weigh Legal for Trade Scales | Health O Meter Scales | Hoto Instruments | Imada Force Measurement | InScale Floor Scales | Mark-10 Force Testing | Mettler Toledo® | Minx Economical Pocket Scales | Ohaus electronic and mechanical scales | Tanita digital scales | Salter Brecknell | Sartorius Lab Balances | Seca Medical Scales | Great Gift Ideas



© 2000 2020 scalesgalore.com   All rights reserved.
Myaccount cart home Home 0
