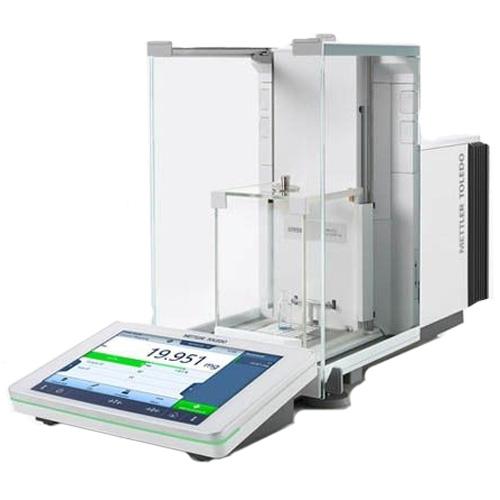

Mettler Toledo® XPR36C Comparator 32 g x 1 µg |
|
XPR full-range mass comparators offer convenient full weighing ranges coupled with short processing times to fulfill the highest demands for routine mass determination. The high performance MonoBloc™ weighing cell delivers up to 23 million points of resolution for highly precise results more ... |
Laboratory Equipment >
Analytical Balances >
Micro - 0.001 mg
|
|
|
|
Features
XPR Manual Comparators
XPR full-range mass comparators offer convenient full weighing ranges coupled with short processing times to fulfill the highest demands for routine mass determination. The high performance MonoBloc™ weighing cell delivers up to 23 million points of resolution for highly precise results. The LevelMatic™ and hanging weighing pans eliminate eccentricity influences, guaranteeing outstanding performance.
In addition, thanks to MC Link software, your results are automatically documented securely.
- Unrivaled Accuracy - The innovative LevelMatic™ and hanging weighing pans eliminate corner load effects increasing the accuracy of your weighing results.
- One-Click Certificate - The MC Link software automatically stores all your weight calibration data in a secure database. Calibration certificates can be issued with one click at the end of the weighing process.
- Secure Data Transfer - The integrated USB and Ethernet interfaces make it easy to connect to a PC or network. Data transfer to the MC Link mass calibration software is secure, fast and error-free.
- Effortless Compliance - Sophisticated monitoring of metrological relevant parameters within MC Link helps you ensure your results meet regulatory requirements.
Accurate Mass Determination - METTLER TOLEDO manual mass comparators guarantee top measurement performance and full traceability of weighing results.
Unmatched Productivity Using MC Link - Increase efficiency, data security and compliance using MC Link , the mass calibration workflow software designed for experts and novices alike.
Minimized Weighing Errors - Error-free operation through user-guidance on the color touchscreen and automated draft shield doors support a smooth and hands-free process.
- Space-saving Design - The XPR has the most compact footprint in the market and has the convenience of being able to place the main terminal wherever it is easily accessible
- Two terminal concept - The SmartView terminal above the weighing chamber provides all the functions you need as you carry out your weighing tasks
- Built-in notepad - The result notepad automatically records all task parameters and results and displays them at a glance, eliminating manual transcription.
- Simplify repititive tasks - Simply store task methods in your own method library, also suitable for methods including several samples or test series.
- Direct data transfer - Easily transfer task parameters and results to a PC or software application via USB or directly without need for additional software
Weight:
22.00 lb
|
|
Other Mettler Toledo XPR Mass Comparators
|
Specifications
Model |
XPR6U |
XPR26C |
XPR36C |
XPR56C |
XPR206CDR |
XPR226CDR |
Capacity X Readability |
6.1 g x 0.1 µg |
22 g x 1 µg |
32 g x 1 µg |
52 g x 1 µg |
81 g x 5 µg 220 g x 10 µg |
121 g x 5 µg 220 g x 10 µg |
Repeatability (Low Load) (5%) |
0.25 µg |
0.7 µg |
0.6 µg |
0.6 µg |
10 µg |
4 µg |
Repeatability (Nominal Load) |
0.4 µg |
2 µg |
2.5 µg |
4 µg |
30 µg |
25 µg |
Repeatability (typical) |
0.15 µg |
0.6 µg |
0.6 µg |
0.6 µg |
4 µg |
4 µg |
Repeatability ABA at Nominal Load |
0.4 µg |
2 µg; 20 g |
1.5 µg; 20 g |
2 µg; 50 g |
30 µg; 200 g |
20 µg; 200 g |
Repeatability ABA at Low Load |
0.25 µg |
0.7 µg; 1 g |
0.7 µg; 1 g |
0.8 µg; 2 g |
10 µg; 10 g |
5 µg; 10 g |
Electrical Weighing Range |
0 g – 6.1 g |
0 g – 22 g |
0 g – 32 g |
0 g – 52 g |
- |
- |
OIML Class |
E1; E2; F1 |
F1; E2; F2; E1; M1; M2; M3 |
F1; E2; F2; E1; M1; M2; M3 |
F1; E2; F2; E1; M1; M2; M3 |
F1; E2; F2; E1; M1; M2; M3 |
F1; E2; F2; E1; M1; M2; M3 |
Gravimetric eccentricity elimination |
Included |
Included |
Included |
Included |
- |
|
Software |
MC Link 2 Mass Calibration Software Included |
MC Link 2 Mass Calibration Software Included |
MC Link 2 Mass Calibration Software Included |
MC Link 2 Mass Calibration Software Included |
MC Link 2 Mass Calibration Software Included |
MC Link 2 Mass Calibration Software Included |
Weight |
5.3 kg |
10.1 kg |
10.1 kg |
10.1 kg |
9.4 kg |
9.4 kg |
Adjustment |
Internal / ProFACT |
Internal / ProFACT |
Internal / proFACT Advanced |
Internal / FACT |
Internal / FACT |
Internal / proFACT Advanced |
Guaranteed Repeatability |
0.25 µg |
0.001 mg |
0.001 mg |
0.002 mg |
0.01 mg |
0.01 mg |
Linearity |
4 µg |
10 µg |
12 µg |
20 µg |
0.1 mg |
0.1 mg |
Linearity ± |
- |
0.01 mg |
0.012 mg |
- |
0.1 mg |
0.1 mg |
Settling Time |
15 S |
3.5 s |
3.5 s |
3.5 s |
5 s |
5 s |
Weighing Pan Diameter |
14 mm |
35 mm |
35 mm |
35 mm |
73 mm x 78 mm |
73 mm x 78 mm |
Minimum Weight (USP, 0.1%, typical) |
0.3 mg |
1.2 mg |
1.2 mg |
1.2 mg |
8 mg |
8 mg |
Material Number(s) |
30279276 |
30355543 |
30594503 |
30355547 |
30355551 |
30594507 |
Dimensions (LxHxD) |
128 mm x 287 mm x 113 MM |
195 mm x 292 mm x 485 mm |
195 mm x 292 mm x 485 mm |
195 mm x 292 mm x 485 mm |
195 mm x 292 mm x 485 mm |
195 mm x 292 mm x 485 mm |
|
|
|
