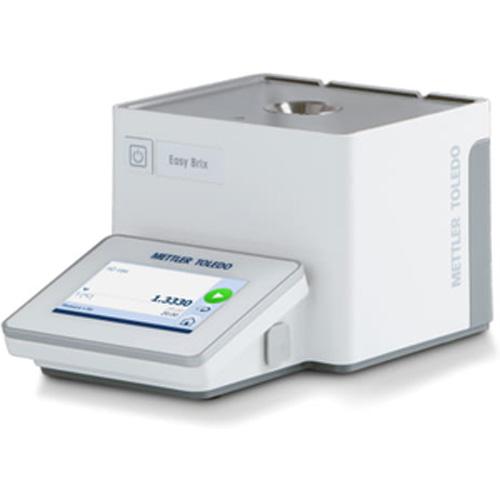

Refractometer Easy Brix
Simple, rugged, and reliable.
The Easy Brix offers fast measurements for sugar content, with automatic temperature control from 15 to 25 °C. A compact and robust design makes this instrument suitable for the lab or near the production area.
Intelligently Simple
The intuitive app-based user interface and on-screen user guidance simplify daily tasks while minimizing operator errors and training time.
Drop and Go
Measurements can be started immediately after dropping a sample, without pressing any buttons thanks to FastStart™ technology.
Reliable QC results
Measurement limits can be set for color-coded identification of accepted and rejected samples.
Automatic temperature control
The integrated Peltier temperature control quickly heats up or cools down the measurement cell, maintaining the sample reliably at the desired temperature.
Measurements within seconds
For faster processes, routine measurements can be quickly started by pressing and holding the home screen thanks to LongClick™ technology.
SimpleCheck™ Performance Verification
SimpleCheck™ certified standards ensure reliable instrument performance. The embedded workflow guides operators through the instruments performance verification
Weight:
20.00 lb
|
|
Specifications
| Model |
Bev
30468674 |
Brix
30468673 |
R40
30468672 |
| Measurement range Brix |
0 - 100 % w/w |
0 - 100 % w/w |
0 - 100 % w/w |
| Accuracy Brix |
0.05 % w/w |
0.05 % w/w |
0.05 % w/w |
| Repeatability nD (±) |
5e-005 |
| Measurement range nD |
1.32 - 1.58 |
1.32 - 1.58 |
1.30 - 1.72 |
| Accuracy nD (±)/th>
| 0.0001 |
| Temperature compensation range |
15 °C – 25 °C |
15 °C – 25 °C |
10 °C – 65 °C |
| Minimum sample volume |
50.00 mL (50 mL) |
0.20 mL (0.2 mL) |
0.20 mL (0.2 mL)) |
| Max. number of methods |
6 |
1 |
6 |
| Measurement scales |
Refractive index Sugar (Brix and more) |
Chemical, Refractive index, User-defined concentration, Sugar (Brix and more), Freezing Point |
| Color-coded result identification |
Yes |
| Automatic sample detection (FastStart™) |
No |
| Accuracy Brix % w/w |
0.05 |
| On-screen help texts |
Yes |
| Built-in Measurement Scales |
Refractive Index Brix / Sugar tables |
Chemicals and freezing point tables Refractive Index |
| Languages |
English, Italian, Russian, Polish, French, Portuguese, Bahasa Indonesia, Korean, Chinese, German, Spanish, Thai |
| Display / User interface |
4.3" capacitive display with color touchscreen |
| Connectivity |
3 x USB-A (Printer, mouse, keyboard, barcode reader) 1 x USB-B (EasyDirect PC Software) |
| PC Software |
EasyDirect Density and Refractometry PC Software |
| Dimensions (Width x Height x Depth) |
198 x 382 x 188 mm |
170 x 156 x 273 mm |
170 x 156 x 273 mm |
| Product Type |
Benchtop refractometer |
| Standard compliance |
www.mt.com/dere-norms |
| User Management |
Yes |
NO |
Yes |
| Funnel for Easy Sampling |
Yes |
NO |
NO |
| LIMS connectivity |
No |
| Main norms and standards |
GB/T 12143-2008 |
USP 831, GB/T 12143-2008 |
Chinese pharmacopoeia 0622, GBT 10786-2006, USP 831, AOAC 921.08, AOAC 970.59, OIV MA-AS2-02, AOAC 920.78, Ph. Eur. 2.2.6, OIML R 108, ASTM D4095, OIV MA-AS312-01B, GBT 5527-2010, GB/T 12143-2008, ISO 280, ASTM D1218 |
|
