Mark-10 ES-05 Manual Test Stand, 30 lb

View Full Detail Page

Download PDF
Mark-10 ES-05 Manual Test Stand, 30 lb
FREE Ground Shipping *

Price: $460.75

In Stock - Ships within 24 hours

Optional Accessories

View Features

Mark 10
SKU: ES-05

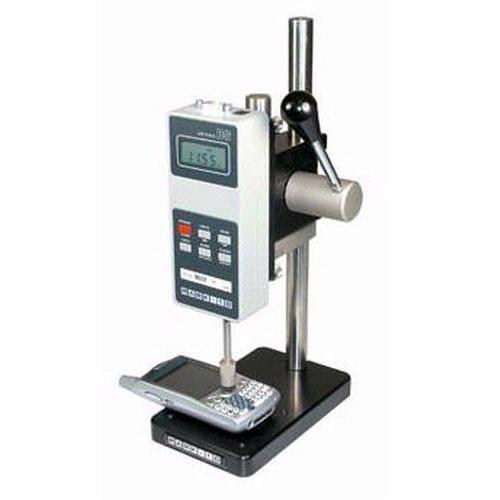

The new compact Mark-10 ES-05 test stand is designed for compression testing of up to 30 lb (150 N). Typical applications include switch contact activation testing, small spring testing, peel testing, and more. A spring-loaded lever allows for repeatable testing with up to 1.5” (38 mm) displacement. The lever mechanism can be repositioned along the length of the column, allowing this stand to be used for various sized samples. The ES05’s small footprint makes it particularly well suited to crowded workbenches, while its low weight makes it very portable for field auditing or for quick transportation to other testing areas. Use the ES05 with Mark-10 force gauges and grips to create a complete testing solution.
  • Maximum force: 30 lb [150 N] (compression only)
  • Compact with spring loaded lever mechanism
  • Economic solution for repetitive low force testing
  • Compatible with Mark-10 force gauges, accessories and grips
  • Maximum travel: 1.5 inches[38 mm]
  • Spring-loaded lever operation is convenient for repetitive testing requirements
  • Lever mechanism can be repositioned along the length of the column
  • Mounting holes for bench mounting
  • Compact size
  • Optional base plate with 25 #10-32 threaded holes for fixture mounting


Weight: 30.00 lb
Other Mark 10 ES Manual Lever Operated Test Stands

Mark-10 ES-05
Manual Test Stand
30 lb


You are viewing this product

Mark-10 ES10
Manual Test Stand
100 lb
Lever Operated


* within the 48 continental US States

Optional Accessories

Mark-10 ES-05 Base Plate
more info
Mark-10 ES-05 Base Plate
more info
Price: $75.00
In Stock
btn buy

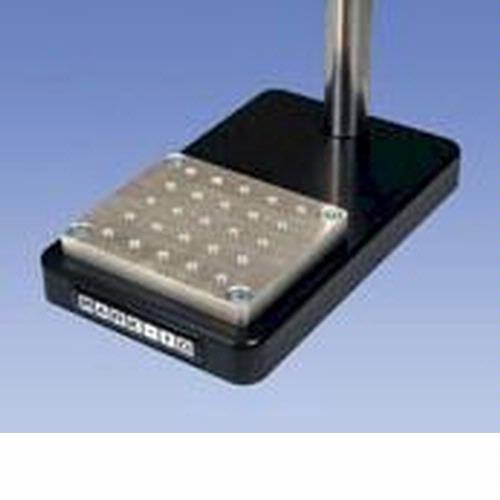

Base Plate with Matrix of Tapped Holes for Mark-10 ES-05 mechanical test stands
