LP Scale LP7650C-40 LCD Heavy Duty Crane Scale 40000 x 10 lb |
|
The LP7650 crane scale is designed to provide accurate and reliable weight measurements. It is available in 3,5, and 10 ton capacities. This crane scale has a die-casting aluminum enclosure and a high quality alloy steel load receptor. It features a H.D. fixed shackle and a H.D. rotatable hook. more ... |
Industrial Scales >
Crane Scales & Dynamometers >
Digital Crane Scales
|
|
|
|
Features
The crane scales offer durable easy-to-use weighing with smart features that take the hassle out of suspension weighing

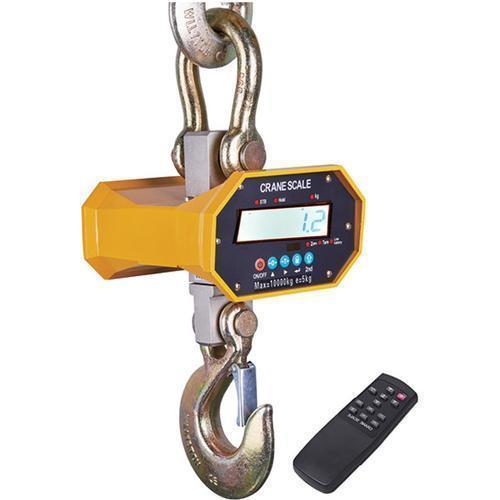

The LP7650 crane scale is designed to provide accurate and reliable weight measurements. It is available in 3,5, and 10 ton capacities. This crane scale has a die-casting aluminum enclosure and a high quality alloy steel load receptor. It features a H.D. fixed shackle and a H.D. rotatable hook. Furthermore, this compact crane scale features a 38mm 5 digits LED display and comes with an infrared remote control to allow you to operate it from a safe distance.
The scale offers HOLD function, idle mode and auto power-off function to maximize battery life, auto overload alarm at 100%F.S.+9e, tare in/tare out, and unit switching between kg and lb. This compact crane scale is suitable for a broad range of applications including industrial heavy and light weight measurement applications
Structure
- integrated pull sensor design ensures weighing accuracy and strength;
- cast aluminum alloy to ensure structural strength;
- surface shot blasting paint treatment process, strong corrosion resistance;
- front and rear sealing design to ensure moisture resistance;
- reinforced alloy steel hook assembly to ensure overload and safety performance.
Function
- zero, peel, store, accumulate
- index value switching, data retention, power saving mode
- under-power shutdown, lock weight, preset tare
- low power design for longer battery life
- infrared remote control operation
- communication interface: RS232/RS485 (optional)
- Accuracy class: ‡V
- LP7650E: 5-digit 1.5 inch LED C LP7650C: 1.6 inch LCD with backlight
- Cast aluminum alloy housing
- Power supply: AC110V~130V, built-in rechargeable battery
- With remote control
- Options: Blue-tooth, WI-FI, Zigbee
|
|
Other LP Scales LP Scale LP7650 Heavy Duty Crane Scales
|
Specifications
LED Model |
LP7650E-3 |
LP7650E-5 |
LP7650E-10 |
LP7650E-20 |
LP7650E-40 |
LCD Model |
LP7650C-3 |
LP7650C-5 |
LP7650C-10 |
LP7650C-20 |
LP7650C-40 |
Housing Material |
Aluminum |
Display |
LP7650E: 5-digit 1.5 inch LED LP7650C: 1.6 inch LCD with backlight |
Capacity x Redability |
3000 x 0.5 lb |
5000 x 1 lb |
10000 x 2 lb |
20000 x 5 lb |
40000 x 10 lb |
Legal For Trade |
- |
Tare range |
100%F.S |
Zero range |
2% F.S |
Safe overload |
130%F.S |
Units |
kg/lb switchable |
Power |
rechargable batteries or AC110V 60Hz adapter |
Ultimate overload |
400%F.S |
Overload alarm |
100%F.S + 9e |
Battery |
6V 4.5Ah |
Battery life |
>80h |
Temperature range |
-10ºC ~ +40ºC |
Adapter |
9V 1200mA |
|
|
|
|
|
|
|
