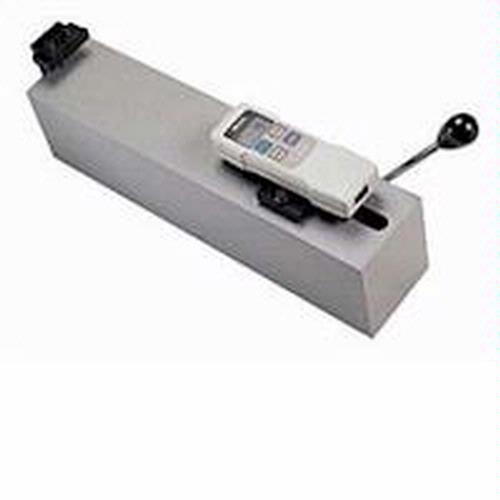

Imada PT-DPS-44 Digital Pull Tester, 20 kg x 0.01 kg |
|
The model PT-DPS is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and soldered parts. Complete with test stand, DPS gauge, wire grip and wire terminal grip more ... |
|
|
|
|
Features
The model PT-DPS is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and soldered parts. Complete with test stand, DPS gauge, wire grip and wire terminal grip. 20 x 0.01 kg
Max Load: 220 lbs
Outstanding accuracy of ±0.2%
Real time and peak mode (selectable
Newton, lb and kg units are selectable
Outputs: RS-232, Digimatic, analog
The model PT-DPS is a digital pull tester for checking the pull-off force values of electrical leads, crimped terminals, connectors, and soldered parts. Complete with test stand, DPS gauge, wire grip and wire terminal grip.
Model |
Pounds (ounces) |
Kilograms (grams) |
Newtons |
Price |
Capacity x Resolution |
PT-DPS-0.5 |
8.819 x 0.001 oz |
250 x 0.1 g |
2.452 x 0.001 N |
$2800 |
PT-DPS-1 |
17.64 x 0.01 oz |
500 x 0.1 g |
4.903 x 0.001 N |
$2800 |
PT-DPS-4 |
4.409 x 0.001 lb |
2 x 0.001 kg |
19.61 x 0.01 N |
$2800 |
PT-DPS-11 |
11.02 x 0.01 lb |
5 x 0.001 kg |
49.03 x 0.01 N |
$2800 |
PT-DPS-44 |
44.09 x 0.01 lb |
20 x 0.01 kg |
196.1 x 0.1 N |
$2800 |
PT-DPS-110 |
110.2 x 0.1 lb |
50 x 0.01 kg |
490.3 x 0.1 N |
$2800 |
PT-DPS-220 |
220.5 x 0.1 lb |
100 x 0.1 kg |
980 x 1 N |
$2800 |
Weight:
20.00 lb
|
|
