Eilon Engineering Ron2150S30 30t Wired Dynamometer for Shackles 2 in Display 60000 x 10 lb |
|
| A unique combination of a small and lightweight load cell with a large backlit 2"/50mm display. Excellent readability from a distance and a robust aluminum indicator with a fatigue rated, 5:1 safety factor load cell. more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Dynamometers
|
|
|
|
|
|
Features

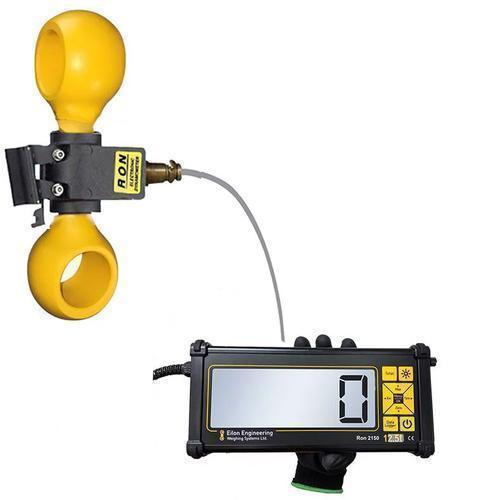

A unique combination of a small and lightweight load cell with a large backlit 2"/50mm display. Excellent readability from a distance and a robust aluminum indicator with a fatigue rated, 5:1 safety factor load cell. High accuracy load cell (0.1% of full scale) for reliable measurements Especially suited for load headroom applications the 90 degree shackles hole design reduces bending of the load cell for increased safety and accuracy. Multiple options available for increased functionality.
- Warranty: 5 years
- Portable: Lightweight and small. Available with Pelican™ carrying case.
- Highly Accurate: ± 0.1% of full range - important for early overload detection.
- Flexible: Indicator can be hand-held or attached to load cell.
- Readable: Large digits can be read from a distance.
- Excellent battery life: Up to 2000 Hours (3x AA batteries).
- Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies.
- Fatigue rated: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1 and IEC 61508. Fatigue Rated means an unlimited number of load cycles (Provided capacity is not exceeded).
- Robust: Heavy duty designs with shock absorbing mechanisms.
- Unique: Shackle holes offset 90 degrees reduce external moments for greater safety and accuracy.
- Minimal Headroom loss: Smallest on the market - important for indoor applications.
- Short delivery time: In most cases 48-72 hours.
- More than 45 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.
- Safety factor: 5:1
- Accuracy: 0.1% of full range.
- Calibration: User calibration. Initial factory calibration, fully traceable (certified).
- Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.
- Proof Load: Each system proof-loaded to 200% of capacity (certified) up to a test force of 400t.
- Display: 5/6 digits, 2" (50mm) liquid crystal display. Overload warnings (100%/130%), Max (peak hold), low battery indication, Gross/Net. Refresh rate 1Hz.
- Sampling Rate: 200 per second.
- Functions: Zero. Tare. Battery charge level indication. Low battery warning. Max. (peak hold). Sleep mode, wakes automatically when loaded.
- Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons.
- Housing: Aluminum indicator, ABS load cell.
- Temperature Range:
- Load cell: -15°F to +175°F (-25°C to +80°C).
- Indicator: -4°F to +158°F (-20°C to +70°C).
- Environmental: IP65 (Optional IP67 Load Cell).
OPTIONS - Please Call 718-336-5900 for more Info
- 1 or 2 user-adjustable set points
- Additional 0.5"/12mm LCD display with cable connection to indicator or wireless
- Additional 1"/25mm LCD display with cable connection to indicator or wireless
- Additional 2"/50mm LCD display with cable connection to indicator or wireless
- Additional 5"/125mm LED display with cable connection to indicator or wireless
- Additional extension cable in 15ft/5m increments
- Analog output: 0 to 3V
- Analog output: 4 to 20 mA
- Robust sealed carrying case: Pelican or equivalent.
- Dampened display for unstable load
- Automatic/Manual Data Logger - Up to 50,000 measurements
- IP 67 load cell with special off-shore capability
- Longer extension cable in 15ft/5m increments
- Number of measurements per second: 1, 2, 3, factory set
- Real-time clock: date, hour, minute, second adds time stamp to RS-232 output
- Rechargeable batteries with an external charger
- Rope falls multiplier, user selectable
- RS-232 - continuous or on demand data output, user-selectable
- RS-485 - continuous or on demand data output, user-selectable
- Totalizer
- Totalizer with Data Logging
- Wireless communication to additional display or PC
- USB
Weight:
17.60 lb
|
5 Year Manufacture Warranty
|
Other Eilon Engineering Ron 2150S Wired Dynamometer for Shackles with 2 inch Display
Ron2150S005
0.5t Wired Dynamometer for Shackles 2 in Display 1000 x 0.2 lb
$2,759.89
|
Ron2150S01
1t Wired Dynamometer for Shackles 2 in Display 2000 x 0.5 lb
$2,766.12
|
Ron2150S02
2t Wired Dynamometer for Shackles 2 in Display 4000 x 1 lb
$2,823.97
|
Ron2150S03
3t Wired Dynamometer for Shackles 2 in Display 6000 x 1 lb
$2,833.76
|
Ron2150S05
5t Wired Dynamometer for Shackles 2 in Display 10000 x 2 lb
$2,864.02
|
Ron2150S10
10t Wired Dynamometer for Shackles 2 in Display 20000 x 5 lb
$2,969.04
|
Ron2150S12
12.5t Wired Dynamometer for Shackles 2 in Display 25000 x 5 lb
$3,170.18
|
Ron2150S15
15t Wired Dynamometer for Shackles 2 in Display 30000 x 5 lb
$3,228.03
|
Ron2150S20
20t Wired Dynamometer for Shackles 2 in Display 40000 x 10 lb
$3,268.08
|
Ron2150S25
25t Wired Dynamometer for Shackles 2 in Display 50000 x 10 lb
$3,404.25
|
Ron2150S30
30t Wired Dynamometer for Shackles 2 in Display 60000 x 10 lb
$3,438.96
You are viewing this product
|
Ron2150S40
40t Wired Dynamometer for Shackles 2 in Display 80000 x 20 lb
$3,628.53
|
Ron2150S55
55t Wired Dynamometer for Shackles 2 in Display 110000 x 20 lb
$3,834.12
|
Ron2150S85
85t Wired Dynamometer for Shackles 2 in Display 170000 x 50 lb
$4,895.00
|
Ron2150S100
100t Wired Dynamometer for Shackles 2 in Display 200000 x 50 lb
$7,384.33
|
Ron2150S125
125t Wired Dynamometer for Shackles 2 in Display 250000 x 50 lb
$7,506.26
|
Ron2150S150
150t Wired Dynamometer for Shackles 2 in Display 300000 x 50 lb
$9,627.13
|
Ron2150S200
200t Wired Dynamometer for Shackles 2 in Display 400000 x 100 lb
$13,319.74
|
Ron2150S250
250t Wired Dynamometer for Shackles 2 in Display 500000 x 100 lb
$13,657.94
|
Ron2150S300
300t Wired Dynamometer for Shackles 2 in Display 600000 x 100 lb
$18,905.38
|
|
Specifications
| Model |
Capacity in Metric Tons |
Capacity x Readability |
Type |
Weight |
Matching anchor shackle size |
Carrying Case |
Cable length |
| Ron2150S005 |
0.5t |
1000 x 0.2 lb |
Wired |
11 LB |
1/2 in- 7/16 in - 3/8 in |
Optional |
16ft / 5m |
| Ron2150S01 |
1t |
2000 x 0.5 lb |
Wired |
11 LB |
1/2 in- 7/16 in - 3/8 in |
Optional |
16ft / 5m |
| Ron2150S02 |
2t |
4000 x 1 lb |
Wired |
11 LB |
1/2 in- 7/16 in - 3/8 in |
Optional |
16ft / 5m |
| Ron2150S03 |
3t |
6000 x 1 lb |
Wired |
11 LB |
5/8 in - 3/4 in |
Optional |
16ft / 5m |
| Ron2150S05 |
5t |
10000 x 2 lb |
Wired |
11 LB |
3/4 in - 5/8 in |
Optional |
16ft / 5m |
| Ron2150S10 |
10t |
20000 x 5 lb |
Wired |
13.2 LB |
1 1/4 in- 1 1/8 in - 1 in |
Optional |
16ft / 5m |
| Ron2150S12 |
12.5t |
25000 x 5 lb |
Wired |
13.2 LB |
1 1/4 in- 1 1/8 in - 1 in |
Optional |
16ft / 5m |
| Ron2150S15 |
15t |
30000 x 5 lb |
Wired |
15.4 LB |
1 3/8 in - 1 1/4 in - 1 1/8 in |
Optional |
16ft / 5m |
| Ron2150S20 |
20t |
40000 x 10 lb |
Wired |
15.4 LB |
1 3/8 in |
Optional |
16ft / 5m |
| Ron2150S25 |
25t |
50000 x 10 lb |
Wired |
17.6 LB |
1 1/2 in |
Optional |
16ft / 5m |
| Ron2150S30 |
30t |
60000 x 10 lb |
Wired |
17.6 LB |
1 1/2 in |
Optional |
16ft / 5m |
| Ron2150S40 |
40t |
80000 x 20 lb |
Wired |
28.6 LB |
2 in - 1 3/4 in |
Optional |
32ft / 10m |
| Ron2150S55 |
55t |
110000 x 20 lb |
Wired |
28.6 LB |
2 in |
Optional |
32ft / 10m |
| Ron2150S85 |
85t |
170000 x 50 lb |
Wired |
50.6 LB |
2 1/2 in |
Included |
32ft / 10m |
| Ron2150S100 |
100t |
200000 x 50 lb |
Wired |
72.6 LB |
CROSBY No. 2160 125t |
Included |
49ft / 15m |
| Ron2150S125 |
125t |
250000 x 50 lb |
Wired |
79.2 LB |
CROSBY No. 2160 125t |
Included |
49ft / 15m |
| Ron2150S150 |
150t |
300000 x 50 lb |
Wired |
154 LB |
CROSBY No. 2160 200t |
Included |
49ft / 15m |
| Ron2150S200 |
200t |
400000 x 100 lb |
Wired |
154 LB |
CROSBY No. 2160 200t |
Included |
49ft / 15m |
| Ron2150S250 |
250t |
500000 x 100 lb |
Wired |
330 LB |
CROSBY No. 2140 250t or No. 2160 300t |
Included |
49ft / 15m |
| Ron2150S300 |
300t |
600000 x 100 lb |
Wired |
330 LB |
CROSBY No. 2160 300t |
Included |
49ft / 15m |
|
|
|
|
* within the 48 continental US States
|
|
|
|
|
|
|
|
