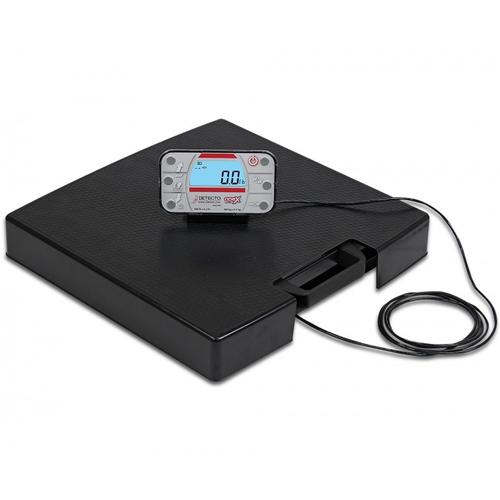

Detecto APEX-RI Physician Scale With Remote Display Legal For Trade 600 x 0.1 lb |
|
| APEX-RI series portable scales with remote indicators feature an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H, high 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high clinical-blue LCD weight readouts, BMI calculation, 6 ft/1.8 m cable from the scale base to indicator, integral carrying handle, textured platform surface, more ... |
|
Medical Equipment >
Medical Scales >
Portable Physician Scales
|
|
|
|
|
|
Features
DETECTO’s APEX-RI series portable scales with remote indicators feature an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H, high 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high clinical-blue LCD weight readouts, units locking into kilograms or pounds, BMI calculation, 6 ft/1.8 m cable from the scale base to indicator, integral carrying handle, textured platform surface, AC or 12 AA battery power (AC adapter included on some models), 1 RS232 serial port, 1 micro USB-B port, and HL7 IEEE 11073 compliance. They are ready to use right out of the box with no assembly needed. Wi-Fi/Bluetooth models are available (select -C models) with the protocol available upon request.
- 0.75-Inch-High LCD Weight Readouts
- Units Locking into Pounds or Kilograms
- Wi-Fi / Bluetooth Models Available for Wireless EMR/EHR
- Mother / Baby Function Factors the Weight of Infants and Toddlers Held by an Adult
- 12 AA Batteries (not included) or AC Adapter (included on some models)
- 1 RS232 Serial Port and 1 Micro USB-B Port
- 6 Easy-to-Use Buttons
- 6 ft/2 m Cable from Scale Base to Indicator
- 600 lb x 0.2 lb / 300 kg x 0.1 kg Capacity
- Bluetooth (BLE) / Wi-Fi Available (models -C)
- BMI Calculation
- HL7 IEEE 11073 Compliant (standard)
- International Power Adapter (included on -AC models)
- Lift-Off Platform Cover
- Platform Size: 17 in W x 17 in D x 2.75 in H
- Portable With Integral Carrying Handle
- Smart Phone Style High-Tech Weight Indicator
- Textured Platform Surface for Weighing Traction and User Safety
- Wall-Mount or Desktop Mounting Bracket Included
DETECTO’s apex® series APEX-RI model portable scales feature an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex® scales offer a high 600 lb x 0.2 lb / 300 kg x 0.1 kg capacity, 0.75-inch-high clinical-blue LCD weight readouts, BMI calculation for checking nutritional status, AC or 12 AA battery power (AC adapter included on some models), (1) RS232 serial port, (1) micro USB-B port, and HL7 IEEE 11073 compliance. They are ready to use right out of the box in just a few seconds with no assembly needed.
- These digital flat scales let the patient weighing come to you!
- Mother/Baby function factors the weight of infants and toddlers held by an adult
- Thanks to the apex® scale’s carrying handle, compact size, and minimal weight it can easily be transported wherever needed.
- Lift-Off Platform Cover These digital flat scales let the patient weighing come to you!
- Ready To Use Right Out of the Box (No Assembly Required)
- Wall-Mount or Desktop Mounting Bracket Included The display can be set up separately from the base and read from its position on the wall or desk making it suitable for stationary or mobile use.
- International Power Available AC adapter included on all -AC models with multi-pin-input, snap-in choices for US, UK, EU, Australia, and Japan. DETECTO part number 6800-1047: 100-240VAC/12VDC at 1 amp.
Weight:
25.00 lb
|
|
Other Detecto APEX-RI Physician Scale With Remote Display
|
Specifications
| Model |
APEX-RI |
APEX-RI-AC |
APEX-RI-C |
APEX-RI-C-AC |
| Capacity x Readability |
600 lb x 0.1 lb
270 kg x 0.05 kg |
| Legal For Trade |
Accuracy class: III CC# 21-079 |
500 lb x 0.1 lb
225 kg x 0.05 kg |
| Platform Size |
17 in W x 17 in D x 2.75 in H
43 cm W x 43 cm D x 7 cm H |
| Weighing/ Height Units |
Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm
(lb or kg selected upon initialization at start-up) |
| Power |
12 AA cell Alkaline, Ni-Cad or NiMH batteries (not included) or optional 100-240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power adapter (DETECTO part number 6800-1047 with multi-pin-input, snap-in choices for US, UK, EU, Australia, and Japan) |
| AC adapter |
NOT Include |
Include |
NOT Include |
Include |
| Connectivity |
RS232, micro USB-B |
RS232, micro USB-B |
Bluetooth/Wi-Fi, RS232, micro USB-B |
Bluetooth/Wi-Fi, RS232, micro USB-B |
| HL7 IEEE 11073 compliant (standard) Wi-Fi/Bluetooth BLE models also availab |
| Keypad |
Mechanical switch type with 6 buttons (Power, Lock/Release, Zero, BMI/Enter, Up Arrow, Down Arrow) |
| Cable Length |
6 ft / 1.8 m (from scale base to indicator) |
| Display Type |
Dual-row, seven-segment, clinical-blue LCD |
| Number of Characters |
Weight: 5 digit, 0.75 in (19 mm) high
Height/BMI: 4 digit, 0.4 in (10 mm) high |
| Digital Filtering |
StableSENSE® adjustable filtering |
| Operating Environment |
Operating Temperature Range: 14 to 104 ºF (-10 to +40 ºC)
Humidity: 0 to 90% non-condensing |
| Net Weight |
25 lb / 11 kg |
| Shipping Weigh |
31 lb / 14 kg |
| Country of Origin |
USA |
| UPC Code |
809161304107 |
809161304206 |
809161322408 |
809161322507 |
|
|
|
|
|
| |
|
|
|
|
|
