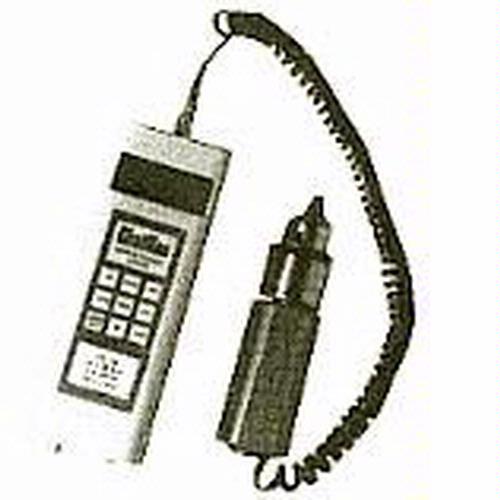

The Chatillon DTG digital torque gauge accurately measures torque for virtually any application. Samples at 4500 samples per second. Bi-diurectional RS232 and analog output. Capacity x readability: 50 x 0.02 lb-in
The DTG digital torque gauge accurately measures torque for virtually any application, from wrench calibration to packaging cap removal. Samples at 4500 samples per second with ±0.5% of full scale accuracy. Captures initial peak and maximum torque in memory for either direction. Measures in lb-in, N-cm or N-M units (DTG-3 in oz-in) with both RS232 and analog output.
Accuracy: ±0.5% of full scale at ±1 LSC (least significant count)
Tare Capacity: 10% of full scale in English Units Mode
Temperature: Operating: 50°F to 100°F (10°C to 40°C); Stability: 0.03% per °F
Weight: Gauge 1 lb, Torque head: 1-1/4 lb, Shipping weight: 6 lbs.
- Bi-directional RS232 data communication
- User selectable baud rate from 300 to 19,200
- Analog output: 0 to ±2.0 Vdc full scale, accurate to +0.018 volt
- 12 pin Hirose design output connector
- Nine-key membrane keypad
- 1/2 high LCD display with 4 digits for force value
- Battery operation (8 hour rechargeable) or AC (110 Vac or 220Vac)
Standard Accessories with Chatillon DTG torque gauges:
Battery charger, Allen wrench, chuck key, 1/4 hex blade, two square drives and a cushioned carrying case. NOTE: DTG3 & DTG-12 are supplied with 1/4 and 3/8 drives; DTG-50 & DTG-100 are provided with 3/8 and 1/2 square drives.
|
Model |
Capacity x Graduation |
*Safe Overload |
Price |
|
DTG-3 |
50 x 0.02 oz-in |
75 oz-in |
$1770 |
|
0.35 x 0.0002 N-M |
|
35 x 0.02 N-cm |
|
DTG-12 |
12 x 0.01 lb-in |
18 lb-in |
$1770 |
|
1.25 x 0.001 N-M |
|
125 x 0.1 N-cm |
|
DTG-50 |
50 x 0.02 lb-in |
75 lb-in |
$1770 |
|
5 x 0.002 N-M |
|
500 x 0.2 N-cm |
|
DTG-100 |
100 x 0.05 lb-in |
150 lb-in |
$1770 |
|
10 x 0.005 N-M |
|
1000 x 0.5 N-cm |
*safe overload=maximum load with no mechanical damage (display blanks at 110% capacity)
Weight:
6.00 lb
