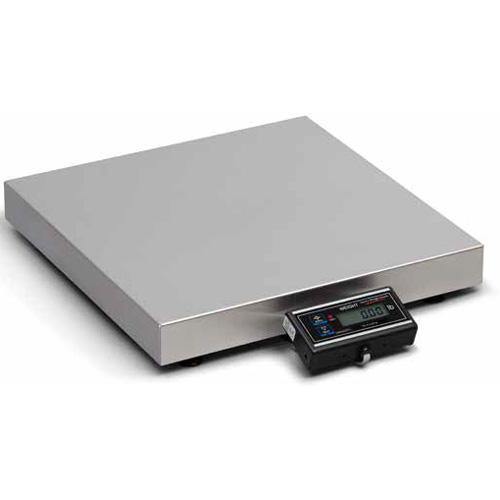

Avery Weigh-Tronix 7885 AWT05-508659 Legal for Trade 18 x 18 Shipping Scale 150 lb x 0.05 lb |
|
| The 7885 is a low profile shipping scale suitable for large and oversized items where the display needs to be remote from the scale. This parcel scale comes standard with a six digit LCD remote display on a seven foot cable, allowing you to mount the display wherever needed.] more ... |
|
Retail Storefront >
Laundromat Scales >
Laundromat Scales
|
|
|
|
|
|
Features
The 7885 is a low profile shipping scale suitable for large and oversized items where the display needs to be remote from the scale. This parcel scale comes standard with a six digit LCD remote display on a seven foot cable, allowing you to mount the display wherever needed.
Compatible With UPS, DHL, and FedEx
The low profile 7885 is a simple to use, durable, accurate and reliable, 18” x 18” bench base ideal for conveyor lines.
The remote display can be placed in a convenient location to allow the user to view the weight, zero the scale or send weight data. This NTEP / Canadian approved scale fits into any operation as a stand-alone scale, interfaced to shipping manifest software or receiving station.
Designed with a hard wearing stainless steel weight platter and a rugged powder coated, carbon steel base frame that offers adequate protection to the centrally mounted aluminum analog load cell.
Supplied with an easy to use six digit LCD display that is housed in an extruded aluminum enclosure that can be either front mounted or pole mounted to the base.
A range of emulation protocols are available within the scale to allow you to quickly select the correct compatible communication protocol to interface with a wide range of third party shipping software programs or host devices. This will be communicated through a single serial RS232, port found at the rear of the base.
Weight:
23.00 lb
|
|
Other Avery Weigh Tronix 7880 Shipping Scales 18 x 24
|
Specifications
| Model |
7880
AWT05-508659 |
7880
AWT05-508660 |
| Capacity x Readability |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
| 60 kg x 0.02 kg |
60 kg x 0.02 kg |
| Platter Size |
18" x 18" |
| Legal For Trade |
United States: NTEP approved for use in Class III operations, CC #02-069 |
| Canada Weights and Measures approval CC # AM-5507 Rev1 |
| Computer Interface |
1x RS232 (9 way female D Type connector ) positioned on the rear of the base |
| Platter Type |
Stainless steel weight platter |
Stainless Steel Ball Top |
| Display Type |
Six digit, ½” high LCD display housed in an extruded enclosure with a 7 foot cable, connected via RJ 45 connector on the rear of the scale |
| Display Bracket Options |
Standard front mounted, using velcro strips to attach the remote display to base A 12” high pole mounted display can be supplied as an optional extra |
| Remote Display Housing Sizes |
8” x 3” x 1.5” |
| Number of Displays Allowed |
1 |
| Base Construction |
Hard wearing, powder coated, 7 gauge, carbon steel weigh bridge and base plate, aluminum NTEP approved analog load cell |
| Feet |
Lockable adjustable feet, 1” diameter with up to 1” of height adjustment |
| Power |
120 VAC (+10% -15%), 60 Hz, standard 3-wire ground. |
| Operating Environment |
Temperature: 42° F to 104° F (5° C to 40° C) Relative Humidity: 10 to 95% (non-condensing) |
| Operational Keyss |
ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference TEST: Runs a diagnostic test to ensure scale is fully functional and allows a real-time view of internal settings |
| Units of Measure |
lb or kg (lb default)” |
| Configurable Selections |
Capacity, resolution, lb or kg, filters, baud rates, protocols, auto printout, scale or post classifier Default configuration is as postal weight classifier |
| Calibration |
2 point calibration process (zero and span capacity) Field calibration can be carried out by using less than full capacity weights Gravity compensation to allow the local gravity to be entered for where the scale is to be used |
| Internal Resolution |
1 part in 120,000 |
| Self-Diagnostics |
2 level diagnostics: front panel display test or full service diagnostics (Display, RAM, ROM, input/output & high resolution x10 division test) |
| Supported Protocols |
Standard NCI default with field configurable settings of 8213, 3835, SMA, with Auto Weight Send (1200 – 19.2K baud range) Transmits weight and scale status whenever ASCII “W” is sent by a remote device |
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
|
