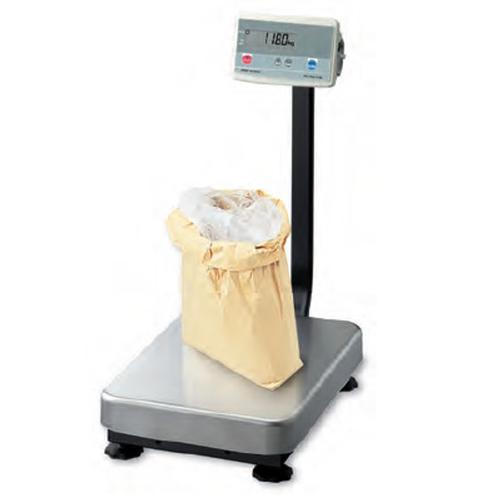

AND Weighing FG-60KAM Platform Scale, 150 x 0.01 lb

Flexible internal software settings, AC or battery operation, stainless steel pan and moisture protected load cell, optional RS232, weighs in lbs/kgs. more ...
Scales > Industrial Scales > Bench Scales
AND Weighing FG-60KAM Platform Scale, 150 x 0.01 lb

View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

AND Weighing FG-60KAM Platform Scale, 150 x 0.01 lb

Price: $405.00


Available to Ship


Optional Accessories

View Features

AND Weighing
SKU: FG-60KAM

Features

The new A&D Weighing FG-K Series industrial bench scales combines fast weighing response time with accurate measurement to suit any weighing application.

  • Three Weighing Fesolutions: Normal (1/3000), High (1/6000 for 30 kg & 60 kg weighing capacity) and higher resolution (1/12000 for 60 kg and 1/15000 for 30 kg and 150 kg weighing capacity).
  • Counting Function: Useful in piece counting applications with sample size of 5, 10, 20, 50 and 100 pieces for unit weight registration.
  • Comparator Function: HI / OK / LO comparator indication and optional relay output (FG-24) for checkweighing applications
  • Calibration Function: Simple calibration with external calibration weight
  • Auto Power Off function: Saves power consumption by automatically switching itself off when the scale displays zero for approximately 5 minutes
  • Low Power Supply Indication: Alerts user to check AC power supply "L1" or batteries "Lb0"
  • Filtering Function: Filtering levels of slow, normal and fast are selectable to suit environmental conditions
  • Leveling Feet and Bubble: Easy to adjust the level of the scale for accurate weighing
  • Optional RS-232C and Comparator Output: Easy to connect peripherals such as printer, comparator light and computer for weighing system applications.
  • AC or battery operation
  • Stainless steel weigh pan
  • Selection of lb / kg via push button
  • Full scale push button tare
  • Easy to operate anywhere
  • Rugged, heavy duty construction -- built to last
  • 2 year manufacturers warranty
  • NTEP Approved, Class III Legal for Trade (non-NTEP high resolution models available, see below)
Model FG-30KBM FG-60KBM FG-150KBM FG-30KAM FG-60KAM FG-150KAM FG-60KAL FG-150KAL FG-200KAL
Capacity X Readability 60 x 0.005 lb 150 x 0.01 lb 300 x 0.02 lb 60 x 0.005 lb 150 x 0.01 lb 300 x 0.02 lb 150 x 0.01 lb 300 x 0.02 lb 400 x 0.02 lb
30 x 0.002 kg 60 x 0.005 kg 150 x 0.01 kg 30 x 0.002 kg 60 x 0.005 kg 150 x 0.01 kg 60 x 0.005 kg 150 x 0.01 kg 200 x 0.01 kg
960 x 0.1 oz 2400 x 0.2 oz 4800 x 0.5 oz 960 x 0.1 oz 2400 x 0.2 oz 4800 x 0.5 oz 2400 x 0.2 oz 4800 x 0.5 oz 6400 x 0.5 oz
Legal for Trade FG-30KBM-N FG-60KBM-N FG-150KBM-N FG-30KAM-N FG-60KAM-N FG-150KAM-N FG-60KAL-N FG-150KAL-N FG-200KAL-N
Capacity X Readability 60 x 0.02 lb 150 x 0.05 lb 300 x 0.1 lb 60 x 0.02 lb 150 x 0.05 lb 300 x 0.1 lb 150 x 0.05 lb 300 x 0.1 lb 400 x 0.1 lb
30 x 0.01 kg 60 x 0.02 kg 150 x 0.05 kg 30 x 0.01 kg 60 x 0.02 kg 150 x 0.05 kg 60 x 0.02 kg 150 x 0.05 kg 200 x 0.05 kg
960 x 0.5 oz 2400 x 1 oz 4800 x 2 oz 960 x 0.5 oz 2400 x 1 oz 4800 x 2 oz 2400 x 1 oz 4800 x 2 oz 6400 x 2 oz
No. of samples 5 (can be changed to 10, 20, 50 or 100 ) pieces
Max. counts 120,000 pcs 96,000 pcs 120,000 pcs 120,000 pcs 96,000 pcs 120,000 pcs 96,000 pcs 120,000 pcs 160,000 pcs
Min. unit weight 0.25 g 0.625 g 1.25 g 0.25 g 0.625 g 1.25 g 0.625 g 1.25 g 1.25 g
Repeatability
(Std. deviation)
0.05 kg 0.01 kg 0.02 kg 0.05 kg 0.01 kg 0.02 kg 0.01 kg 0.02 kg 0.02 kg
Linearity error 0.01 kg 0.02 kg 0.05 kg 0.01 kg 0.02 kg 0.05 kg 0.02 kg 0.05 kg 0.05 kg
Sensitivity drift 20 ppm /C (10 °C~30 °C / 50 °F~86 °F)
Display 7 segment LCD display (Character height 26 mm)
Display update 10 times per second
Operating temp —10 °C~40 °C / 14 °F~104 °F, less than 85% RH (no condensation)
Power supply AC adapter or C size (R14P / LR14) x 4 batteries
Battery operating Approximately 150 hours with alkaline dry cell battery
Weighing pan size 300 x 380 mm / 11.8 x 15.0 inches 390 x 530 mm / 15.4 x 20.9 inches
Dimension 380(W) x 464(D) x 118(H)mm 300(W) x 624(D) x 781(H)mm 390(W) x 771(D) x 781(H) mm
Weight 9.7 kg 11.2 kg 16.4 kg
Calibration weight
(Factory setting)
30 kg / 60 lb 60 kg / 150 lb 150 kg / 300 lb 30 kg / 60 lb 60 kg / 150 lb 150 kg / 300 lb 60 kg / 150 lb 150 kg / 300 lb 200 kg/400 lb
Other AND Weighing Weighing FG-K Platform Scales -non-NTEP
AND Weighing FG-30KBM Platform Scale, 60 x 0.005 lb
FG-30KBM
Platform Scale
60 x 0.005 lb

$383.40
AND Weighing FG-60KBM Platform Scale, 150 x 0.01 lb
FG-60KBM
Platform Scale
150 x 0.01 lb

$388.80
AND Weighing FG-30KAM Platform Scale, 60 x 0.005 lb
FG-30KAM
Platform Scale
60 x 0.005 lb

$399.60
AND Weighing FG-60KAM Platform Scale, 150 x 0.01 lb
FG-60KAM
Platform Scale
150 x 0.01 lb

$405.00

You are viewing this product
AND Weighing FG-150KBM Platform Scale, 300 x 0.02 lb
FG-150KBM
Platform Scale
300 x 0.02 lb

$415.80
AND Weighing FG-60KAL Platform Scale, 150 x 0.01 lb
FG-60KAL
Platform Scale
150 x 0.01 lb

$453.60
AND Weighing FG-150KAM Platform Scale, 300 x 0.02 lb
FG-150KAM
Platform Scale
300 x 0.02 lb

$507.40
AND Weighing FG-200KAL Platform Scale, 400 x 0.02 lb
FG-200KAL
Platform Scale
400 x 0.02 lb

$529.20

Optional Accessories


AND Weighing FV-05 AC Adaptor, 110V
more info
AND Weighing FV-05 AC Adaptor, 110V
$29.00

110V AC adaptor for AND Weighing FG-K series platform scales
AND Weighing FG-23 RS-232C Interface for FG-K Series Scales
more info
AND Weighing FG-23 RS-232C Interface for FG-K Series Scales
$76.26

AND Weighing FG-23 RS-232C Interface for FGK Series Scales
AND Weighing FG-24 Comparator/Setpoint Relay Outputs
more info
AND Weighing FG-24 Comparator/Setpoint Relay Outputs
$95.20

Comparator/Setpoint relay outputs for AND Weighing FG-K series platform scales
AND Weighing FG-25 Display Wall Mount Bracket
more info
AND Weighing FG-25 Display Wall Mount Bracket
$87.42

Display wall mount bracket for AND Weighing FG-K series platform scales
AND Weighing KO:WW9-7 : RS-232C Cable D-Sub 9 pin
more info
AND Weighing KO:WW9-7 : RS-232C Cable D-Sub 9 pin
$51.15

A&D part # KO:WW9/7 - RS-232C Cable to D-Sub 9 pin. Cable length 6 feet. Fits the following A&D models: FS, FG, HV, HV-G, HW-G, HV-WP, HW-WP, Ad-4326, AD-4327 Note - ANDs user manual might reference the serial RS232 cable part number AX-KO1786-200 for the FG bench scale as "FG to D-Sub 9 pin computer / RS-232C cable, 2m" but AND Weighing USA uses part number KO:WW9/7 instead of AX-KO1786-200
AND Weighing FV-06 AC Adaptor, 220V
more info
AND Weighing FV-06 AC Adaptor, 220V
$51.15

AND Weighing FV-06 AC Adaptor, 220V
