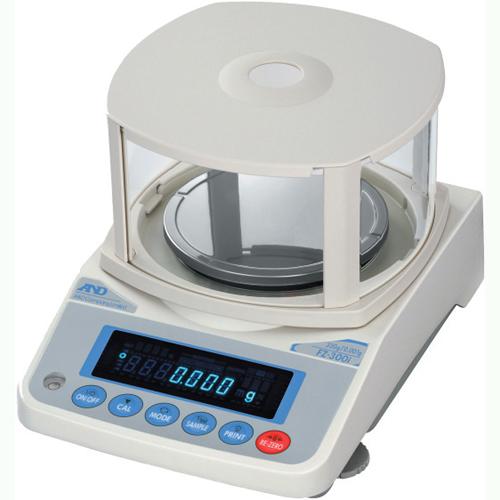

AND FX-300i Precision Balance 320 x 0.001 g

The And-FX300i delivers superior precision with advanced weighing technology. Its compact design and fast stabilization time make it perfect for laboratories. Order now for accurate and efficient performance! more ...
Scales > Laboratory > Basic
AND FX-300i Precision Balance 320 x 0.001 g

Specifications Chart View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

AND FX-300i Precision Balance 320 x 0.001 g
FREE Ground Shipping
(48 US States Only)

Price: $683.75


Available to Ship


Optional Accessories
AND Weighing FXi-02 USB interface with cable FXi--Series AND Weighing FXi-02 USB interface with cable FXi--Series , $89.25
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series , $285.60
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series , $319.20
AND Weighing FXi-10 Small breeze break 3.4 in for FXi--Series AND Weighing FXi-10 Small breeze break 3.4 in for FXi--Series , $88.35
AND Weighing FXi-11 Large breeze break 7.9 in for FXi--Series AND Weighing FXi-11 Large breeze break 7.9 in for FXi--Series , $131.75
AND Weighing FXi-12 Animal weighing pan for FZ Series AND Weighing FXi-12 Animal weighing pan for FZ Series , $264.60
AND Weighing TB:648 120V/220V AC Adapter AND Weighing TB:648 120V/220V AC Adapter , $46.50
A&D Weighing AX-USB-2920-9P  Plugable RS-232  to USB DB9 Converter A&D Weighing AX-USB-2920-9P Plugable RS-232 to USB DB9 Converter , $60.45
AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series , $20.00
AND AD-8920A Universal Remote Display AND AD-8920A Universal Remote Display , $236.25
AND AD-8922A Remote Controller AND AD-8922A Remote Controller , $532.50
AND Weighing  AD-1192· Compact  Palm-sized Dot-impact Printer AND Weighing AD-1192· Compact Palm-sized Dot-impact Printer , $442.80
AND Weighing KO:WW9-25:  RS-232C Cable, 25 pin male  to 9 pin female for AD-1192 AND Weighing KO:WW9-25: RS-232C Cable, 25 pin male to 9 pin female for AD-1192 , $51.15
AND Weighing AD-8127 Compact Multi-Function Printer AND Weighing AD-8127 Compact Multi-Function Printer , $757.50

View Features

AND Weighing
SKU: FX-300i

Features

A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg resolution balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time.

The FX-i also contains a specially designed internal shock absorber that offers protection from the adverse effects of vertical or transverse overloading. Legal-for-trade models (NTEP and Measurement Canada) are also available.

Statistical Calculation Function
The statistical values Sum, Maximum, Minimum,Range, Standard Deviation, Number of Data,and Coeffi cient of Variation can be displayedor output.

Comparator Function
Easy to compare weighing results by setting HI limit and LO limit to display HI,OK,LO indicator.

ACAI – Automatic Counting Accuracy Improvement
This counting function recalculates the average weight each time a sample is added to eliminate errors caused by variations in unit weight.

Percent Mode Function
A sample can be registered as 100% and the weight of another sample can be compared as a percentage

Animal Weighing Function
The HOLD function enables freezing of weighing data for animal weighing applications and an ANIMAL indicator appears on the display.

Underhook
The underhook allows for measurement of magnetic materials and density measurements in air and water

Standard RS-232C Interface
Incorporates bi-directional communication with a PC, printer or other peripheral devices.

GLP/GMP/GCP/ISO Compliant
In accordance with GLP and LIMS regulations the balance ID number and calibration data can be printed out using A&D’s AD-8121B or a PC.

Auto Power OFF Function
The display switches OFF automatically when the balance is inactive for 10 minutes as a power-saving tool.

Built-in Rechargeable Battery (FXi-09)
An optional Ni-MH rechargeable battery pack can be fitted into the FX-i series for use without AC power and for mobile applications (10 hours charging time for 8 hours operation).


Weight: 10.00 lb
Other AND Weighing FX-i Precision Balances
AND Weighing FX-120i Precision Balance,122 x 0.001 g
FX-120i
Precision Balance
122 x 0.001 g

$632.34
AND Weighing FX-200iN Legal For Trade Class II Precision Balance,220 x 0.001 g
FX-200iN Legal For Trade Class II Precision Balance
220 x 0.001 g

$645.00
AND Weighing FX-1200i Precision Balance,1220 x 0.01 g
FX-1200i
Precision Balance
1220 x 0.01 g

$645.20
AND Weighing FX-200i Precision Balance,220 x 0.001 g
FX-200i
Precision Balance
220 x 0.001 g

$655.48
AND Weighing FX-120iN Legal For Trade Class II Precision Balance,122 x 0.001 g
FX-120iN
Legal For Trade Class II Precision Balance
122 x 0.001 g

$658.05
AND Weighing FX-120iNC Legal For Trade Canada Precision Balance,122 x 0.001 g
FX-120iNC
Legal For Trade Canada Precision Balance
122 x 0.001 g

$658.05
AND Weighing FX-300iN Legal For Trade Class II Precision Balance,320 x 0.001 g
FX-300iN Legal For Trade Class II Precision Balance
320 x 0.001 g

$669.00
AND Weighing FX-1200iN Legal For Trade Class II Precision Balance,1220 x 0.01 g
FX-1200iN
Legal For Trade Class II Precision Balance
1220 x 0.01 g

$670.90
AND Weighing FX-1200iNC Legal For Trade Canada Precision Balance,1220 x 0.01 g
FX-1200iNC
Legal For Trade Canada Precision Balance
1220 x 0.01 g

$670.90
AND Weighing FX-200iN Legal For Trade Class II Precision Balance,220 x 0.001 g
FX-200iN
Legal For Trade Class II Precision Balance
220 x 0.001 g

$676.04
AND Weighing FX-2000i Precision Balance,2200 x 0.01 g
FX-2000i
Precision Balance
2200 x 0.01 g

$681.18
AND Weighing FX-200iNC  Legal For Trade Canada Precision Balance,220 x 0.001 g
FX-200iNC
Legal For Trade Canada Precision Balance
220 x 0.001 g

$681.18
AND FX-300i Precision Balance 320 x 0.001 g
AND FX-300i
Precision Balance 320 x 0.001 g

$683.75

You are viewing this product
AND Weighing FX-300iN Legal For Trade Class II Precision Balance,320 x 0.001 g
FX-300iN
Legal For Trade Class II Precision Balance
320 x 0.001 g

$691.46
AND Weighing FX-300iN-CA Legal For Trade Canada Precision Balance,320 x 0.001 g
FX-300iN-CA
Legal For Trade Canada Precision Balance
320 x 0.001 g

$691.46
AND Weighing FX-3000i Precision Balance,3200 x 0.01 g
FX-3000i
Precision Balance
3200 x 0.01 g

$706.89
AND Weighing FX-2000iNC Legal For Trade Canada Precision Balance,2200 x 0.01 g
FX-2000iNC
Legal For Trade Canada Precision Balance
2200 x 0.01 g

$706.89
AND Weighing FX-2000iN Legal For Trade Class II Precision Balance,2200 x 0.01 g
FX-2000iN
Legal For Trade Class II Precision Balance
2200 x 0.01 g

$706.89
AND Weighing FX-3000iNC Legal For Trade Canada Precision Balance,3200 x 0.01 g
FX-3000iNC
Legal For Trade Canada Precision Balance
3200 x 0.01 g

$719.74
AND Weighing FX-3000iN Legal For Trade Class II Precision Balance,3200 x 0.01 g
FX-3000iN
Legal For Trade Class II Precision Balance
3200 x 0.01 g

$719.74
AND Weighing FX-500i Precision Balance 520 x 0.001 g
FX-500i
Precision Balance 520 x 0.001 g

$796.86
AND Weighing FX-5000i Precision Balance 5200 x 0.01 g
FX-5000i
Precision Balance 5200 x 0.01 g

$799.43

Specifications

Model FX-120i FX-200i FX-300i FX-500i FX-1200i FX-2000i FX-3000i FX-5000i
Capacity X Readability 122 g x 0.001g 220 g x 0.001g 320 g x 0.001g 520 g x 0.001g 1220 g x 0.01g 2200 g x 0.01g 3200 g x 0.01g 5200 g x 0.01g
4.30 x 0.00005 oz 7.76 x 0.00005 oz 11.28 x 0.00005 oz 18.34 x 0.00005 oz 43.0 x 0.0005 oz 77.6 x 0.0005 oz 112.8 x 0.0005 oz 183.4 x 0.0005 oz
0.268 x 0.000005 lb 0.485 x 0.000005 lb 0.705 x 0.000005 lb 1.14 x 0.000005 2.68 x 0.00005 lb 4.85 x 0.00005 lb 7.05 x 0.00005 lb 11.46 x 0.0005 lb
0 lb, 4.30 oz x 0.01 oz 0 lb, 7.76 oz x 0.01 oz 0 lb, 11.28 oz x 0.01 oz 1 lb, 18.34 oz x 0.01 oz 2 lb, 11.30 oz x 0.01 oz 4 lb, 13.60 oz x 0.01 oz 7 lb, 0.88 oz x 0.01 oz 11 lb, 7.65 x 1 lb, 0.001 oz
3.92 x 0.00005 ozt 7.07 x 0.00005 ozt 10.28 x 0.00005 ozt 16.71 x 0.00005 ozt 39.2 x 0.0005 ozt 70.7 x 0.0005 ozt 102.8 x 0.0005 ozt 167.18 x 0.005 ozt
610 x 0.005 ct 1100 x 0.005 ct 1600 x 0.005 ct 2600 x 0.005 ct 6100 x 0.05 ct 11000 x 0.05 ct 16000 x 0.05 ct 26000 x 0.05 ct
78.6 x 0.001 dwt 141.7 x 0.001 dwt 206.2 x 0.001 dwt 335.1 x 0.001 dwt 786 x 0.01 dwt 1417 x 0.01 dwt 2062 x 0.01 dwt 3351 x 0.01 dwt
1882 x 0.02 GN 3395 x 0.02 GN 4938 x 0.02 GN 8024 x 0.02 GR 18827 x 0.2 GN 33951 x 0.2 GN 49383 x 0.2 GN 80248 x 0.2 GN
Legal For Trade
Models
FX-120iN FX-200iN FX-300iN - FX-1200iN FX-2000iN FX-3000iN -
NTEP Class II - NTEP CofC #08-045A2
NTEP
Capacity X Readability
122 g x 0.01g 220 g x 0.01g 320 g x 0.01g - 1220 g x 0.1g 2200 g x 0.1g 3200 g x 0.1g -
Canada Measurement
Models
FX-120iNC FX-200iNC FX-300iNC - FX-1200iNC FX-2000iNC FX-3000iNC -
Canada AM-5692
Canada Measurement
Capacity X Readability
122 g x 0.01g 220 g x 0.01g 320 g x 0.01g - 1220 g x 0.1g 2200 g x 0.1g 3200 g x 0.1g -
Pan Size Ø 5.12” Ø 5.91”
Units of Measurement g, pcs, %, oz, lb, suit weighing environment conditions. fi tted into the FX-i series for use without AC power and lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes and MLT
Counting Mode Min. Unit Mass 0.001g Min. Unit Mass 0.01g
# of Samples 5, 10, 25, 50 or 100 pieces
Percent Mode Min. 100% Ref. Mass 0.1g Min. 100% Ref. Mass 1.0g
Min. 100% Display 0.01%, 0.1%, 1% (depends on the reference mass stored)
Repeatability (Std. Deviation 0.001g 0.01g
Linearity ±0.002g ±0.02g
Stabilization Time (typically set at FAST) Approx. 1 second
Sensitivity Drift ±2ppm / °C (10°C to 30°C)
Operating Temp 5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation)
Display Type Vacuum Fluorescent Display (VFD)
Display Refresh Rate 5 times / second, 10 times / second or 20 times / second
Std. Serial Interface RS-232C Interface
Weighing Pan 130mm 150mm
External Calibration 100g
50g
200g
100g
300g
200g
100g
500g
400g
300g
200g
100g
50g
1000g
500g
2000g
1000g
3000g
2000g
1000g
5000g
4000g
3000g
2000g
1000g
500g
AC Adaptor Confirm that the adaptor type is correct for the local voltage and power receptacle
Power Consumption Approx. 11VA (supplied to the AC Adaptor)
External Dimensions 193 (W) x 262.5 (D) x 84.5 (H) mm
Net Weight Approx. 2.5kg
