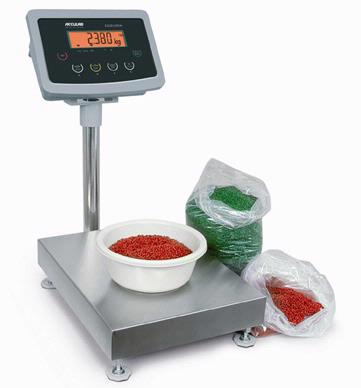

The Acculab Exceleron floor scales combine high quality construction with all the applications that you need to get the job done. This unit features an IP65 rated washdown base with a large, simple to use, display with amber colored backlighting for ease of reading. These units come with unique capacity/readability combinations that are unmatched by other bench scales. The EXCELERON is ideal for incoming/outgoing goods inspection, inventory management, QC, formulation, general weighing, packaging and more.
Features
- Heavy Duty design with maximum overload protection
- Internal frame construction in mild steel/powder coated
- Spirit level indicator
- Large adjustable rubber feet for excellent stability
- ABS Industrial Indicator (adjustable/ wall mounting option)
- Stainless Steel tubular column (included)
- Large 1 inch (25 mm) LCD segments with amber back-lit display for excellent visibility in all ambient conditions
- Very fast and reliable results saves time and money
- Four (4) digital filter settings for optimal performance
- Stainless Steel Pan
- Net/Tare/Gross Functionality
- Large function keys with "positiveclick-action" response
- Automatic counting optimization ensures accurate results
- Optional bi-directional RS-232 interface kit
- Battery operation
- External Calibration & Linearization
- IP65 rated washdown base
- Applications: Counting, Checkweighing (HI, LO), Unit Toggling (Kg, Lbs, Oz, G)
- 2 year warranty
| Model |
ECL300GFP-LO-US |
| Price |
$849.00
|
| Weighing Capacity |
300 kg/660 lbs |
| Readability |
20.0 g/0.05 lbs |
| Maximum Displayed Resolution |
1:15000 |
| Tare Range (subtractive) |
300kg/660lbs |
| Reapeatabilty (std. deviation) |
+/- 40.0g/0.1 lbs |
| Linearity |
+/- 40.0g/0.1 lbs |
| Corner Load |
+/- 4 digits at half capacity from center |
| Scale/Display Protection |
Base IP65 / Display IP44 |
| External Calibration Weight |
100 kg |
| Base Frame Construction |
Mild Steel / Painted |
| Leveling Component |
External level bubble with adjustable leveling feet and locking nuts |
| Weighing Units |
Grams, Kilograms, Pounds, Ounces, Troy Ounces |
| Functions |
Weighing, Unit toggling, Counting, Check Weighing |
| Display Type |
LCD, 6 Digits, Character Height: 1 inch (25mm), 7 Segment with backlight (Amber) |
| Audio Tone |
No |
| Safe Overload Capacity |
150% of rated capacity |
| Overload Indication |
Displays "OL" |
| Underload Indication |
Displays "UL" |
| Stabilization Time (typical) |
within 3 seconds |
| Adaptation to Ambient Conditions |
By selection of 1 of 4 optimized filter levels |
| Display Update (depends on the filter setting selected) |
Display update 0.1 - 0.4 (depends on filter level selected) |
| Pan Dimensions (inches) |
25.6 in. X 19.7 in. |
| Pan Material |
Stainless Steel |
Base Dimensions
(W x D x H) |
25.6" x 19.7" x 6.2" |
| Column Height (inches) |
29.5 inches (Stainless Steel tube) |
| Interface |
RS-232 Optional |
| AC Power Requirements |
100-240V AC (50/60 Hz) internal switching power supply |
| DC Power Operation |
Optional using 6 "D" size 1.5V dry battery |
| Power Consumption |
approx. 4VA |
| Optional Accessories |
RS232, Data Printer, Data Cable |
| Operating Humidity |
Less than 85% RH no condensation |
| Operating Temperature range |
(-10o... +40o C) , (14o...104o F) |
| Net weight, approx. |
84 lbs/ 38 kg |
| Shipping Weight |
90lbs / 41kg |
| Shipping Dimensions |
34.25" x 22.8" x 18.5" inches (869.95 x 579.12 x 469.9 mm) |
| Warranty |
2 Year Manufacture Warranty |
