Ohaus Defender 3000 I-D33P Basic Bench Scales |
Authorized Dealer |
| The Defender 3000 Series bench scales are ideal for general weighing, simple counting and checkweighing applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, multicolor backlit LCD display, AC or battery operation and flexible mounting capabilities.
|
| Industrial Scales >> Ohaus Scales |
|
Bench Scales for Basic Industrial Applications
The Defender 3000 Series bench scales are ideal for general weighing, simple counting and checkweighing applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, multicolor backlit LCD display, AC or battery operation and flexible mounting capabilities.
Unique Features Include:
- Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode display changes color (yellow/green/red) to alert when within the target weight range.
- This tough industrial scale features a 304-stainless steel platform, powder-coated steel tubular frame, column and aluminum load cell. Indicator features a durable ABS housing and powder coated steel mounting bracket.
- Features software for Parts Counting, Checkweighing and Totalization. Includes RS232 with optional second port USB Device or Ethernet for printing or data connectivity.
Compliance
Metrology: NTEP (Indicator: CC 21-070, Platforms: CC 21-075); Measurement Canada (Indicator: NoA AM-6183, Platforms: NoA AM-6180) Class lll
Product Safety: UL61010-1; CAN/CSA C22.2 61010-1; IEC/EN 61010-1
Electromagnetic Compatibility: FCC Part 15 Class A; Canada ICES-003 Class A; IEC/EN 61326-1 Class B, basic environments
Ingress Protection: IEC 60529 – IP54 (for indicator with optional dust cover), IEC 60529 – IP65 (for load cell)
Compliance Marks: CSA, CE
Other: WEEE, RoHS
|
|

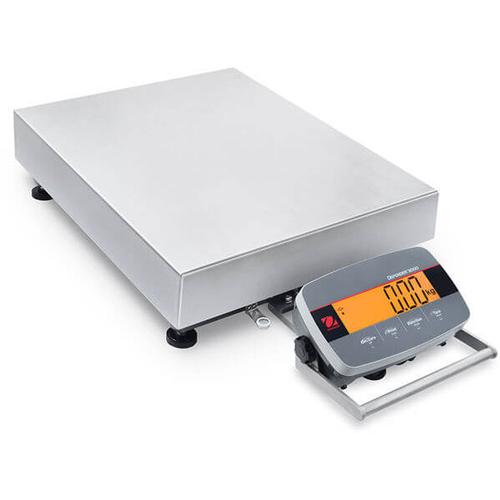

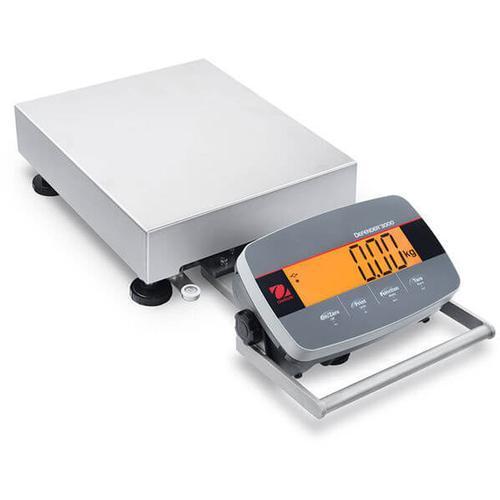

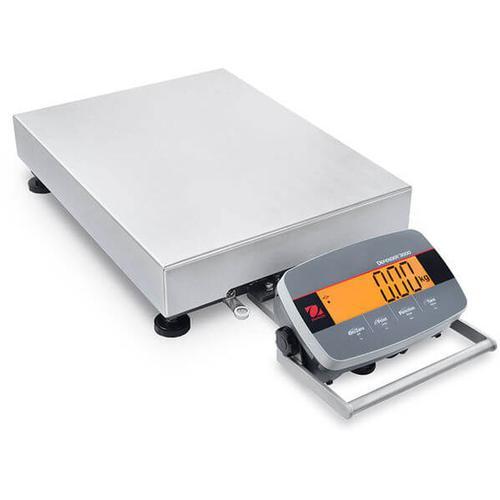

Front Mount Bench Scales
| Model |
i-D33P15B1R5
30685203 |
i-D33P30B1R5
30685204 |
i-D33P75B1R5
30685205 |
i-D33P75B1L5
30685212 |
i-D33P150B1L5
30685213 |
i-D33P150B1X5
30685218 |
i-D33P300B1X5
30685219 |
| Price |
$533.40
|
$533.40
|
$533.40
|
$615.95
|
$615.95
|
$768.75
|
$768.75
|
| Capacity x Readability |
30 lb x 0.005 lb |
60 lb x 0.01 lb |
150 lb x 0.02 lb |
150 lb x 0.02 lb |
300 lb x 0.05 lb |
300 lb x 0.05 lb |
600 lb x 0.1 lb |
| 15 kg x 2 g |
30 kg x 5 g |
75 kg x 10 g |
75 kg x 10 g |
150 kg x 20 g |
150 kg x 20 g |
300 kg x 50 g |
| 480 oz x 0.1 oz |
960 x 0.2 oz |
2400 oz x 0.5 oz |
2400 oz x 0.5 oz |
4800 oz x 1 oz |
4800 oz x 1 oz |
- |
| Maximum Displayed Resolution |
1:7,500 |
1:6,000 |
1:7,500 |
1:7,500 |
1:7,500 |
1:7,500 |
1:6,000 |
| Linearity/Repeatability |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
Legal for Trade
Capacity x Readability |
30 lb x 0.01 lb |
60 lb x 0.02 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
300 lb x 0.1 lb |
300 lb x 0.1 lb |
600 lb x 0.2 lb |
| 15 kg x 5 g |
30 kg x 10 g |
75 kg x 50 g |
75 kg x 50 g |
150 kg x 50 g |
150 kg x 50 g |
300 kg x 100 g |
| 480 oz x 0.2 oz |
960 oz x 0.5 oz |
2400 oz x 1 oz |
2400 oz x 1 oz |
- |
- |
- |
| Legal For trade |
NTEP Indicator: CC# 21-070 Class lll Platforms: CC 21-075) Class lll
Canada Indicator: NoA AM-6183, Platforms: NoA AM-6180 |
|---|
| Maximum Certified Resolution |
1:3,000 |
|---|
| Pan Size |
14 x 12 in |
21.7 x 16.5 in |
25.6 x 19.7 in |
| Indicator |
i-DT33P |
| Indicator Construction |
ABS housing, painted steel mounting bracket |
| IP Rating |
- |
| Display |
6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits |
| Check Indicator |
3 color (red, green, yellow) backlight |
| Weighing Units |
Kilogram, Gram, Pound, Ounce, Pound: Ounce |
| Application Modes |
Weighing, Parts Counting, Checkweighing and Totalization |
| Keyboard |
4 membrane function keys |
| Stabilization Time |
Within 1 second |
| Power |
100-240 VAC / 50/60 Hz Universal Power Supply or C cell battery (Not included), Optional Internal Rechargeable battery |
| Battery Life |
Up to 360 hours (C cell battery) or 100 hours continuous use with optional rechargeable battery with backlight off |
| Interface |
RS232 included, Optional second port USB Device or Ethernet |
| Calibration |
Zero, Span or 3 point-Linear |
| Auto-zero Tracking |
Off, 0.5 d, 1 d or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Base Construction |
Stainless steel removable weighing platform, powder-coated steel base construction, silicon sealed aluminum loadcell against moisture |
| Safe Overload Capacity |
150% of maximum capacity |
| Operating Temperature Range |
14oF to 104oF / -10oC to 40oC |
Scale Dimensions
(A x B x C x D x E x F) |
14 x 12 x 4.8 x 3 x 5.1 x 25.4 in
355 x 305 x 122 x 75 x 130 x 646 mm |
21.7 x 16.5 x 5.3 x 3.1 x 5.2 x 33.1 in
550 x 420 x 134 x 80 x 133 x 842 mm |
25.6 x 19.7 x 5.9 x 3.5 x 5.2 x 37 in
650 x 500 x 150 x 90 x 133 x 941 mm |
Shipping Dimensions
(L x W x H) |
33.7 x 22.2 x 8.9 in
857 x 564 x 225 mm |
40.2 x 27 x 9.7 in
1022 x 687 x 247 mm |
40.2 x 27 x 9.7 in
1022 x 687 x 247 mm |
| Approx. Net Weight |
9.6 kg / 21.3 lb |
15.5 kg / 34.3 lb |
25.7 kg / 56.6 lb |
| Approx. Shipping Weight |
12 kg / 26.5 lb |
19.6 kg / 43.2 lb |
29.2 kg / 64.3 lb |

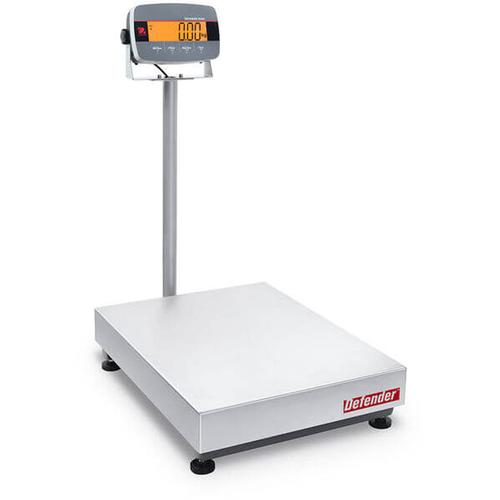

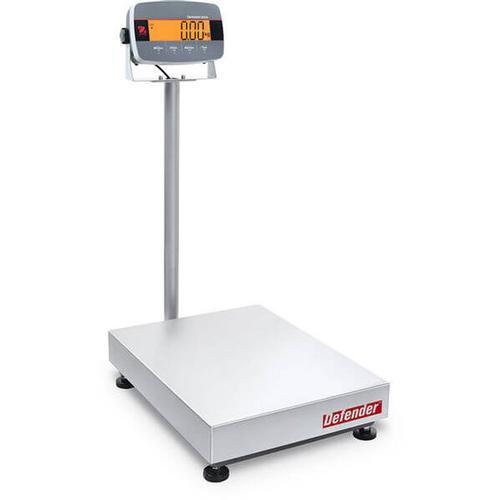

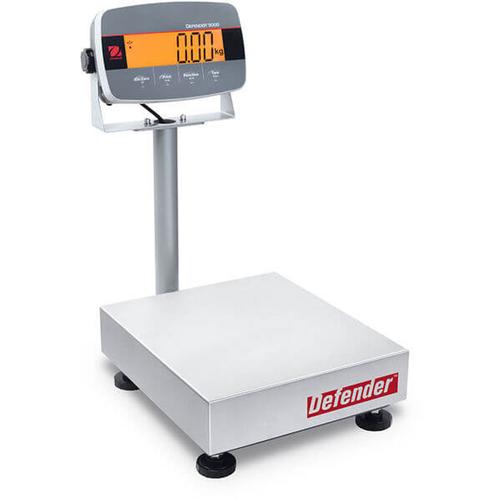

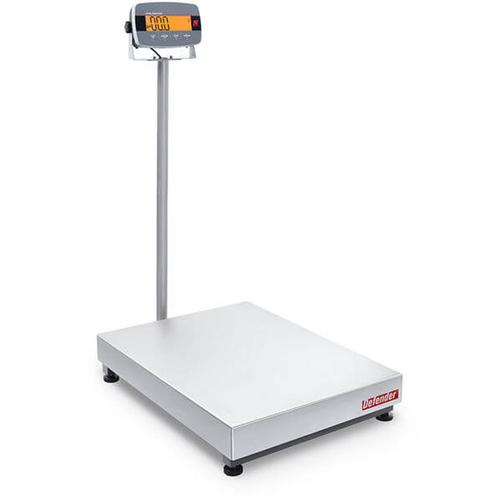

Column Mount Bench Scales
| Model |
i-D33P15B1R1
30685174 |
i-D33P30B1R1
30685175 |
i-D33P75B1R1
30685176 |
i-D33P75B1L2
30685183 |
i-D33P150B1L2
30685184 |
i-D33P150B1X2
30685193 |
i-D33P300B1X2
30685194 |
i-D33P300B1V3
30685199 |
i-D33P600B1V3
30685200 |
| Price |
$625.48
|
$625.48
|
$625.48
|
$734.93
|
$734.93
|
$796.43
|
$796.43
|
$857.93
|
$857.93
|
| Capacity x Readability |
30 lb x 0.005 lb |
60 lb x 0.01 lb |
150 lb x 0.02 lb |
150 lb x 0.02 lb |
300 lb x 0.05 lb |
300 lb x 0.05 lb |
600 lb x 0.1 lb |
600 lb x 0.1 lb |
1200 lb x 0.2 lb |
| 15 kg x 2 g |
30 kg x 5 g |
75 kg x 10 g |
75 kg x 10 g |
150 kg x 20 g |
150 kg x 20 g |
300 kg x 50 g |
300 kg x 50 g |
600 kg x 100 g |
| 480 oz x 0.1 oz |
960 x 0.2 oz |
2400 oz x 0.5 oz |
2400 oz x 0.5 oz |
4800 oz x 1 oz |
4800 oz x 1 oz |
- |
- |
- |
| Maximum Displayed Resolution |
1:7,500 |
1:6,000 |
1:7,500 |
1:7,500 |
1:7,500 |
1:7,500 |
1:6,000 |
1:6,000 |
1:6,000 |
| Linearity/Repeatability |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
+1d |
Legal for Trade
Capacity x Readability |
30 lb x 0.01 lb |
60 lb x 0.02 lb |
150 lb x 0.05 lb |
150 lb x 0.05 lb |
300 lb x 0.1 lb |
300 lb x 0.1 lb |
600 lb x 0.2 lb |
600 lb x 0.2 lb |
1200 lb x 0.5 lb |
| 15 kg x 5 g |
30 kg x 10 g |
75 kg x 50 g |
75 kg x 50 g |
150 kg x 50 g |
150 kg x 50 g |
300 kg x 100 g |
300 kg x 100 g |
600 kg x 200 g |
| 480 oz x 0.2 oz |
960 oz x 0.5 oz |
2400 oz x 1 oz |
2400 oz x 1 oz |
- |
- |
- |
- |
- |
| Legal For trade |
NTEP Indicator: CC# 21-070 Class lll Platforms: CC 21-075) Class lll
Canada Indicator: NoA AM-6183, Platforms: NoA AM-6180 |
|---|
| Maximum Certified Resolution |
1:3,000 |
|---|
| Pan Size |
14 x 12 in |
21.7 x 16.5 in |
25.6 x 19.7 in |
31.5 x 23.6 in |
| Indicator |
i-DT33P |
| Indicator Construction |
ABS housing, painted steel mounting bracket |
| IP Rating |
- |
| Column |
330 mm / 13 in high powder-coated steel |
680 mm / 26.8 in high powder-coated steel |
980 mm / 38.6 in high powder-coated steel |
| Display |
6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits |
| Check Indicator |
3 color (red, green, yellow) backlight |
| Weighing Units |
Kilogram, Gram, Pound, Ounce, Pound: Ounce |
| Application Modes |
Weighing, Parts Counting, Checkweighing and Totalization |
| Keyboard |
4 membrane function keys |
| Stabilization Time |
Within 1 second |
| Power |
100-240 VAC / 50/60 Hz Universal Power Supply or C cell battery (Not included), Optional Internal Rechargeable battery |
| Battery Life |
Up to 360 hours (C cell battery) or 100 hours continuous use with optional rechargeable battery with backlight off |
| Interface |
RS232 included - Optional second port USB Device or Ethernet |
| Calibration |
Zero, Span or 3 point-Linear |
| Auto-zero Tracking |
Off, 0.5 d, 1 d or 3 d |
| Zeroing Range |
2% or 100% of capacity |
| Base Construction |
Stainless steel removable weighing platform, powder-coated steel base construction, silicon sealed aluminum loadcell against moisture |
| Safe Overload Capacity |
150% of maximum capacity |
| Operating Temperature Range |
14oF to 104oF / -10oC to 40oC |
Scale Dimensions
(A x B x C x D x E x F) |
14 x 12 x 4.8 x 3 x 21.3 x 19 in
355 x 305 x 121.8 x 75 x 541.6 x 481.9 mm |
21.7 x 16.5 x 5.3 x 3.1 x 35.3 x 27 in
550 x 420 x 134 x 80 x 896.1 x 685.6 mm |
25.6 x 19.7 x 5.9 x 3.5 x 35.2 x 30.9 in
650 x 500 x 150 x 90 x 894.6 x 784.6 mm |
31.5 x 23.6 x 6.1 x 3.5 x 47 x 36.7 in
800 x 600 x 155 x 90 x 1,195 x 933 mm |
Shipping Dimensions
(L x W x H) |
25.3 x 19.6 x 8.3 in
642 x 497 x 212 mm |
33.7 x 22.2 x 8.9 in
857 x 564 x 225 mm |
40.2 x 27 x 9.7 in
1022 x 687 x 247 mm |
46.3 x 31.1 x 9.4 in
1,175x 790 x 245 mm |
| Approx. Net Weight |
10.4 kg / 22.9 lb |
16.9 kg / 37.3 lb |
27 kg / 59.6 lb |
45.5 kg / 100.3 lb |
| Approx. Shipping Weight |
13.4 kg / 29.5 lb |
21 kg / 46.2 lb |
30.5 kg / 67.3 lb |
49.5 kg / 109 lb |
Accessories
USB Device Interface Kit . . . . . 30699120
Ethernet Interface Kit . . . . . 30429666
Cable RS232 IBM 9P Male-to-Female . . . . . 80500525
Printer, Impact, SF40A, AM . . . . . 30064203
Printer, Thermal, STP-103, US . . . . . 80251992
Printer Zebra Label GK420T . . . . . 30611855
Rechargeable battery Kit i-DT33P . . . . . 30699122
Dust Cover Set(5) i-DT33 . . . . . 30699121
Stainless steel wheel kit for Defender Bases* . . . . . 30616409
Wheel Kit, Defender Series . . . . . 30372146
