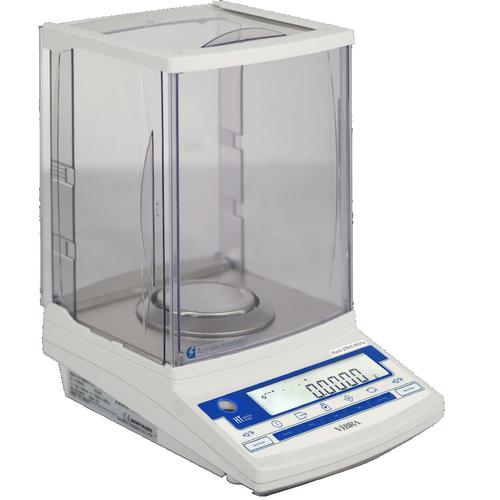

The ViBRA HT Series Analytical laboratory balances from Intell-Lab are produced in Japan in one of the cleanest facilities you will ever see. The quality of workmanship and attention to detail is superb. Starting at the bottom of the balance, there are three support points, two of which are adjustable to provide leveling. The base contains the revolutionary Vibra double ended tuning fork sensor, which gives almost instant start up because it does not require a warm up time, unlike conventional force restoration balances. Probably the most stable system on the market, the Vibra module is also very resilient against shipping or any movement induced damage. As there is no coil, it is also stable when weighing magnets.
The floor of the weighing chamber is lined with high quality stainless steel and is fitted with a spill ring (to guard the internal components from accidental spillage), an anti-buoyancy plate to ensure air currents within the chamber do not affect the weighing results and a 3.15” diameter platter. There is plenty of room for large, awkward samples to be weighed in the 6 x 6.25 x 9.5” chamber. The weighing chamber of anti-electrostatic material is easily removable to enable proper cleaning of spills and contamination, as regular cleaning is recommended. The three doors give excellent access for operations such as pipette calibration.
The capacity of the balance offers analytical weighing up to 220 g x 0.1 mg, and reads in 9 weighing units, and Easy RES™ which allows you to change between three response times to suit your application. The balance comes equipped with many programs to match laboratory applications such as GLP, density, parts counting, checkweighing, accumulation, Quick Cal™ calibration, adjustable backlight levels, under balance weighing and Direct to Windows via Serial RS232. The HT Series is a complete solution to any laboratory request for analytical weighing performance. It is supplied with a comprehensive user operation manual to help you get the most out of your investme
- Configurable RS 232 Interface, Windows® Compatible
- Large, Easy to Read Backlit LCD Display with Icons
- Reads in g, mg, ct, oz, lb, oz t, dwt, GN, momme
- Counting, %, Density, Accumulation, Checkweighing
- Optional Density Kit
- CalQuick™ Single Button Calibration
- 3-Door Anti-Static Draft Shield (Removeable & Washable)
- Below Balance Weighing
- GLP Compliant
- Vibra® Tuning Fork Sensor
- Static Charge & Magnetism Resistant
| Model |
HT-84
2-HT4-S084-121 |
HT-124
2-HT4-S124-121 |
HT-224
2-HT4-S220-121 |
HT-224-R
2-HT4-S220-122 |
| Price |
$1,179.36
|
$1,249.92
|
$1,310.68
|
$1,428.48
|
| Capacity x Readability |
80g x 0.1mg |
120g x 0.1mg |
220g x 0.1mg |
220g x 0.1mg |
| Calibration |
External |
External |
External |
Internal |
| Repeatability (Std. Dev.) |
+ 0.0001 g (0.1 mg) |
| Linearity |
+.0.0003 g (0.3 mg) |
| Stabilization Time |
3 seconds |
| Weighing Units |
g, mg, ct, oz, lb, oz t, dwt, GN, momme |
| Functions |
Statistics, counting, below balance weighing, percentage, density, checkweighing (limit function) GLP compliant, accumulation |
| Tare Range |
To capacity by subtraction |
| Power Source |
110 VAC, 5.5 VDC 50/60 Hz |
| Construction |
Cast aluminum and static resistant ABS, 3 static-resistant doors, stainless steel weighing pan and surrounding area |
| Display |
Large, easy to read LCD display with backlight and icons, 5/8” (16 mm) high |
| Pan Size |
3.15 inches / 80 mm diameter |
| Draft Shield Internal Dimensions (W x D x H) |
6 x 6.25 x 9.5 inches / 152 x 159 x 241 mm |
| Overall Dimensions (W x D x H) |
12.5 x 8.25 x 13 inches / 209 x 317 x 330 mm |
| Operating Environment |
50 oF to 86 oF / 10 oC to 30 oC |
| Connectivity |
Configurable USB / RS 232 interface with free RTS Data Collection Software for Windows® |
| Net Weight |
6.4 lb / 2.9 kg |
| Shipping Weight |
11.24 lb / 5.1 kg (18 x 16 x 20 inches) |
| Options |
Density Kit, OIP-100 Printer, SDI Remote Display, Intelligent-Ionizer, Anti-Vibration Plate, Underweighing Hook, Airline Suitable Carrying Case |
| Country of Origin |
Japan |
| Features |
Benefits |
| CalQuick™ one button calibration |
Calibration is simple, ensuring that the balance will be calibrated often during use |
| Dedicated print button |
Easy data transfer to printer or computer |
| Large stainless steel pan |
Allows for easy weighing of large objects |
| Spill ring |
Protects against damage to electronic components |
| Adjustable bright, backlit LCD display |
Easy to read in all lighting conditions including bright sunlight |
| Multiple weighing units |
Allows flexibility of weighing |
| Keyboard dust cover |
Protects balance from spillage and contamination |
| Leveling feet with 2 points of adjustment |
The balance remains level for accurate results even on uneven working surfaces |
| Configurable RS 232 interface with Direct to Windows® communication |
Allows communication with peripheral data collection and printing instruments |
|
