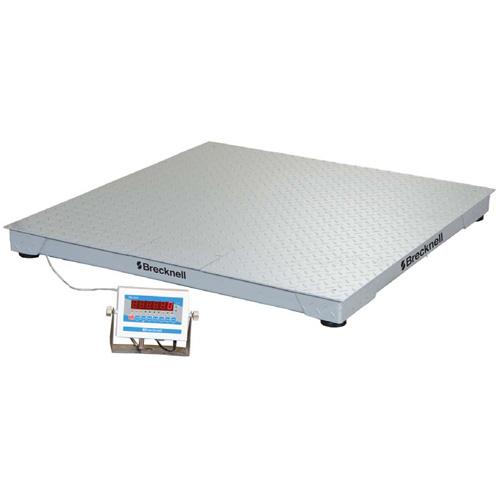

The Salter Brecknell DSB-Series Floor Scale Systems is Versatile Indicator For many applications including shipping, counting, totalizing and check weighing functions NTEP certified at 5,000
divisions, Class lll.Rugged Construction Thick safety tread top plate with heavy duty welded wide channel supports. Functions Checkweighing, count, weight,
total and print.
- Capacity – 2500 lb x 0.5 lb / 5000 lb x 1 lb / 10,000 lb x 2 lb
- Legal for Trade - NTEP certified at 5,000 divisions, Class lll
- Versatile Indicator – For many applications including shipping, counting, totalizing and check weighing functions
- Power - AC adapter (included) or external customer supplied 12Vdc
- Finish – Powder coat paint
- Load Cells – Four alloy steel potted load cells
- RS-232 – Standard serial string with time and date
- Function – Checkweighing, count, weight, total and print
- Rugged Construction – Thick safety tread top plate with heavy duty welded wide channel supports
|
|
| Model |
DSB3636-02.5 |
DSB4848-05 |
DSB6060-05 |
DSB4848-10 |
DSB6060-10 |
$1,095.00
|
$1,195.00
|
$1,495.00
|
$1,295.00
|
$1,595.00
|
| Capacity x Readability |
2500 x 0.5 lb |
5000 x 1 lb |
5000 x 1 lb |
10000 x 2 lb |
10000 x 2 lb |
| 1250 x 0.2 kg |
2500 x 0.5 kg |
2500 x 0.5 kg |
5000 x 1 kg |
5000 x 1 kg |
| Platform size |
36" x 36" |
48" x 48" |
59" x 59" |
48" x 48" |
59" x 59" |
| Legal for Trade |
Base: NTEP CC #11-081 - Indicator: NTEP CC #11-082 |
| Accuracy: |
NTEP at 5000 divisions, Class III |
| Floor Scale Material |
Mild steel with 5 mm / 0.19" deck with safety tread |
| Height Dimension |
min 102 mm / 4.0"; max 118 mm / 4.6 |
| Finish |
Powder coat paint |
| Overload Protection |
150% of rated capacity |
| End Loading |
100% of rated capacity |
| Operating Temperature |
-10o C to 40o C / 14o F to 104o F |
| Interface Cable Length |
4.6 m / 15 Foot |
| Indicator |
SBI-505 |
| Indicator Construction |
Mild steel with stainless steel desk stand or wall mount stand |
| Indicator Dimensions |
47 mm (W) x 220 mm (L) x 149 mm (H)
1.875" W x 8.675" L x 5.875" H |
| Finish |
Powder coat paint |
| Rated |
IP65 |
| Display |
Six digit 20 mm / 0.8" high red LED |
| Annunciators |
-0-, motion, Gross, Net, tared, Total, pcs, lb, kg, Lo, OK, Hi |
| Interface |
RS-232: Female DB9 connection |
| Operator Keys |
On/Off, Total, Count, kg/lb, Gross, Tare, Zero, Print |
| Power |
120/220VAC; Output: 9.0V center positive |
| Calibration |
Front panel accessible |
| Warranty |
Three year parts only from time of purchase. Consult factory |
Load Cell Rated: NTEP, IP65
J-Box Construction: Mild steel
Loadcell Material: Alloy tool steel potted
Loadcell Rated Output: 3 mv/V
Loadcell Output Resistance: 350 ohm
J-Box Access: Top access for easy installation and service
Leveling Feet: Four top access holes for quick installation
Threaded Eye Bolts: Four threaded top access eye-bolt holes for easy mobility and pit service
Corner Protection: Closed corners to prevent damage to leveling feet while installing the scale
|
