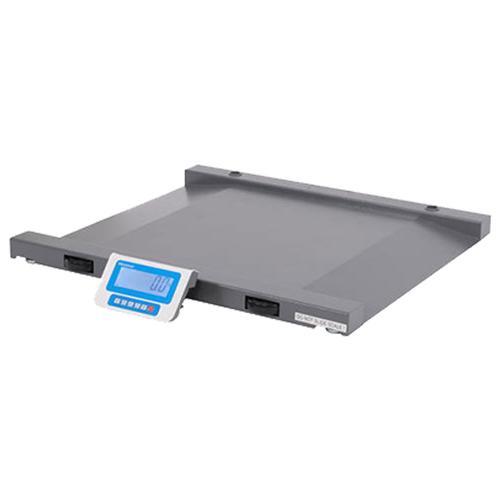

DS1000-LCD Drum Weigher Scale is ideal for any busy shipping area where goods are constantly being moved around by pallet trucks or for monitoring drum weights. This portable, low profile floor scale features a powder coated rugged steel deck with a gradual 9% entry and exit ramp making it very easy to roll drums on and off the platform. Simple to-operate, the indicator offers all the weighing functions needed for a wide range of applications as well as the display-hold function that retains results on the screen. AC and battery powered means this scale can easily be installed in remote locations where power sockets are not available.
Typical Applications: Veterinary, Freight Operation, Warehouse
- Accuracy: Within 0.1%
- Power: 9V 600mA universal power supply with USA/UK/EU adapters (included) or six AA batteries (not included)
- Construction: Powder coated rugged smooth steel deck structure and built-in ramps, fitted with two handles and wheels for relocating the scale. Robust ABS plastic indicator with bench or pole brackets for mounting.
- Capacity: 1000 lb x 0.5 lb / 500 kg x 0.2 kg
- Display: Six large, easy-to-read 1.5" / 38 mm high digits, large seven segment LCD with white backlight
- Operator Keys: On/Off/Zero, Tare, Unit, Print, Hold, Accumulate/Total
SBI 210 Indicator Specififications
- Construction: Robust ABS housing
- Annunciators: -0-, motion, gross, net, tare, hold, pcs, %, HI/OK/LOW, battery, accumulation
- Units: lb, kg, pcs, %
- Tare: 100% subtractive. Ideal when filling to a set recipe.
- Check Weighing: Used when packing or filling to a set weight. This provides the operator a fast & simple visual to let them know the product is within the accepted weight window.
- Counting: Used for stock control or to quickly work out the quantity of items within a box
- Accumulation: Used when packing multiple items into one consignment to get the final consignment weight total
- Hold: Allows a stable weight to be easily held once the goods have been removed from the scale
- Percentage: Allows the operator to easily carry out weightments on % basis
- Indicator Mounting: Can be desk mounted or pole mounted either vertically or horizontally
- Display: Large, easy-to-read six digit 1.5" / 38 mm high digit LCD with backlight
- Power: 9V 600mA, 110-230V switch mode external power supply with USA/UK/EU interchangeable plug adapters or six AA batteries (not included)
- Built-in Power Saving Features: Subject to how the scale is to be used, there are a number of ways to prolong the battery life of this scale. From turning off the backlight to setting the auto-off to engage when the scale is not in use.
- Communication: One USB (VCP) and one RS-232 bi-directional full duplex port. Optional COM cables.
- Print Format: Configurable
- Calibration: Front panel calibration
- Indicator Packing: Comes packed within the base packing box
- Operating Temperature: 14º F to 104º F / -10º C to 104º C
DS1000-LCD Floor Specififications
- Capacity: 1000 lb x 0.5 lb / 500 kg x 0.2 kg
- Construction: Heavy duty welded channel support with powder coat paint for corrosion protection,adjustable locking feet, two handles and wheels
- Load Cells: 4-planner beam load cells connect to the ABS junction box with 10' / 3 m interface cable
- Ramp: Designed with built-in 9 degree gradual angle to make entry and exit safe and easy
- Product Weight: 103.4 lb / 47 kg
- Packaging Dimension (L x W x H): 47.6" x 47.2" x 8.0" / 1210 mm x 1200 mm x 205 mm
- Shipping Weight: 106.7 lb / 48.5 kg
- Packaging Contents: DS1000-LCD platform, indicator, power supply with USA/UK/EU plugs and indicator desk and pole mounting brackets
- Certifications: FCC compliant, Prop 65, ETL power adapter, UKCA, CE, RoHS 3, WEEE

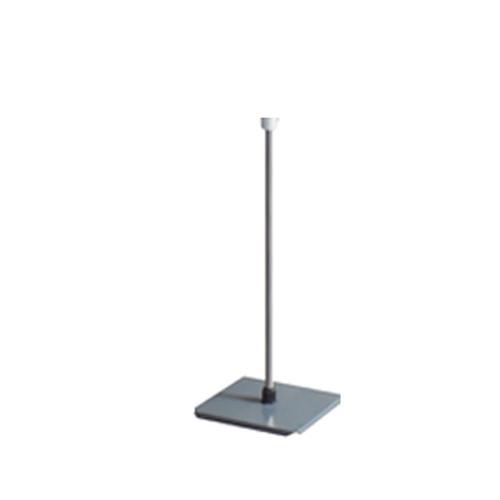

- Options: Indicator floor stand, guard rail kit
Specifications
| Model |
DS1000-LCD |
$620.00
|
| Capacity x Readability |
1,000 lb x 0.5 lb |
| 500 kg x 0.2 kg |

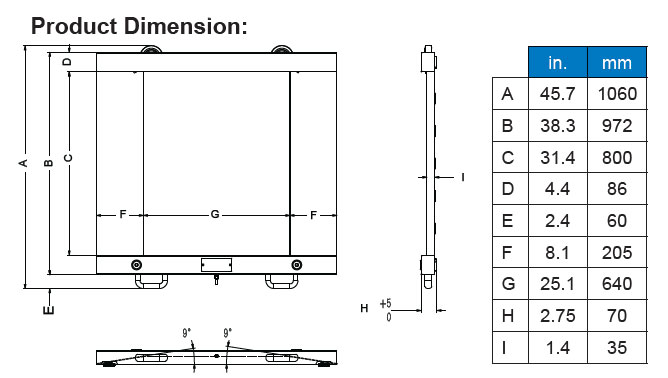

| Platform size |
31.4" L x 25.1" W |
| Display |
Six large, easy-to-read 1.5" / 38 mm high digits, large seven segment LCD with white backlight |
| Power |
9V 600mA universal power supply with USA/UK/EU adapters (included) or six AA batteries (not included) |
| Operating Temp |
14º F to 104º F / -10º C to 104º C |
| Platform Construction |
Powder coated rugged smooth steel deck structure and built-in ramps, fitted with two handles and wheels for relocating the scale. Robust ABS plastic indicator with bench or pole brackets for mounting |
| Communication |
One USB (VCP) and one RS-232 bi-directional full duplex port. Optional COM cables |
| Unit |
lb, kg, pcs, % |
| Tare |
100% subtractive. Ideal when filling to a set recipe. |
|
