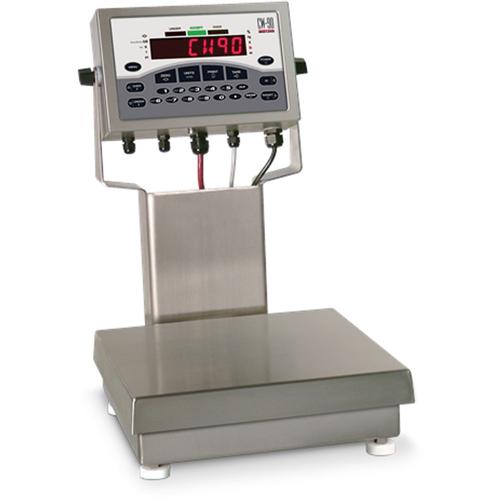

The Bench Checkweigher of Choice
Rice Lake’s CW-90 bench checkweigher accelerates weighing
processes and reduces production downtime—two critical
factors to any company’s bottom line. Ease of use, real-time
data collection and rugged stainless steel construction make
the CW-90 the equipment of choice for operators, quality
control and maintenance departments. The CW-90 is also
competitively priced, making it an appealing solution
for all light industrial settings.
Easy to Configure
The CW-90s configuration menu is accessible
through the front keypad, eliminating the
need to open the indicator and risk exposure to
moisture or contaminants. The CW-90 stores detailed information
for up to 50 separate IDs, allowing easy recall of previously saved information.
For additional storage, optional WeighVault®
PC software collects data from single
or multiple CW-90s and provides detailed reports that can be exported to Excel®
,
Word or PDF
|
|
|
Simple to Use
The CW-90s straightforward operation meets the needs of today’s lean manufacturers:
Simply watch the over/under lights! Program the unit with specified weight limits
and a red light will display an underweight condition, yellow for over and green for
target weights. Rice Lake’s CW-90 will help error-proof your production process
and achieve productivity goals
Indicator:
- Membrane keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, 0-9, DECIMAL, CLEAR, ENTER, MENU, POWER
- 304 stainless steel, IP66 rated
- Gore™ PreVent® breather vent
- Storage for up to 50 IDs, expandable with optional WeighVault PC software
- Unit of Measure: kg, gm, lb, oz, lb/oz
- High-intensity LED display
- Battery-backed time and date
- Two full-duplex serial ports
- Configurable print formats
- Audit trail tracking
- Optional Communications: Ethernet, USB or Fiber Optic
- Four configurable digital I/O
- Reflash memory to upgrade firmware
Scale:
- Aluminum, environmentally sealed load cell
- 304 stainless steel
- Five-point overload protection
|
| Model |
105957 |
105958 |
105959 |
105960 |
105961 |
105962 |
$1,259.70
|
$1,259.70
|
$1,259.70
|
$1,306.50
|
$1,306.50
|
$1,306.50
|
| Capacity x Readability |
5 lb x 0.001 lb
2.5 kg x 0.0005 kg
80 oz x 0.02 oz |
10 lb x 0.002 lb
5 kg x 0.001 kg
160 oz x 0.05 oz |
25 lb x 0.005 lb
10 kg x 0.002 kg
400 oz x 0.1 oz |
25 lb x 0.005 lb
10 kg x 0.002 kg
400 oz x 0.1 oz |
50 lb x 0.01 lb
25 kg x 0.005 kg
800 oz x 0.2 oz |
100 lb x 0.02 lb
50 kg x 0.01 kg
1,600 oz x 0.5 oz |
| Size |
10 x 10 x 4.25 in |
10 x 10 x 4.25 in |
10 x 10 x 4.25 in |
12 x 12 x 4.25 in |
12 x 12 x 4.25 in |
12 x 12 x 4.25 in |
| COLUMN HEIGHT |
12 in |
12 in |
12 in |
12 in |
12 in |
12 in |
| Legal For Trade |
Indicator: NTEP CC 08-092, Class III/IIIL 10,000 d
Scale: NTEP CC 95-072, Class III 5,000 d |
Indicator: Measurement Canada AM-5710, Class III 10,000 d
Scale: Measurement Canada AM-5082, Class III 5,000 d |
| Power - AC |
Line voltages: 115/230 VAC
Frequency: 50/60Hz |
| Power - Plug |
NEMA 5-15 |
| Power Consumption |
1.5A at 115 VAC (8 W),0.75A at 230 VAC (8 W)
|
| Excitation Voltage |
+5 VDC 8 x 350O or 16 x 700O load cells |
| Analog Signal Input Range |
0.5mV/V - 4.5mV/V |
| Analog Signal Sensitivity |
0.3 uV/graduation minimum, 1.5 uV/ graduation recommended |
| Measurement Rate |
960,480, 240, 120, 60, 30, 15, 7.5 per second |
| System Linearity |
+0.01% full scale |
| Digital I/O |
4 channels on CPU board |
| Circuit Protection |
RFI, EMI, ESD protection |
| Display |
Large 0.8 in 14 segment, six digit high-intensity red LED display |
| Status Annunciators |
Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion |
| Operating Temperature |
Legal: 14º F to 104º F (-10ºC to 40ºC) |
| Rating/Material |
IP66, stainless steel |
| Display Resolution |
100,000 graduations maximum |
| Load Cell |
Aluminum, environmentally sealed |
| Warranty |
Two-year limited warranty |
| Approvals |
Indicator: NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC GB-1385
TAC UK2900
UL and CUL listed
CE marked
Scale: NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF |
| Analog Signal Input Range |
0.5mV/V - 4.5mV/V |
|
Other Models |
| Models 230 V |
118891 |
118892 |
118893 |
118895 |
118896 |
118897 |
| Capacity x Readability |
2.5 kg x 0.0005 kg
5 lb x 0.001 l
80 oz x 0.02 oz |
5 kg x 0.001 kg
10 lb x 0.002 lb
160 oz x 0.05 oz |
10 kg x 0.002 kg
25 lb x 0.005 lb
400 oz x 0.1 oz |
10 kg x 0.002 kg
25 lb x 0.005 lb
400 oz x 0.1 oz |
25 kg x 0.005 kg
50 lb x 0.01 lb
800 oz x 0.2 o |
50 kg x 0.01 kg
100 lb x 0.02 lb
1,600 oz x 0.5 oz |
|
Please Call (800)832-0055 or Email Us for help Ordering this Scale |
| Models 230V CE marked/OIML approved (CEE 7/7 plug)) |
106123 |
106124 |
106125 |
106126 |
106127 |
106128 |
| Capacity x Readability |
3 kg x 0.001 kg |
6 kg x 0.002 kg |
15 kg x 0.005 kg |
15 kg x 0.005 kg |
30 kg x 0.01 kg |
60 kg x 0.02 kg |
|
Please Call (800)832-0055 or Email Us for help Ordering this Scale |
|
