Rice Lake 480 Legend Roughdeck Floor Scales
The RoughDeck® Floor sacle with the Rice Lake 480 Legend is a complete floor scale and indicator package. Calibrate and seal the scale for an NTEP-approved system
Rice Lake Scales > Industrial Scales > Floor Scales

Indicator:
480 Legend


Legal For Trade*	Select Models Only

Have Questions?

email Us

Our Staff will be glad to help

Specifications Chart

The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4 ft RoughDeck floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

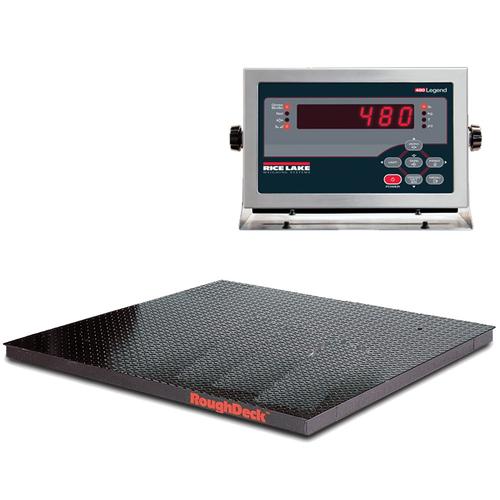

RoughDeck® Rough-n-Ready, Floor Scale System with 480/480 Plus Indicator

Package includes: RoughDeck HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 480/480 Plus indicator
Package is factory-calibrated for 5,000 divisions

Scale

Heavy-duty design with structural steel under support
Four NTEP certified alloy steel shear beam load cells
Side-access JB4SS TuffSeal® junction box

Indicator

LED display
Time and date battery backed
Communication ports

Rice Lake Roughdeck Floor Scales

Model

Optional for Digital Scales

	Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $220.00
	Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $200.00
	Rice Lake Floor anchor plates, mild steel (set of 2), add $34.00
	Rice Lake Roughdeck HP Access Ramp 4 ft x 3 ft x 3.5 in, add $592.50
Full list of Options

LED display
Time and date, battery backed
Local/remote operation
Two independent serial ports
NEMA Type 4X/IP66 stainless steel washdown enclosure
Programmable ticket formats for gross, net, accumulator and setpoints
Five continuous stream formats
Adapter filter or rolling average filter
Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
Eight setpoints, sequenced batch engine
Configurable with Revolution® software

RoughDeck Specifications End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb
Cable Length:
20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year
Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d

480/480 Indicator Specifications
Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Display:
LED display 0.8 in (20 mm), six-digit, seven-segment
Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel
Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals:
NTEP CC 12-123
Measurement Canada AM-5892C,
CE Marked
cULus Listed

Model	480-25X25-2K	480-3X3-1K	480-3X3-2K	480-3X3-5K	480-4X4-1K	480-4X4-2K	480-4X4-5K	480-4X4-10K
Model	480-66318	480-66320	480-66317	480-105300	480-66319	480-67618	155666	155667
	$2,804.10	$2,804.10	$2,804.10	$2,804.10	$2,905.50	$2,905.50	$2,541.00	$2,541.00
Stainless Steel Models	480-18663	480-46239	480-18664	-	480-46241	-	480-18665	480-18666
Stainless Steel Models	$3,711.00	$4,103.70	$4,103.70	-	$5,374.20	-	$5,374.20	$7,189.20
Capacity x Readability	2000 x 0.5 lb	1000 x 0.2 lb	2000 x 0.5 lb	5000 x 1 lb	1000 x 0.2 lb	2000 x 0.5 lb	5000 x 1 lb	10000 x 2 lb
Size	2.5 ft x 2.5 ft	3 ft x 3 ft	3 ft x 3 ft	3 ft x 3 ft	4 ft x 4 ft	4 ft x 4 ft	4 ft x 4 ft	4 ft x 4 ft
Base Hight	3.5 in
Legal For Trade	Base: NTEP CC 92-001, Class III 5000 d - Indicator: NTEP CC 12-123, Class III/IIIL, 10,000 d
Power	Line voltages: 100 to 240 VAC - Frequency: 50/60 Hz - DC voltages: n/a
Power Consumption	8 W
Communication Ports	Com 1: RS-232 full duplex Com 2: RS-232 full duplex or 20 mA simplex, continuous Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Annunciators	Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Display	LED display 0.8 in (20 mm), six-digit, seven-segment
Keys/Buttons	Flat membrane panel, embossed keys, tactile feel
Indicator Rating/Material	Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Indicator Weight	6.4 lb (2.9 kg)
Cable Length	20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt	Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited)	RoughDeck HP weldment five years, load cells two years, all other components one year
Pallet Jacks	Not recommended for use with pallet jacks				-
Warranty	Two-year limited

Model	480-4X5-5K	480-4X5-10K	480-4X6-5K	480-4X6-10K	480-5X5-5K	480-5X5-10K	480-5X6-5K	480-5X6-10K	480-5X7-5K	480-5X7-10K
Model	480-66314	480-66313	480-66312	480-66311	480-66310	480-66309	480-66308	480-66307	480-66306	480-66305
	$3,077.10	$3,699.45	$3,225.30	$3,845.75	$3,256.50	$3,876.55	$3,471.00	$4,250.00	$3,614.75	$4,423.25
Stainless Steel Models	480-18667	480-18668	-	-	480-18671	480-18672	-	-	480-18675	480-18676
Stainless Steel Models	$5,912.40	$7,884.60	-	-	$7,261.40	$9,001.80	-	-	$9,241.20	$11,498.40
Capacity x Readability	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb
Size	4 ft x 5 ft	4 ft x 5 ft	4 ft x 6 ft	4 ft x 6 ft	5 ft x 5 ft	5 ft x 5 ft	5 ft x 6 ft	5 ft x 6 ft	5 ft x 7 ft	5 ft x 7 ft
Base Hight	3.5 in
Legal For Trade	Base: NTEP CC 92-001, Class III 5000 d - Indicator: NTEP CC 12-123, Class III/IIIL, 10,000 d
Power	Line voltages: 100 to 240 VAC - Frequency: 50/60 Hz - DC voltages: n/a
Power Consumption	8 W
Communication Ports	Com 1: RS-232 full duplex Com 2: RS-232 full duplex or 20 mA simplex, continuous Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Annunciators	Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Display	LED display 0.8 in (20 mm), six-digit, seven-segment
Keys/Buttons	Flat membrane panel, embossed keys, tactile feel
Indicator Rating/Material	Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Indicator Weight	6.4 lb (2.9 kg)
Cable Length	20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt	Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited)	RoughDeck HP weldment five years, load cells two years, all other components one year
Warranty	Two-year limited
