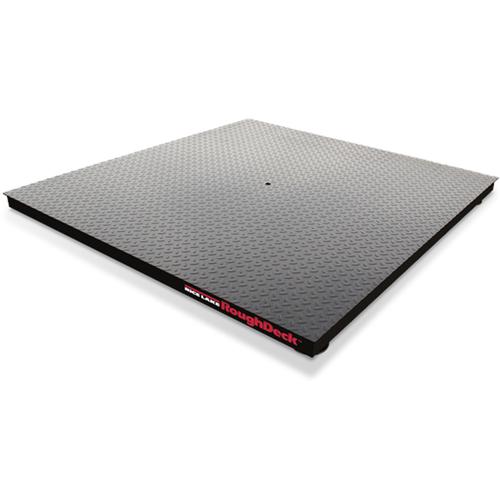

Rice Lake Roughdeck HP Structural Steel Low-Profile Floor Scales

Manufacturers

Rice Lake Roughdeck HP Structural Steel Low-Profile Floor Scales
Harsh environments and demanding capacities are no match for the industry?s toughest floor scale. RoughDeck lives up to its name with superior structural design, specialized footing, and durable load cell and cable protection. RoughDeck?s design separates it from other floor scales by minimizing deck deflection and extraneous forces that could damage load cells.
Rice Lake Scales > Industrial Scales > Floor Scales

Base Only Indicator Sold Separately


Legal For Trade Selected Models	Canada Measurement Selected Models

Specifications Chart Please Call (800)832-0055
or Email Us for help
Ordering this Scale

Factory Installed Options Must be added with scale
Rice Lake Roughdeck HP Smooth Deck Instead of Diamond Safety Tread Plate $1.00
Rice Lake Floor anchor plates, mild steel (set of 2) , Add $32.30
Rice Lake Roughdeck HP 4 drilled deck holes for scale height adjustment , Add $40.00
Rice Lake Roughdeck HP Mild steel Deck with RL35023S Stainless Steel FM Approved Load Cells and Hardware , Add $300.00
Rice Lake Roughdeck HP Mild Steel Deck with RLH35 Welded-Seal IP67 Stainless Steel FM Approved Load Cells and Hardware , Add $500.00
Rice Lake Roughdeck HP Mild Steel Deck with RL35082 Hermetically Sealed IP69K Stainless Steel FM Approved Load Cells and Hardware , Add $800.00
Rice Lake Roughdeck HP with Epoxy Paint , Add $90.00
Rice Lake Roughdeck HP Top Access Junction Box , Add $100.00
Rice Lake Roughdeck HP Forklift Channel , Add $275.00

Harsh environments and demanding capacities are no match for the industry?s toughest floor scale. RoughDeck lives up to its name with superior structural design, specialized footing, and durable load cell and cable protection. RoughDeck?s design separates it from other floor scales by minimizing deck deflection and extraneous forces that could damage load cells. Standard or customized, the RoughDeck series is available in low-profile stationary and portable versions, and offers component interchangeability and alternative construction materials to meet specific industrial requirements?from basic shipping and receiving to highly corrosive or washdown environments.

Single Side Bumper Guard
	Rice Lake RoughDeck HP Bumper Guard Option A 2.5 ft, add $112.00
	Rice Lake RoughDeck HP Bumper Guard Option A 3.0 ft, add $136.00
	Rice Lake RoughDeck HP Bumper Guard Option A 4.0 ft, add $180.00
	Rice Lake RoughDeck HP Bumper Guard Option A 5.0 ft, add $228.00
	Rice Lake RoughDeck HP Bumper Guard Option A 6.0 ft, add $268.60
	Rice Lake RoughDeck HP Bumper Guard Option A 7.0 ft, add $312.05

RoughDeck HP Caster Portability Frames
	Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 2.5 ft x 2.5 ft, add $1,712.10
	Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 3 ft x 3 ft, add $1,712.10
	Rice Lake RoughDeck HP Caster for 1000 lb to 5000 lb 4 ft x 4 ft, add $1,712.10

Rice Lake Roughdeck HP Structural Steel Low-Profile Floor Scales
Price From: $1556.10

Select Indicator (Must be added with scale)
	Rice Lake 381 Synergy 215695 LCD Digital Weight Legal for trade IP54 AA Alkaline Battery, add $256.75
	Rice Lake 381 Synergy 215696 LCD Digital Weight Legal for trade IP66 NiMH Battery, add $375.25
	Rice Lake 120 131923 LED Digital Weight Legal for Trade Indicator, add $359.45
	Rice Lake 120 Plus 103632 LCD Digital Weight Legal for trade Indicator, add $470.05
	Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V, add $572.75
	Rice Lake 480 LED Legend Series Digital Weight Indicator, add $691.25
	Rice Lake 482 LCD Legend Series Digital Weight Indicator, add $791.70
	Rice Lake 882IS Intrinsically-Safe 195091 Digital Weight Indicator with Tilt Stand - Power Sold Separate, add $1,189.50
For a full list of Rice Lake Indicators Click Here

Options Must be added with scale

(Some Factory Installed)

Indicator Column\Stand
	Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $200.00
	Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $220.00

Ramps
	Rice Lake Roughdeck HP Access Ramp 2.5 ft x 3 ft x 3.5 in, add $462.15
	Rice Lake Roughdeck HP Access Ramp 3 ft x 3 ft x 3.5 in, add $489.80
	Rice Lake Roughdeck HP Access Ramp 4 ft x 3 ft x 3.5 in, add $537.20
	Rice Lake Roughdeck HP Access Ramp 5 ft x 3 ft x 3.5 in, add $604.35
	Rice Lake Roughdeck HP Access Ramp 2.5 ft x 4 ft x 3.5 in, add $537.20
	Rice Lake Roughdeck HP Access Ramp 3 ft x 4 ft x 3.5 in, add $572.75
	Rice Lake Roughdeck HP Access Ramp 4 ft x 4 ft x 3.5 in, add $639.90
	Rice Lake Roughdeck HP Access Ramp 5 ft x 4 ft x 3.5 in, add $679.40

Pit Frame
	Rice Lake 18757 RoughDeck HP 2.5 ft x 2.5 ft Pit Frame (1,000lb - 10,000lb), add $351.55
	Rice Lake 18759 RoughDeck HP 3 ft x 3 ft Pit Frame (1,000lb - 10,000lb), add $391.05
	Rice Lake 18761 RoughDeck HP 4 ft x 4 ft Pit Frame (1,000lb - 10,000lb), add $497.70
	Rice Lake 18763 RoughDeck HP 5 ft x 5 ft Pit Frame (1,000lb - 10,000lb), add $620.15
	Rice Lake 18765 RoughDeck HP 4 ft x 5 ft Pit Frame (1,000lb - 10,000lb), add $560.90
	Rice Lake 18767 RoughDeck HP 4 ft x 6 ft Pit Frame (1,000lb - 10,000lb), add $620.15
	Rice Lake 18769 RoughDeck HP 5 ft x 6 ft Pit Frame (1,000lb - 10,000lb), add $683.35
	Rice Lake 18771 RoughDeck HP 5 ft x 7 ft Pit Frame (1,000lb - 10,000lb), add $730.75

The Toughest, Most Accurate Floor Scale Available

The RoughDeck HP?s best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000 to 10,000 pound capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications.

The RoughDeck HP?s NEMA Type 4X aluminum TuffSeal junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

RoughDeck HP is the industry leader for precision weighing

The RoughDeck HP?s best-in-class features are enhanced to deliver more reliability and higher performance than ever before. Available in 1,000 to 30,000 lb capacities, the RoughDeck HP is the industry leader for precision weighing in Legal for Trade applications.

The RoughDeck HP?s NEMA 4X aluminum TuffSeal junction box is protected from forks and industrial abuse by a 6-inch structural steel channel frame and diamond treadplate safety deck. The junction box is also mounted as a handy slide-out tray that eases setup and service access. Cables include sturdy cord grips or a quick disconnect for added convenience. In addition, all load cell cables are enclosed in conduit, alleviating danger of rough handling. All load cells are recessed within the channel for protection on all sides, while maintaining easy access for leveling.

All of the RoughDeck floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation and servicing the scale. The lifting holes are not the same size on all of our scales. Please view the Lifting Eyebolt Table found on the Resources/Downloads tab of this product page to determine the standard size and quantity of eyebolts needed for your scale.

Heavy-duty industrial design
Structural steel channel frame
4 NTEP Certified alloy steel, shear beam load cells
20 ft SURVIVOr EL147HE hostile environment load cell cable
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
Side-access junction box
Rugged diamond deck safety treadplate
4 adjustable stainless steel SUREFOOT? support feet
4 corner overload stops (Canadian versions only)
Level bubble (Canadian versions only)

Model with Quick Connect	HP-25X25-2K	HP-3X3-1K	HP-3X3-2K	HP-3X3-5K	HP-4X4-1K	HP-4X4-2K	HP-4X4-5K	HP-4X4-10K
	66318	66320	66317	105300	66319	67618	66316	66315
	$1,556.10	$1,556.10	$1,556.10	$1,556.10	$1,653.60	$1,653.60	$1,653.60	$1,653.60
Capacity x Readability	2000 x 0.5 lb	1000 x 0.2 lb	2000 x 0.5 lb	5000 x 1 lb	1000 x 0.2 lb	2000 x 0.5 lb	5000 x 1 lb	10000 x 2 lb
Size	2.5 ft x 2.5 ft x 3.5 in	3 ft x 3 ft x 3.5 in	3 ft x 3 ft x 3.5 in	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in
Legal For Trade	NTEP CC 92-001, Class III 5000 d
Cable Length	20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt	Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited)	RoughDeck HP weldment five years, load cells two years, all other components one year
Pallet Jacks	Not recommended for use with pallet jacks				-
APPROVALS	NTEP FM Approved (when ordered with FM Approved Load Cells)

Model with Quick Connect	HP-4X5-5K	HP-4X5-10K	HP-4X6-5K	HP-4X6-10K	HP-5X5-5K	HP-5X5-10K	HP-5X6-5K	HP-5X6-10K	HP-5X7-5K	HP-5X7-10K
	66314	66313	66312	66311	66310	66309	66308	66307	66306	66305
	$1,817.40	$2,410.10	$1,957.80	$2,548.70	$1,985.10	$2,575.65	$2,191.80	$2,933.70	$2,329.25	$3,099.25
Capacity x Readability	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb
Size	4 ft x 5 ft x 3.5 in	4 ft x 5 ft x 3.5 in	4 ft x 6 ft x 3.5 in	4 ft x 6 ft x 3.5 in	5 ft x 5 ft x 3.5 in	5 ft x 5 ft x 3.5 in	5 ft x 6 ft x 3.5 in	5 ft x 6 ft x 3.5 in	5 ft x 7 ft x 3.5 in	5 ft x 7 ft x 3.5 in
Legal For Trade	NTEP CC 92-001, Class III 5000 d
Cable Length	20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt	Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited)	RoughDeck HP weldment five years, load cells two years, all other components one year
APPROVALS	NTEP FM Approved (when ordered with FM Approved Load Cells)

Model with Quick Connect	HP-3X3-1KG	HP-4X4-25KG	HP-4X4-5KG	HP-5X5-25KG	HP-5X5-5KG	HP-5X7-25KG	HP-5X7-5KG
	66464	66465	66466	66467	66468	66469	66470
	$1,556.10	$1,653.60	$1,653.60	$1,985.10	$2,575.65	$2,329.25	$3,099.25
Capacity x Readability	1000 x 0.2 kg	2500 x 0.5 kg	5000 x 1 kg	2500 x 0.5 kg	5000 x 1 kg	2500 x 0.5 kg	5000 x 1 kg
Size	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in	5 ft x 5 ft x 3.5 in	5 ft x 5 ft x 3.5 in	5 ft x 7 ft x 3.5 in	5 ft x 7 ft x 3.5 in
Legal For Trade	Measurement Canada AM-4827, Class III 5,000 d
Cable Length	20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt	Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited)	RoughDeck HP weldment five years, load cells two years, all other components one year
Pallet Jacks	Not recommended for use with pallet jacks	-
APPROVALS	Measurement Canada FM Approved (when ordered with FM Approved Load Cells)/TD>
