Rice Lake 380-Synergy Roughdeck Floor Scales
Utilize the 380 Synergy Series indicator for straightforward weighing systems including portable warehouse scales, material handling applications and more. The 380 can easily mount almost anywhere, making weight data visible exactly where you need it.
Rice Lake Scales > Industrial Scales > Floor Scales

Indicator:
380 Synergy


Legal For Trade*	Select Models Only

Have Questions?

email Us

Our Staff will be glad to help

Specifications Chart

Utilize the 380 Synergy Series indicator for straightforward weighing systems including portable warehouse scales, material handling applications and more. The 380 can easily mount almost anywhere, making weight data visible exactly where you need it.

Durable Construction
A stainless steel, IP66 enclosure means the 380 Synergy is dust-tight and can stand up to high-pressure water. A bright, six-digit LCD display makes weight data easy to see.

Powerful, Straightforward Operation
The 380 Synergy is battery powered, providing up to 100 hours of continuous use. A five-button keypad makes operation quick and simple while RS-232 and USB ports make it easy to connect to peripheral equipment. Configurable print formats allow you to print only the most important information to your application. Optional date/time and external power supply are also available to meet the needs of your application.

LCD display, six-digits 1 in (25 mm) tall
Alkaline battery powered; requires 4 C-cell batteries (not included)
Push button and keyed tare
Two communication ports, RS-232 (three-wire), USB 2.0
Five tactile buttons
Configurable print formats
304 stainless steel, IP66 rated enclosure

OPTIONAL

Time/date
External power supply

Standard Features

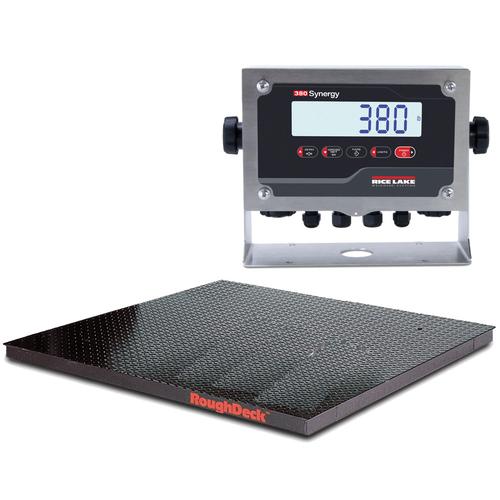

Package includes: RoughDeck HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 380 indicator
Package is factory-calibrated for 5,000 divisions Scale
Heavy-duty design with structural steel under support
Four NTEP certified alloy steel shear beam load cells
Side-access JB4SS TuffSeal® junction box Indicator
LCD display
Communication ports

Rice Lake Roughdeck Floor Scales

Model

Optional for Digital Scales

	Rice Lake 126384 Indicator Floor Stand Steel Painted 48 inch, add $220.00
	Rice Lake 19352 Indicator Floor Stand Steel Painted 36.3in, add $200.00
	Rice Lake Floor anchor plates, mild steel (set of 2), add $34.00
	Rice Lake Roughdeck HP Access Ramp 4 ft x 3 ft x 3.5 in, add $592.50
Full list of Options

RoughDeck Specifications End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb Cable Length:
20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting
Warranty (limited):
Weldment: Five-years
Load cells: Two-years
All other components: One-year Approvals: NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d 380 Specifications
Power: Batteries: 4 alkaline C-cell (not included) Optional: 115/230 VAC to 12 VDC adapter
Battery Life: 45 hours, continuous use on alkaline batteries with four 350 ohm load cells, low backlight
Communication Ports: One RS-232 (three-wire) One USB 2.0 (device)
Display: Six 1 in (25 mm) tall, LCD digits
Annunciators: g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
Keys/Buttons: 5 tactile buttons
Rating/Material: Enclosure: IP66, 304 stainless steel
Approvals: NTEP CC 21-051, CE Marked, cULus Listed

Model	380-25X25-2K	380-3X3-1K	380-3X3-2K	380-3X3-5K	380-4X4-1K	380-4X4-2K	380-4X4-5K	380-4X4-10K
Model	380-66318	380-66320	380-66317	380-105300	380-66319	380-67618	208558	208585
	$2,191.05	$2,191.05	$2,191.05	$2,191.05	$2,292.45	$2,292.45	$2,285.40	$2,285.40
Stainles Steel Models	380-18663	380-46239	380-18664	-	380-46241	-	380-18665	380-18666
Stainles Steel Models	$3,097.95	$3,490.65	$3,490.65	-	$4,761.15	-	$4,761.15	$6,576.15
Capacity x Readability	2000 x 0.5 lb	1000 x 0.2 lb	2000 x 0.5 lb	5000 x 1 lb	1000 x 0.2 lb	2000 x 0.5 lb	5000 x 1 lb	10000 x 2 lb
Size	2.5 ft x 2.5 ft	3 ft x 3 ft	3 ft x 3 ft	3 ft x 3 ft	4 ft x 4 ft	4 ft x 4 ft	4 ft x 4 ft	4 ft x 4 ft
Base Hight	3.5 in
Legal For Trade	Base: NTEP CC 92-001, Class III 5000 d - Indicator: NTEP CC 21-051, Class III/IIIL, 10,000 d
Power	Batteries: 4 alkaline C-cell (not included) Optional: 115/230 VAC to 12 VDC adapter
Power Consumption	6 W max with optional external power adapter
Communication Ports	One RS-232 (three-wire) One USB 2.0
Annunciators	g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
Display	Six 1 in (25 mm) tall, LCD digits
Keys/Buttons	5 tactile buttons
Indicator Rating/Material	IP66 / Stainless steel
Indicator Weight	6.25 lb (3 kg)
Indicator Dimensions	(L x W x H) 11.58 x 74.53 x 8.57 in - (294 x 115 x 218 mm)
Cable Length	20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt	Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited)	RoughDeck HP weldment five years, load cells two years, all other components one year
Pallet Jacks	Not recommended for use with pallet jacks				-
Warranty	Two-year limited

Model	380-4X5-5K	380-4X5-10K	380-4X6-5K	380-4X6-10K	380-5X5-5K	380-5X5-10K	380-5X6-5K	380-5X6-10K	380-5X7-5K	380-5X7-10K
Model	380-66314	380-66313	380-66312	380-66311	380-66310	380-66309	380-66308	380-66307	380-66306	380-66305
	$2,464.05	$3,086.40	$2,612.25	$3,232.70	$2,643.45	$3,263.50	$2,857.95	$3,636.95	$3,001.70	$3,810.20
Stainles Steel Models	380-18667	380-18668	-	-	380-18671	380-18672	-	-	380-18675	380-18676
Stainles Steel Models	$5,299.35	$9,716.30	-	-	$6,648.35	$8,388.75	-	-	$8,628.15	$10,885.35
Capacity x Readability	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb	5000 x 1 lb	10000 x 2 lb
Size	4 ft x 5 ft	4 ft x 5 ft	4 ft x 6 ft	4 ft x 6 ft	5 ft x 5 ft	5 ft x 5 ft	5 ft x 6 ft	5 ft x 6 ft	5 ft x 7 ft	5 ft x 7 ft
Base Hight	3.5 in
Legal For Trade	Base: NTEP CC 92-001, Class III 5000 d - Indicator: NTEP CC 21-051, Class III/IIIL, 10,000 d
Power	Batteries: 4 alkaline C-cell (not included) Optional: 115/230 VAC to 12 VDC adapter
Power Consumption	6 W max with optional external power adapter
Communication Ports	One RS-232 (three-wire) One USB 2.0
Annunciators	g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net
Display	Six 1 in (25 mm) tall, LCD digits
Keys/Buttons	5 tactile buttons
Indicator Rating/Material	IP66 / Stainless steel
Indicator Weight	6.25 lb (3 kg)
Indicator Dimensions	(L x W x H) 11.58 x 74.53 x 8.57 in - (294 x 115 x 218 mm)
Cable Length	20 ft (6.1 m) for connecting junction box to indicator
Threaded Eyebolt	Hole (1/2-20NF) located in center of deck for easy lifting
Warranty (limited)	RoughDeck HP weldment five years, load cells two years, all other components one year
Warranty	Two-year limited
