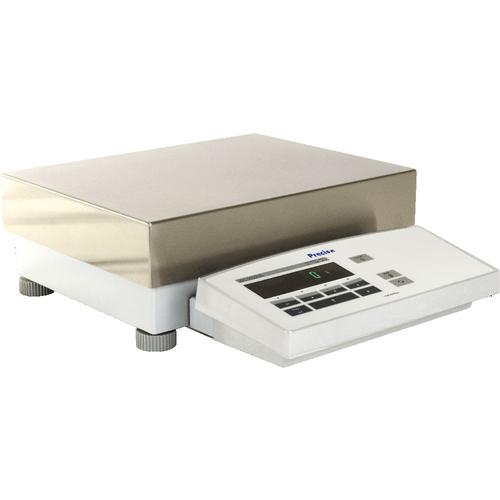

The Precisa IBK 490 Series range of industrial scales stands for outmost Swiss precision. Built for all areas of industrial weighing where high precision is required. Exceptional performance features and built-in automatic self calibration system gives users full confidence in achieving accurate weighing results – approved and certified.
The wide range of integrated applications makes the Series 490 first choice for every conceivable industrial weighing application. Ease-ofuse included
The finest electro-magnetic force restoration system, which conforms to the highest metrological standards, secure that all weighing results are absolutely reliable.
User-friendly indicator. Standard keyboard layout with 10 keys. 4 freely definable function keys. Large digital display, 20 digit display information line. Vacuum fluorescent display. Weighing-in guide +/- Applications included: weight unit switching, counting, percent weighing, net totals, check weighing, animal weighing, totalisation, statistics, calculation, area weight calculation, Multi-User Memory (MUM).
Counting: advanced parts counting with
multiple memory functions
Extended counting and storage functions with 1000 product storage
positions, 250 stored tare-weights, nominal and tolerance values.
Totalization, definition of print format, memory protection.
FPVO: Check and reference weighing of finished
products during the production process,
Establishing under or over filling using 500 article storage positions,
500 daily and weekly statistics, average tare weight calculation,
machine identification, print format definition, memory protection
SCS fully automatic self-calibration system
The PREMIUM 490 Series is equipped with a fully automatic time
and temperature controlled internal calibration system (SCS).
The SCS can be set to provide regular calibration at predetermined
times or temperature changes in accordance with ISO and GLP
guidelines. Additionally external calibration can be achieved via the
Intelligent Calibration Mode (ICM) with a choice of external weights.
IP65 Protection
The PREMIUM 490 Series is available with IP65 industrial protection
as an option. IP65 protects against ingress of dust and water
splashes. The balance is fitted with a protective keyboard.

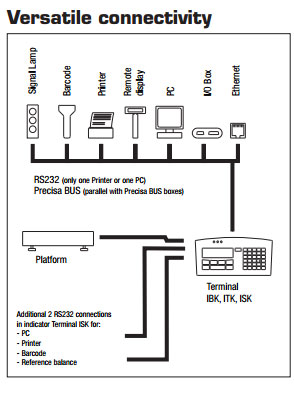

Connectivity
The standard interface can work as RS232 or as Precisa BUS.
RS232 for single connection of:
- Printer
- PC
Precisa BUS boxes for parallel connection of: (please call us 800-832-0055 for more info)
- Printer
- PC
- Signal Lamp
- Barcode scanner
- Remote display
- I/O Box
- Ethernet
| Series |
IBK-12000D-SCS
1-490-9528-001 |
IBK-24000D-SCS
1-490-9530-001 |
IBK-34000D-SCS
1-490-9531-001 |
| Price |
$4,640.57
|
$5,490.20
|
$6,557.12
|
| Capacity x Readability |
12100 x 0.1 g |
24100 x 0.1 g |
34100 x 0.1 g |
| Repeatabulity (Std. Dev.) |
0.1 g |
| Recommended Minimun Load |
1 g |
| Linearity |
0.2 g |
| Sensitivity Drift |
(10...30ºC) 2.0 ppm / ºC |
| Weighing Units |
g, mg, kg, GN, dwt, ozt, oz, Lb, ct, C.M., tLH, tLM, tLT mo, Tola, Bht |
| Calibration |
Internal Calibration (SCS) |
| Available Languages |
English, German, French |
| Normal Operating Environment |
(30ºC) at 85% RH non-condensing |
| Ultimate Operating Environment |
0ºC to 40ºC at 70% RH non-condensing for SCS equipped units |
| Tare Range |
100% Subtractive |
| Stabilization Time |
2 s |
| Construction |
Steel and Stainless Steel plater |
| Display |
Vacuum Fluorescent Display |
| Pan Size |
15.7 x 11.8 inch - 400 x 300 mm |
| Draft Shield Internal Dims (WxDxH)) |
- |
| Overall Dims (WxDxH)) |
400 x 465 x 150 mm
15.7 x 18.3 x 5.9 in |
| Connectivity |
USB RS-232 |
| Net Weight |
33 lb - 15 kg |
|
