The original signature Challenger packaging has been upgraded to NEMA 4 / IP65 levels. Manufactured in the USA in strict compliance with the highest Safety Standards, Challenger continues to sustain minimum 200% safe and 500% ultimate load ratings
A Wireless, Digital Crane Scale
The Industry Standard for Overhead Weighing
After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.

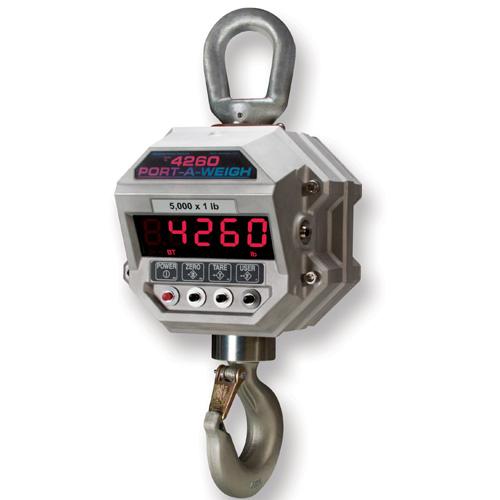

MSI-4260 Port-A-Weigh Industrial Crane Scale
Multi-color LED display
Top lifting eye or shackle, bottom thrust bearing swivel hook
12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
Options (Contact Scalesgalore for application consultation)
Rugged remote control (control for On/Off, Zero, Tare and other functions)
RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend™ and LaserLight2 remote display. Typically 100 to 300 ft, line of sight; for longer range consult factory
Anti-heat shielding for high temperature applications
Substitute bottom swivel hook with shackle
Oversized top lifting eye or shackle
Oversized bottom hook
Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
Wi-Fi communication is available for specialty applications and for use with the ScaleCore Webserver
Low headroom top adapter
Audible alarm
Custom top and bottom interfaces
Factory Mutual and ATEX approved intrinsically safe models available
12 Volt rechargeable battery (115/230 VAC battery charger is included)
Operating Time
Up to 200 hours between charging with typical use, less with optional RF modem
Operating Temperature Range
-40o F to 122oF (-40o C to 50oC)
Certified: 14 oF to 104 oF (-10 oC to 40 oC)
Auto-Off Mode
Select for 15, 30, 45 minutes, 1 hour or off
Auto Sleep Mode
Power down during non-use and power up with weight change or any key press
Service Counters
Counts number of lifts over percentage of capacity and lifts over capacity
Filtering
OFF, LO, HI-1, HI-2 selectable
Warranty
One-year limited
OLD MSI-4260B Models Industry’s original standard for accurate, reliable and safe overhead weighing.
Introduced in 1980, the MSI-4260 Port-A-Weigh established the original industry standard for accurate, reliable, and safe overhead crane weighing. After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with “ScaleCore” technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions
Options and Accessories
Heat shield for hot-metal and high temperature applications (contact factory for operating specifications)
Substitute shackle for bottom swivel hook (for possible headroom loss reduction)
Oversized top lifting eye or shackle (for oversized crane hook interface)
Factory Mutual Approved (intrinsically safe for use in hazardous environments): Class I, II, III; DIV. 1, Group C, D, E, F, & G; DIV. 2, Group A, B, C, D, & G (Pending)
802.11 b/g wireless module
Retrofit Kit: Upgrade previous MSI-4260 to new generation MSI-4260 with ScaleCore
Model
MSI-4260B-500 139460
MSI-4260B-2000 139461
MSI-4260B-5000 139462
MSI-4260B-10000 139463
MSI-4260B-20000 139464
MSI-4260B-30000 139465
MSI-4260B-50000 139466
MSI-4260B-70000 139467
MSI-4260B-100000 139468
Capacity x Readability
500 x 0.2 lb
2000 x 1.0 lb
5000 x 1.0 lb
10,000 x 2.0 lb
20,000 x 5.0 lb
30,000 x 10 lb
50,000 x 10 lb
70,000 x 20 lb
100,000 x 20 lb
250 x 0.1 kg
1000 x 0.5 kg
2500 x 0.5 kg
5000 x 1.0 kg
10,000 x 2.0 kg
15,000 x 5.0 kg
25,000 x 5.0 kg
35,000 x 10 kg
50,000 x 10 kg
NTEP Legal for Trade
YES
YES
YES
YES
YES
YES
YES
YES
-
Measurement Canada
YES
YES
YES
-
-
-
-
-
-
Legal for Trade
NTEP CC 19-122: 500 to 70,000 lb Measurement Canada AM-6198: 500 to 5,000 lb
Accuracy
+ 0.1% of applied load +1d
enclosure
NEMA 4, IP66 marine grade 356 alloy anodized cast aluminum
Lifting Eye, Shackle & Hook
Crosby ® or equal with 360o thrust-bearing swivel hook
Design Overload
200% Safe / 500% Ultimate (except as noted)
Functions
Power: Turns Unit ON or OFF Zero: Zeros applied load up to 100% of capacity (limited range in NTEP/OIML configurations) Tare: Tares applied load and displays weight in Net mode F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD
Display
Five- digit, 1.2 in (30 mm) LED with programmable brightness control
