Sartorius MA100H-000115V1 Fully Automatic Infrared Moisture Analyzer with Halogen Heater 100 g x 0.1 mg |
|
| The MA100 infrared moisture analyzer combines the highest possible accuracy of an analytical balance and practical application software all in one unit. Thanks to its extensive functions and flexibility, this analyzer optimally adapts to individual needs in daily routine analysis in research and development as well as quality control. more ... |
|
Laboratory Equipment >
Moisture Analyzers >
Moisture Analyzers
|
|
|
|
|
|
Features
The MA100 infrared moisture analyzer combines the highest possible accuracy of an analytical balance and practical application software all in one unit. Thanks to its extensive functions and flexibility, this analyzer optimally adapts to individual needs in daily routine analysis in research and development as well as quality control.

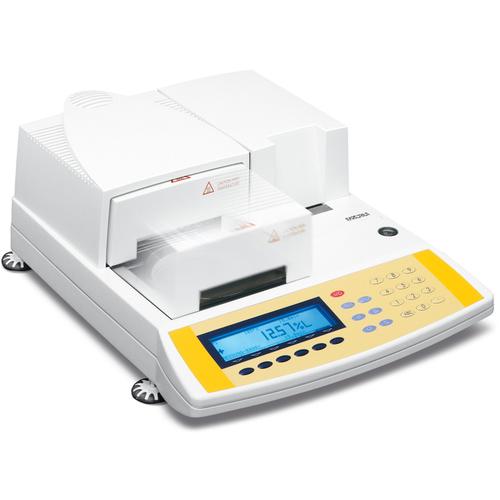

MA100H Moisture Analyzer Fully Automatic Infrared Moisture Analyzer with Halogen Heater
The moisture meter MA 100 features the highest possible measuring accuracy that a thermogravimetric moisture meter can currently offer. With the accuracy of an analytical balance, the Moisture Meter MA 100 delivers exact results within minutes and excellent reproducibility. On top of this, its extensive functions offer a high level of flexibility to meet frequently changing requirements on the parameters of different types of samples or on the sequence of analysis. The moisture meter MA 100 is ideal for quality control and research and development.
- Measurement of the moisture content from 0.005 % to 100 %
- Weighing capacity of 100 g with 0.1-mg weight resolution
- Automatic endpoint searching/automatic programming to determine the best possible parameters at the touch of a key
- Fast heating of a sample by choice of ceramic heating element, a halogen lamp or a CQR-coiled quartz radiator, all of which are infrared heaters
- Fast and easy control of the accuracy through DIN/ISO-compliant self-testing and self-calibrating capabilities thanks to the built-in calibration weight, reproTEST function and temperature adjustment set (accessory)
- Time-saving and convenient alternative to a drying oven
- Comprehensive range of options for flexible adaptation to various drying tasks
- Ideally suited for ambitious measuring tasks in the fields of quality control or research
- Utmost safety due to self-calibrating system and full GMP suitability
- Ideally suited for samples with high moisture content due to quick control behaviour
|
|
Other Sartorius LMA Moisture Analyzers
|
Specifications
| Model |
MA100H-000115V1 |
| Max. weighing capacity |
100 g |
| Repeatability, typical |
Starting at an initial sample weight of approx. 1 g: ± 0.1%
starting at an initial sample weight of approx. 5 g: ± 0.02% |
| Readability |
1 mg, 0.01%
0.1 mg, 0.001% |
| Typical sample quantity |
5 – 15 g |
| Reading display |
% moisture content (optionally available with conversion factor) , % dry weight , RATIO value , mg weight loss , g residue , g/kg residue , g/l residue |
| Temperature range and settings |
30oC–180oC, stand-by temperature selectable from 30–100oC in increments of 1 degree |
| Sample heating |
Infrared heating using a halogen round heater |
| Heating programs |
Standard, quick, gentle and phase drying |
| Shutoff criteria |
Optional:
- Fully automatic
- SPRM mode (optimization to a reference system)
- Semi-automatic (1–50 mg/5–300 sec.)
- Semi-automatic (0.1–5.0%/5–300 sec.)
- Timer setting (3+ 0.1–999 min.)
- Timer setting + fully/semi-automatic (2+ 0.1–999 min. + automatic)
- Manual
|
| Access to sample chamber |
Motorized cover |
| Measuring program |
30 programs saved in a non-volatile memory (freely selectable parameters) |
| Data storage |
Result statistics for the last 9999 measurements/program |
| Operator guidance features |
Menu-driven, alphanumeric dialogue text (5 languages selectable) |
| Parameter | data entry |
- Optimized text entry via softkeys
- Numeric entry via keypad
- Optional data entry via barcode scanner
|
| Report printout |
Printout using the optional, internal printer YDP01MA
Configurable GLP-report for measuring results | calibration | adjustment (5 languages selectable)
|
| Test equipment monitoring |
Internal calibration weight– Automatic reproTEST for the weighing system
Automatic temperature calibration with optional temperature adjustment set YTM03MA
Documentation in accordance with the applicable quality assurance requirements
|
| Safety |
Parameter settings password-protected against unauthorized access |
| Voltage frequency |
48-60 Hz |
| Power consumption |
Max. 700 VA |
| Operating temperature range |
10oC - 30oC |
Housing dimensions
(W + D + H) |
350 + 453 + 156 mm |
| Weight |
Approx. 8.0 kg |
| Equipment Supplied |
Moisture analyzer with data interface
Power cord
User manual
80 alu sample pans
In-use dust cover for keypad
1 pair of forceps
Laminated short
form manual (6 languages
) |
Accessories
- 6965542 Disposable sample pans, 80 units, aluminum, round, d 90 mm
- 6906940 Fiberglass pad, d 90 mm for pasty and fatty samples, hard quality, 80 units
- 6906941 Fiberglass pad, d 90 mm for liquid and fatty samples, soft quality, with high suction force, 200 units
- YAT01MA Single-use pipettes for weighing liquid samples, 500 units
- YSC02 SartoCollect, software for data communication between moisture analyzer and PC (connecting cable must be ordered separately) Prerequisite: MS Windows 2000 | Windows XP Professional, Vista Ultimate, Windows 7 Ultimate.
- YCW4528-02 External calibration weight, 50 g (E2) with DKD certificate
- YTM03MA Temperature adjustment set with manufacturer certificate for adjustment of the heat source
- YDP01MA Data printer, suitable for integration
- DP20-0CE Data printer, suitable for external verification, with date, time, statistics, numerator including cable
- 6906918 Ink ribbon for data printer
- 6906937 Paper rolls for data printer, 5 rolls, 50 m each
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
Sartorius 6906937 5 rolls of Printer paper YDP20-0CE
Paper for Sartorius YDP20-0CE printers. Large size (internal) package of 5 rolls
|
|
more info
|

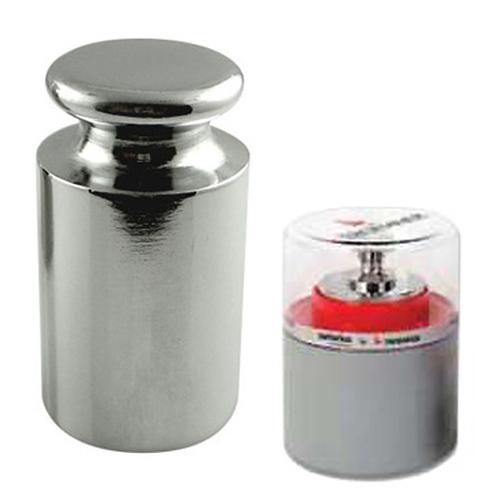

Sartorius WI050GAC1C, Individual Calibration Weights NVLAP CERTIFICATE, ANSI/ASTM E617 - Class 1 - 50g
These Sartorius Calibration Weights are sold individually with a choice of No Certificate, Traceabililty Certificate, or with a Certificate of Calibration. Your choice of Certificates determine the price of your calibration weight.
What is ASTM?
ASTM stands for American Society of Testing and Materials. The ASTM is an international organization that establishes and develops methods for testing materials. ASTM weights and weight sets are made to the tolerance, construction, finish, and magnetism set by them. ASTM requires that weights be made of one piece (no fillers or air to compensate for small adjustments). ASTM weights are recommended for calibrating other weights or high resolution balances.
What is a Traceable Certificate?
Many weights and weight sets are available with traceable certificates as an additional option. These certificates are issued by laboratories and manufacturers that are accredited by NIST/NVLAP, ASTM, and/or OIML depending on the type of weight, manufacturer, and class. These certificates are traceable to NIST and contain information such as type of weight, weight class, density, uncertainty, and environmental conditions at the time of calibration.
What is NVLAP?
The National Voluntary Laboratory Accreditation Program (NVLAP). This program evaluates and accredits laboratories in their respective fields and ensures they meet ISO standards.
| Weight |
Model W/O Cert |
|
|
Model With Traceable Cert |
|
|
Model With NVLAP Cert |
|
|
| 1mg |
WI001MAC1N |
|
|
WI001MAC1T |
|
|
WI001MAC1C |
|
|
| 2mg |
WI002MAC1N |
|
|
WI002MAC1T |
|
|
WI002MAC1C |
|
|
| 3mg |
WI003MAC1N |
|
|
WI003MAC1T |
|
|
WI003MAC1C |
|
|
| 5mg |
WI005MAC1N |
|
|
WI005MAC1T |
|
|
WI005MAC1C |
|
|
| 10mg |
WI010MAC1N |
|
|
WI010MAC1T |
|
|
WI010MAC1C |
|
|
| 20mg |
WI020MAC1N |
|
|
WI020MAC1T |
|
|
WI020MAC1C |
|
|
| 30mg |
WI030MAC1N |
|
|
WI030MAC1T |
|
|
WI030MAC1C |
|
|
| 50mg |
WI050MAC1N |
|
|
WI050MAC1T |
|
|
WI050MAC1C |
|
|
| 100mg |
WI100MAC1N |
|
|
WI100MAC1T |
|
|
WI100MAC1C |
|
|
| 200mg |
WI200MAC1N |
|
|
WI200MAC1T |
|
|
WI200MAC1C |
|
|
| 300mg |
WI300MAC1N |
|
|
WI300MAC1T |
|
|
WI300MAC1C |
|
|
| 500mg |
WI500MAC1N |
|
|
WI500MAC1T |
|
|
WI500MAC1C |
|
|
| 1g |
WI001GAC1N |
|
|
WI001GAC1T |
|
|
WI001GAC1C |
|
|
| 2g |
WI002GAC1N |
|
|
WI002GAC1T |
|
|
WI002GAC1C |
|
|
| 3g |
WI003GAC1N |
|
|
WI003GAC1T |
|
|
WI003GAC1C |
|
|
| 5g |
WI005GAC1N |
|
|
WI005GAC1T |
|
|
WI005GAC1C |
|
|
| 10g |
WI010GAC1N |
|
|
WI010GAC1T |
|
|
WI010GAC1C |
|
|
| 20g |
WI020GAC1N |
|
|
WI020GAC1T |
|
|
WI020GAC1C |
|
|
| 30g |
WI030GAC1N |
|
|
WI030GAC1T |
|
|
WI030GAC1C |
|
|
| 50g |
WI050GAC1N |
|
|
WI050GAC1T |
|
|
WI050GAC1C |
|
|
| 100g |
WI100GAC1N |
|
|
WI100GAC1T |
|
|
WI100GAC1C |
|
|
| 200g |
WI200GAC1N |
|
|
WI200GAC1T |
|
|
WI200GAC1C |
|
|
| 300g |
WI300GAC1N |
|
|
WI300GAC1T |
|
|
WI300GAC1C |
|
|
| 500g |
WI500GAC1N |
|
|
WI500GAC1T |
|
|
WI500GAC1C |
|
|
| 1kg |
WI001KAC1N |
|
|
WI001KAC1T |
|
|
WI001KAC1C |
|
|
| 2kg |
WI002KAC1N |
|
|
WI002KAC1T |
|
|
WI002KAC1C |
|
|
| 3kg |
WI003KAC1N |
|
|
WI003KAC1T |
|
|
WI003KAC1C |
|
|
| 5kg |
WI005KAC1N |
|
|
WI005KAC1T |
|
|
WI005KAC1C |
|
|
| 10kg |
WI010KAC1N |
|
|
WI010KAC1T |
|
|
WI010KAC1C |
|
|
|
|
more info
|
Sartorius 6906918 Ribbon, replacement for YDP03-OCE or YDP20-0CE Printer
Ink Ribbon replacement for YDP03-OCE or YDP20-0CE Printer
|
|
more info
|
Sartorius YDP20-0CE Strip Printer, with statistics, date, and time functions
The YDP20-0CE data printer is designed to receive
weighing data from a connected weighing instrument
and print it on plain paper (roll width:
57.5 mm), with up to 24 characters per line.
The data printer is equipped with a real-time clock.
After the printer has been configured according to
the required settings, it is suitable for use as auxiliary
apparatus in legal metrology.
The YDP20-0CE data printer meets the quality standards
of the chemical and pharmaceutical industries, in
compliance with the requirements of GLP (Good Laboratory
Practice) and GMP (Good Manufacturing Practice).
In addition to recording individual weighing data, the
data printer can generate a statistical evaluation of
weighing data. All values transferred from an on-line
weighing instrument are stored. The following can be
printed out, depending on your printer configuration:
– Number of weighing operations
– Mean value
– Standard deviation
– Variation coefficient
– Lowest measured value
– Highest measured value
– Difference between lowest and highest measured values
– Date and time
Data is transferred either automatically or manually, at
the press of a key.
The following can be computed/printed out:
- Number of weighing operations
- Mean value
- Standard deviation
- Variation coefficient
- Minimum value/weight
- Maximum value/weight
- Difference between the maximum and minimum value/weight
Data are transferred either automatically or manually by pressing a key.
Built-in real-time clock
Built-in statistics program. These programs can be individually selected to meet your needs.
Counter for consecutive numbering of transactions can be activated.
High contrast LCD that shows the date or time as well as the current transaction number.
Integrated rechargeable batteries with battery level indicator.
Ultrafast print head.
Runs on the balances power, no separate power supply necessary.
Easy to change paper roll and ink ribbon cassette.
|
|
more info
|

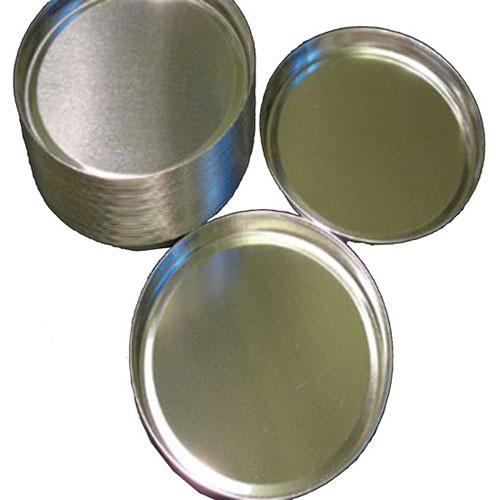

Sartorius 6965542 - Disposable Aluminum Sample Pans, 90 mm, 80 pcs for MA Series
Disposable Aluminum Sample Pans, 90 mm, 80 pcs for Sartorius MA Series Moisture Analyzers.
|
|
more info
|

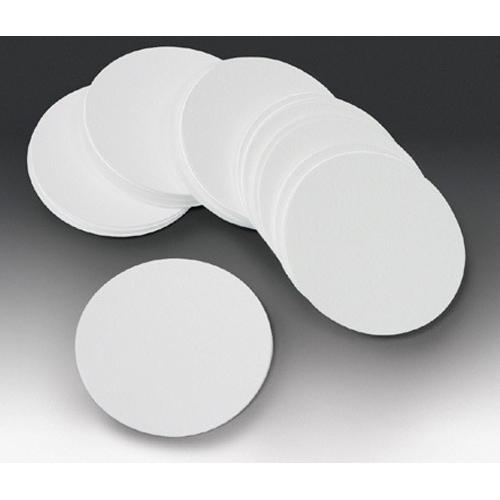

Sartorius 6906941 - Glass fiber pads 90mm circles (200/pkg)
Sartorius 6906941 - Glass fiber pads 90mm circles (200/pkg)
|
|
more info
|

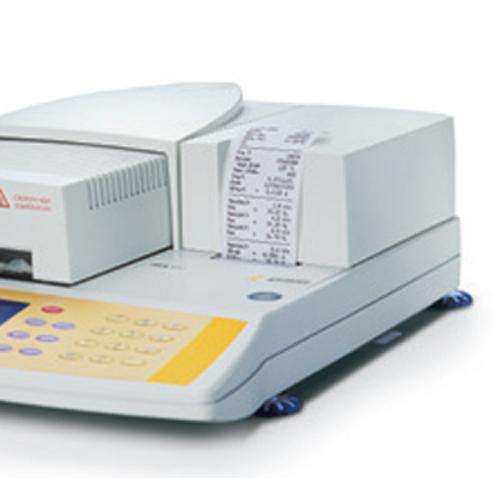

Sartorius YDP01MA Data printer, suitable for integration
Sartorius YDP01MA Data printer, suitable for integration
|
|
|
|
|
|
|
|
|
