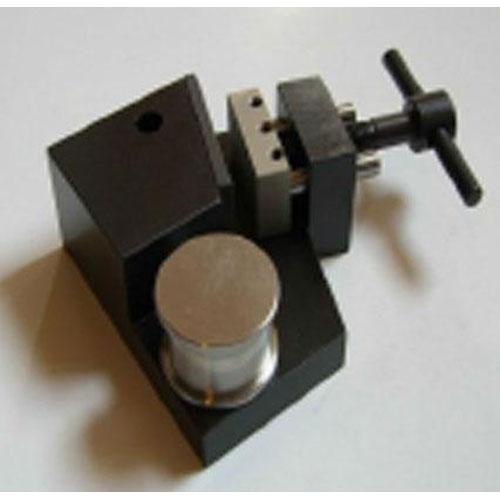

Chatillon 01/4625 - 5kN, Wire, Yarn And Thread Grip, Cross-Cut Faces With Bollard |
|
A thin rope, yarn and thread bollard grip, ideally it should be used with an extensometer to calculate true strain in the sample. Pneumatic versions are available. The 01/4625 is designed for the tensile strength of fibers, wires, yarns, threads and ropes it is fitted with a crosscut face as standard with no optional faces more ... |
Test Equipment >
Grips and Attachments >
Wire - Rope - Yarn - Tubing
|
|
Have Questions? Our Staff will be glad to help |
|
|
|
|
|
|
|
Features
A thin rope, yarn and thread bollard grip, ideally it should be used with an extensometer to calculate true strain in the sample. Pneumatic versions are available
The 01/4625 is designed for the tensile strength of fibers, wires, yarns, threads and ropes it is fitted with a crosscut face as standard with no optional faces
01/4625 |
Screw action with crosscut face 30mm x 15mm |
Maximum Sample Width |
15mm |
Maximum Sample Diameter |
5mm |
Jaw Opening |
5mm |
Maximum Force Rating |
5KN |
Fixing Type |
5/8 inch |
Weight |
900g |
Minimum Loadcell |
50N |
Width |
131mm |
Height |
80mm |
Depth |
30mm |
Weight:
7.00 lb
|
|
