Fairbanks Aegis Transport Scales

Fairbanks Scales
Authorized Dealer
Aegis Transport Scales feature a built-in, 'dolly' wheel design for easy portability. Simply tilt the scale back and move it to the next location. Combine the Transport with a Fairbanks battery-powered instrument for the most portable scale available.
Legal For Trade Canada Measurement
Call Us
Specifications Chart
Fairbanks Aegis Transport Scales

Specifications Chart

Fairbanks Aegis Transport Scales built-in, two-wheel design allows for easy portability - just tilt the scale back and move it to the next location. Combine the Transport with a Fairbanks battery-powered instrument for the most portable scale available. Fairbanks Aegis Transport design is totally unique to the drum scale market. You wont find another manufacturers drum scale that can compete with the Transports level of portability, rugged design and precise accuracy.

97670 EASY TO TRANSPORT
  • Choose from a variety of Fairbanks Instruments to fit your specific application need
  • Easy grip handle with no-slip polyurethane coating
  • Bubble level is located at the center of the weighing surface
  • Washdown models feature drain hole and contiguous welds
  • Large 8" diameter wheels with Polyolefin construction ensure smooth rolling action
  • Low 1.5" platform height for easy load introduction
  • Live side rail
  • Integral ramp

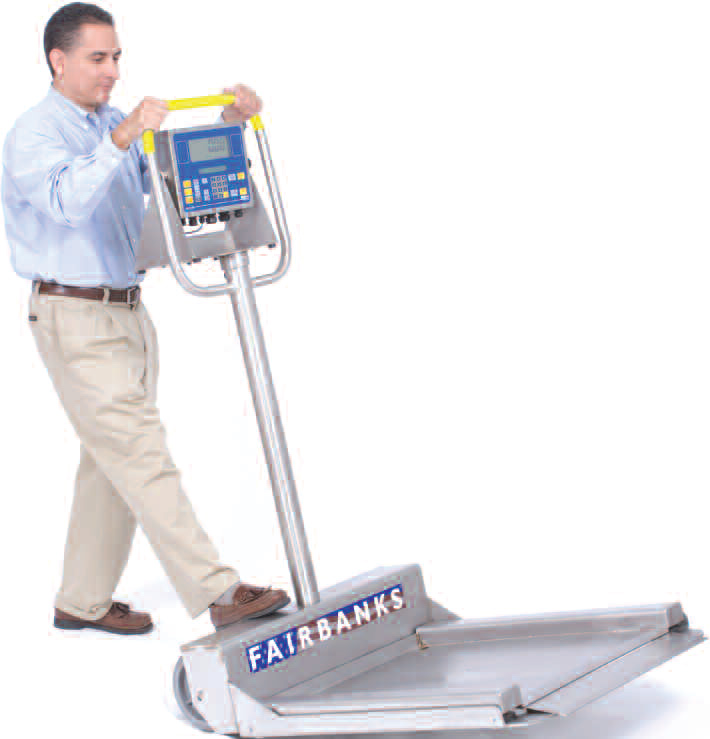

Relocate The Aegis Transport Scale in three simple steps
  1. Take hold of easy grip handle
  2. Use food to leverage scale backward
  3. Scale easily rolls to desired location. Built-in break point prevents scale from rolling when lowering platform back to level
ACCESSORIES
  • Ramp(s)
  • Ramp with integral instrument pillar
  • Stand-alone pillar
  • Wheel kit
Capacities (lbs) . . . . . . . . . . . 500, 1000, 2000, 2500

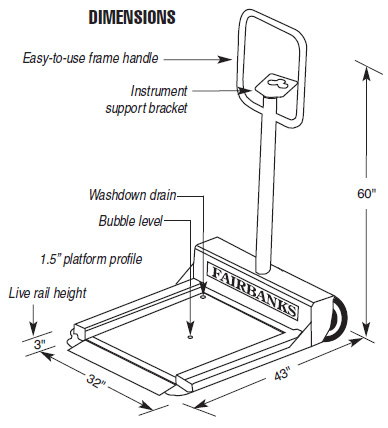

Overall dimensions . . . . . . . . 32” x 43” x 60”
Platform . . . . . . . . . . . . . . . .
Size. . . . . . . . . . . . . . . . . . . 24” x 30”
Height . . . . . . . . . . . . . . . . . 1.5” (3” live side rail)
Finish . . . . . . . . . . . . . . . . . Smooth plate
Endloading . . . . . . . . . . . . . . 100% of capacity on all models except
. . . . . . . . . . . . . . . . . . . . . . . 2500 lb. capacity, which is rated at 80%
Cable length . . . . . . . . . . . . . Platform to instrument = 7 feet
Cable protection . . . . . . . . . . PVC jacketed
Construction . . . . . . . . . . . . . Mild steel with black, powder coat finish;
. . . . . . . . . . . . . . . . . . . . . . . Type 304 PH stainless steel, brushed
Accessories . . . . . . . . . . . . . NEMA 4X J-box; intrinsically safe controller;
. . . . . . . . . . . . . . . . . . . . . . . IP69K load cells optional on mild steel scale
Approvals . . . . . . . . . . . . . . . NTEP CC# 08-044, MC #AM-5674
FB2250 Information

Fairbanks FB2250 Series Digital Instrument is a reliable choice for any industrial weighing application, from warehousing to general food processing. For batching and filling operations, system integration is easy — simply add a fieldbus accessory, such as Profibus, Ethernet or DeviceNet.

The FB2250 is also designed for convenient wireless operation with the aid of optional Bluetooth® wireless technology accessories.

Function Key Features
  • UNITS — Five selectable units (lb, kg, oz, g, lb-oz) and one programmable custom unit. Units key also used with piece count and accumulation features
  • ZERO — Quickly zero off weight on the scale
  • B/G / NET — One-push selection from Gross weight to Net weight. Also used during accumulation and piece count operations and to set sleep timer
FB2250 CUSTOMIZATION FB2250 Series Instruments can be customized to meet your specific operational needs
  • CUSTOM TICKET FORMAT A distinct ticket format can be configured to allow the FB2250 to print information that meets your requirements.
  • CUSTOM UNITS Many applications are unique and require a unique unit of measure. The FB2250 can accommodate these needs with this feature.
  • PROGRAMMABLE RS232 OUTPUT The FB2250 RS232 Output can be configured to provide serial data in a customer specified format
  • MULTI-POINT CALIBRATION The FB2250’s Multi-point Calibration function helps eliminate various linearity problems associated with platforms and tank applications
ADVANCED FUNCTIONS
  • PIECE COUNTING The FB2250 has a standard piece counting feature that turns any scale into a basic counting scale. This feature minimizes the time it takes to count parts. See sample display above.
  • ACCUMULATION This feature allows users to continuously store individual weight reading and count/total the readings whenever desired. It also minimizes or eliminates the time-consuming task of manually tracking weight
  • STRESS TESTING Certain manufacturers are required to stress test products. The FB2250 is designed to easily accomplish this task. The unit captures the highest (or peak) weight reading and stores it. The printable reading remains stored until it is manually cleared or a higher peak weight is captured by the indicator. Also known as Peak Hold, this feature provides stress test analysis that is required for ISO documentation
FB2250 SPECIFICATIONS Display . . . . . . . . . . . . . . . . . . . . . . . 1.0" high, 6-digit, green backlit LCD
Enclosure . . . . . . . . . . . . . . . . . . . . . Black ABS plastic, NEMA 1 rated;
Stainless steel, NEMA 4X rated;
Stainless steel, IP69K rated;
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless steel, Panel Mount
Pushbutton Keys. . . . . . . . . . . . . . . . Zero, Print, Units, Tare, On/Off, B/G Net
Units . . . . . . . . . . . . . . . . . . . . . . . . . lb, kg, oz, g, lb-oz or custom
Capacity . . . . . . . . . . . . . . . . . . . . . . Selectable 0 to 999,999
Graduation Size . . . . . . . . . . . . . . . . 0.0001 to 50
Load Cells. . . . . . . . . . . . . . . . . . . . . Up to eight 350Ù cells or 16 1000Ù cells
Power Requirements . . . . . . . . . . . . Choice of AC or AC/DC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . (requires 5 “D” cell batteries);
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . AC only on IP69K model
Battery life (backlight enabled) . . . . . One 350Ù load cell - 58 hours,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Four 350Ù load cells - 33 hours
Mounting. . . . . . . . . . . . . . . . . . . . . . Desk / Wall mount stand (all models)
Output. . . . . . . . . . . . . . . . . . . . . . . . COM1 (standard): RS232, RS422, RS485
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . COM2 (standard): RS232, RS422, RS485
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . and 20 mA; External DB9 on ABS model
Remote switch inputs . . . . . . . . . . . . Print, Tare, Gross/Net, Units, Zero
Accessories . . . . . . . . . . . . . . . . . . . Bluetooth® wireless technology,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20 mA module, Profibus,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ethernet/IP, Ethernet TCP, DeviceNet
Approvals . . . . . . . . . . . . . . . . . . . . . NTEP CC# 09-023, MC #AM-5720, ETL

Specifications

Model 97670 97671 97672 97673
Fairbanks 97670 Aegis Tra
$4,592.70
Fairbanks 97671 Aegis Tra
$4,592.70
Fairbanks 97672 Aegis Tra
$6,463.80
Fairbanks 97673 Aegis Tra
$6,463.80
Capacity x Readability 1000 x 0.1 lb 2500 x 0.5 lb 1000 x 0.1 lb 2500 x 0.5 lb
Construction Mild Steel Mild Steel Stainless Steel Stainless Steel
Legal For trade NTEP CC# 09-023 CC# 09-023 CC# 09-023 CC# 09-023
Legal For Trade Canada MC #AM-5720 MC #AM-5720 MC #AM-5720 MC #AM-5720
Pan Size 24 x 30 inch
Display 6 digits, 1 inch LCD, Green Backlight
Units lbs, oz, kg, g and lbs/oz, or custom
Keypad On/Off, Units, Zero, B/G, Net, Tare and Print
Protection IP67
Battery Five (5) Size “D” Alkaline batteries @ 1.5 Volts DC each
Battery life 35 hours
Temperature -10ºC to + 40ºC (+14ºF to + 104ºF)
SENSITIVITY 1ìv/d (microvolt/division)
DISPLAYED DIVISIONS 10,000d Commercial and 100,000d Non-Commercial
Approvals NTEP CC# 09-023, MC #AM-5720, ETL
Outputs PORT 1 Bidirectional Serial Port. Settings include OFF, RS232, RS422, and RS485. RS232 has 30+ updates a second
PORT 2 Port 2 is used to interface to the PC2250 program, OR to provide 20 mA passive, RS232, RS422*, or RS485
