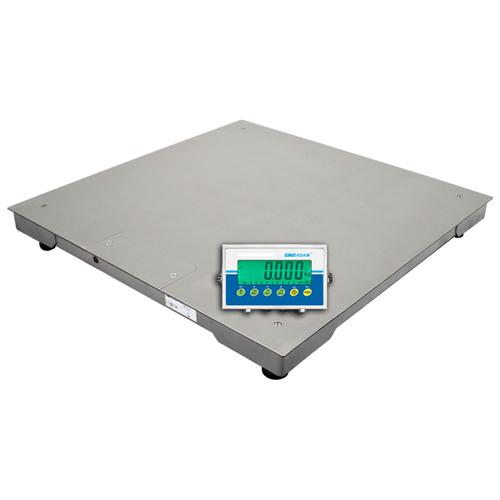

Adam Equipment PT-SS Stainless-Steel Floor Scales Adam Equipment
Authorized Dealer
The range of Stainless Steel Floor Scales from Adam offer a variety of features and combinations to meet your needs, all of which can be integrated into systems or combined with one of Adam Equipment’s many different indicators with features to suit most applications.

Specifications Chart

With rugged construction to endure demanding washdown environments, PT stainless steel platform scales provide the ultimate in durability for a variety of commercial, industrial and mining applications. Ideal for weighing food products, chemicals, pharmaceuticals or mining materials, the PT stainless steel platform features an IP66-rated load cell and stainless steel junction box, sealed for protection against water and dust. Easy to clean, the grade 304 stainless steel plate can tolerate frequent washing, while the sleek brushed surface helps prevent the accumulation of food and dirt particles.

The PT stainless steel scale is supported by a reinforced frame beneath the platform, allowing the scale to accommodate substantial loads. Offering solid, dependable stability, PT stainless steel’s heavy-duty rubber feet are adjustable to compensate for uneven weighing surfaces. Optional ramps are tailor-made to fit the exact size of each platform. PT stainless steel platform can be paired with the AE 403 indicator to provide the features and functions needed for any demanding washdown weighing task.

IP66-rated platform ideal for washdown environments

Features
  • Rugged stainless steel construction for ultimate durability
  • Approximately three-meter/10-foot shielded cable
  • Can be used with any Adam indicators
  • Heavy-duty rubber feet ensure stability of unit
  • IP66-rated for protection against water and dust
Applications
  • Weighing
  • Parts counting
  • Checkweighing
  • Dynamic / animal weighing
  • Percentage weighing
  • Display hold
  • Peak hold
Adam Equipment PT-SS Stainless-Steel Floor Scales

For a limited time only
Add to Cart to see Lower Price

Adam Equipment PT-10RS Stainless Steel Ramp for PT Series - 39.4 inch wide
Adam Equipment PT-10RS Stainless Steel Ramp for PT Series - 39.4 inch wide, add $337.50
Adam Equipment PT-12RS Stainless Steel Ramp for PT Series - 47.2  inch wide
Adam Equipment PT-12RS Stainless Steel Ramp for PT Series - 47.2 inch wide, add $375.00
Adam Equipment PT-15RS Stainless Steel Ramp for PT Series - 59.1 inch wide
Adam Equipment PT-15RS Stainless Steel Ramp for PT Series - 59.1 inch wide, add $375.00
Adam Equipment 700400103 RS-232 cable
Adam Equipment 700400103 RS-232 cable, add $35.00
Adam Equipment 1100011297 AE Relay Box
Adam Equipment 1100011297 AE Relay Box, add $185.00
Adam Equipment 600002028 AdamDU - Data Collection Program
Adam Equipment 600002028 AdamDU - Data Collection Program, add $95.00
Adam Equipment 2050013351 Indicator stand
Adam Equipment 2050013351 Indicator stand, add $166.25
Adam Equipment 3074010507 RS-232 to USB Interface Cable
Adam Equipment 3074010507 RS-232 to USB Interface Cable , add $50.00
Adam Equipment 3004013214 Light tower kit including relay box
Adam Equipment 3004013214 Light tower kit including relay box, add $722.00
Adam Equipment 3014011014 RS-232 cable M-F
Adam Equipment 3014011014 RS-232 cable M-F, add $35.00

Specifications Chart

AE 403 Indicator

AE403 IndicatorThe AE403 indicator is a stainless steel indicator that has a range of features for many different weighing applications. Whether these indicators are used outdoors, on a loading dock or in a warehouse or industrial buildings the stainless steel housing is sealed for IP67 wash down environments and the quality construction is built tough to handle even the most demanding tasks. The sleek compact design comes complete with the wall mount bracket and hardware to place it where you want it. A built-in rechargeable battery with low battery indicator, check weighing limit LED, an easy-to-use keypad with highlighted tare key and a large backlit display complete the AE403 indicator. Features
  • Large backlit LCD
  • Color coded keys
  • Rechargeable battery
  • Bi-directional RS-232 interface
  • Bracket for wall mounting
  • Hold function
  • Wash down meets IP67 standards
  • Stainless steel housing
  • Checkweighing LED lights
  • Capacity tracker
Model PT-110S-AE403 PT-112S-AE403 PT-115S-AE403 PT-310-5S-AE403 PT-312-5S-AE403 PT-315-5S-AE403 PT-310-10S-AE403 PT-312-10S-AE403 PT-315-10S-AE403
Adam Equipment PT-110S-AE
$1,740.00
ClickPrice
Adam Equipment PT-112S-AE
$2,040.00
ClickPrice
Adam Equipment PT-115S-AE
$2,360.00
ClickPrice
Adam Equipment PT-310-5S-
$1,740.00
ClickPrice
Adam Equipment PT-312-5S-
$2,040.00
ClickPrice
Adam Equipment PT-315-5S-
$2,360.00
ClickPrice
Adam Equipment PT-310-10S
$1,740.00
ClickPrice
Adam Equipment PT-312-10S
$2,040.00
ClickPrice
Adam Equipment PT-315-10S
$2,360.00
ClickPrice
Capacity x Readability 2500 x 0.5 lb 2500 x 0.5 lb 2500 x 0.5 lb 5000 x 1 lb 5000 x 1 lb 5000 x 1 lb 10000 x 2 lb 10000 x 2 lb 10000 x 2 lb
1000 x 0.2 kg 1000 x 0.2 kg 1000 x 0.2 kg 3000 x 0.5 kg 3000 x 0.5 kg 3000 x 0.5 kg 4500 x 1 kg 4500 x 1 kg 4500 x 1 kg
Pan size 39.4" x 39.4"
1000 x 1000 mm
47.2" x 47.2"
1200 x 1200 mm
59.1" x 59.1"
1500 x 1500 mm
39.4" x 39.4"
1000 x 1000 mm
47.2" x 47.2"
1200 x 1200 mm
59.1" x 59.1"
1500 x 1500 mm
39.4" x 39.4"
1000 x 1000 mm
47.2" x 47.2"
1200 x 1200 mm
59.1" x 59.1"
1500 x 1500 mm
Repeatability S.D. 1 lb / 0.4 kg 1 lb / 0.4 kg 1 lb / 0.4 kg 2 lb / 1 kg 2 lb / 1 kg 2 lb / 1 kg 4 lb / 2 kg 4 lb / 2 kg 4 lb / 2 kg
Linearity +/- 1 lb / 0.4 kg 1 lb / 0.4 kg 1 lb / 0.4 kg 2 lb / 1 kg 2 lb / 1 kg 2 lb / 1 kg 4 lb / 2 kg 4 lb / 2 kg 4 lb / 2 kg
Weighing Units g, kg, lb, lb:oz, oz, N, custom unit
Approval IP66-rated for protection against water and dust
cable 10 foot
Stabilization Time 2 Sec
Power Supply 12VDC 800mA adapter / Internal rechargeable battery
Battery Life (Hours) 90
Interface RS-232
Net Weight 136.6lb / 62kg 174.1lb / 79kg 244.6lb / 111kg 136.6lb / 62kg 174.1lb / 79kg 244.6lb / 111kg 136.6lb / 62kg 174.1lb / 79kg 244.6lb / 111kg
Calibration External calibration
Construction Stainless steel
Operating Temperature -10° to 40°C / 14° to 104°F
Display Backlit LCD with 1.6"/ 40mm -high digits
