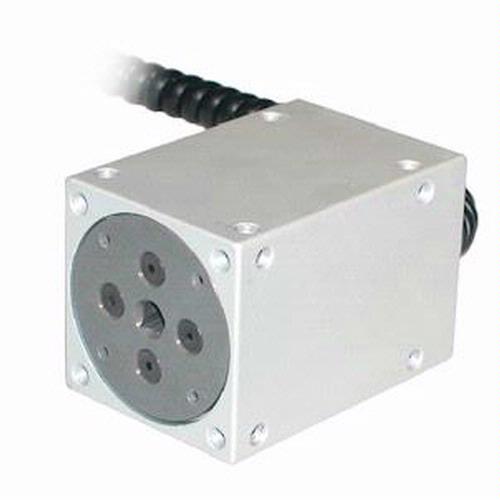

Mark-10 STC50Z Lightweight Torque Sensor for Tool Calibration, 50 x 0.05 oz-in

Mark-10 - Force and Torque Measurement Products
Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system more ...
Scales > Force Gauge > Torque Sensor
Mark-10 STC50Z Lightweight Torque Sensor for Tool Calibration, 50 x 0.05 oz-in




Call for more info
Download PDF
Mark-10 STC50Z Lightweight Torque Sensor for Tool Calibration, 50 x 0.05 oz-in
FREE Ground Shipping *


Price: $807.00


In Stock - Ships within 24 hours

View Features

Mark 10
SKU: STC50Z

Features

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 oz-in to 100 lb-in

  • Member of the BGI family of interchangeable sensors
  • Personality module holds all calibration and configuration data
  • Rugged aluminum housing
  • Universal mounting
  • May be used for torque tool calibration or as a component of a torque testing system
  • NIST-traceable certificate of calibration included
  • Accuracy: ± 0.35% of full scale ±1 digit + BGI
  • Weight: 1.2 lbs (0.5 kg)
  • Warranty: 3 years

Model Capacity x Resolution Safe Overload Price
STC10Z 10 x 0.01 oz-in, 7 x 0.005 kgF-mm, 7 x 0.005 N-cm 300% of Capacity $807
STE20Z 20 x 0.02 oz-in, 14 x 0.01 kgF-mm, 14 x 0.01 N-cm $807
STE50Z 50 x 0.05 oz-in, 36 x 0.05 kgF-mm, 35 x 0.05 N-cm $807
STC12 12 x 0.01 lbin, 140 x 0.1 kgF-mm, 135 x 0.1 N-cm 150% of Capacity $760
STC50 50 x 0.05 lbin, 580 x 0.5 kgF-mm, 570 x 0.5 N-cm $760
STC100 100 x 0.1 lbin, 1150 x 1 kgF-mm, 1150 x 1 N-cm $760
AC1006 Mounting kit, STC, table top $47
AC1014 3/8" Jacobs chuck for STC $142


Weight: 4.00 lb

* within the 48 continental US States
