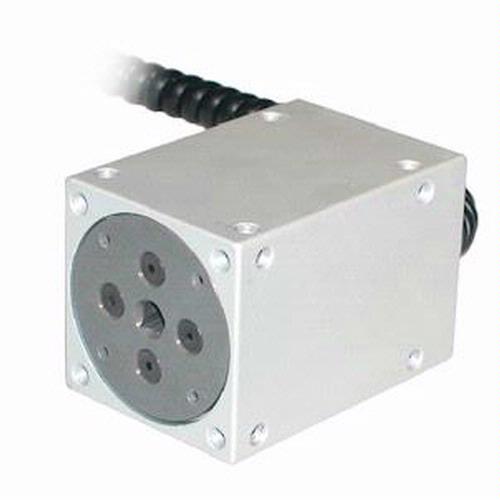

Mark-10 STC10Z Lightweight Torque Sensor for Tool Calibration, 10 x 0.01 oz-in |
|
| Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system more ... |
|
Test Equipment >
Force Gauges >
Torque Sensors
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 oz-in to 100 lb-in
- Member of the BGI family of interchangeable sensors
- Personality module holds all calibration and configuration data
- Rugged aluminum housing
- Universal mounting
- May be used for torque tool calibration or as a component of a torque testing system
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.35% of full scale ±1 digit + BGI
- Weight: 1.2 lbs (0.5 kg)
- Warranty: 3 years
| Model |
Capacity x Resolution |
Safe Overload |
Price |
| STC10Z |
10 x 0.01 oz-in, 7 x 0.005 kgF-mm, 7 x 0.005 N-cm |
300% of Capacity |
$807 |
| STE20Z |
20 x 0.02 oz-in, 14 x 0.01 kgF-mm, 14 x 0.01 N-cm |
$807 |
| STE50Z |
50 x 0.05 oz-in, 36 x 0.05 kgF-mm, 35 x 0.05 N-cm |
$807 |
| STC12 |
12 x 0.01 lbin, 140 x 0.1 kgF-mm, 135 x 0.1 N-cm |
150% of Capacity |
$760 |
| STC50 |
50 x 0.05 lbin, 580 x 0.5 kgF-mm, 570 x 0.5 N-cm |
$760 |
| STC100 |
100 x 0.1 lbin, 1150 x 1 kgF-mm, 1150 x 1 N-cm |
$760 |
| AC1006 |
Mounting kit, STC, table top |
$47 |
| AC1014 |
3/8" Jacobs chuck for STC |
$142 |
Weight:
4.00 lb
|
|
|
|
|
|
|
