Mark-10 SBC1000 Compression Force Sensors, 1000 x 0.5 lb

Mark-10 - Force and Torque Measurement Products
Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the SBC is ideal for heavy duty applications with space constraints more ...
Scales > Force Gauge > Force Sensor
Mark-10 SBC1000 Compression Force Sensors, 1000 x 0.5 lb




Call for more info
Download PDF
Mark-10 SBC1000 Compression Force Sensors, 1000 x 0.5 lb
FREE Ground Shipping *


Price: $707.75


In Stock - Ships within 24 hours

View Features

Mark 10
SKU: SBC1000

Features

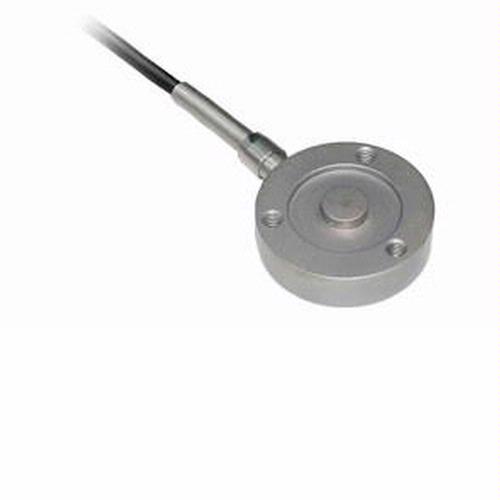

Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the SBC is ideal for heavy duty applications with space constraints

  • Member of the BGI family of interchangeable sensors
  • Personality module holds all calibration and configuration data
  • Small size
  • Stainless steel construction
  • NIST-traceable certificate of calibration included
  • Accuracy: ± 0.5% of full scale ±1 digit + BGI
  • Weight: 0.4 lbs (0.2 kg)
  • Warranty: 3 years
Model
Capacity x Resolution
ØA ØB C D ØE F ØG Price
SBC100
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N
1.23
(31.3)
0.32
(8.1)
0.05
(1.3)
0.39
(9.9)
1.0
(25.4)
thru 0.83
(21.1)
$617
SBC200
200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N
$617
SBC500
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N
$617
SBC1000
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N
$617
SBC1000
1000 x 0.5 lb, 500 x 0.2 kgF, 5000 x 2 N
$617
SBC2000
2000 x 1 lb, 1000 x 0.5 kgF, 10000 x 5 N
$617
SBC5000
5000 x 2 lb, 2500 x 1 kgF, 25 x 0.01 kN
1.48
(37.6)
0.43
(10.9)
0.07
(1.8)
0.62
(15.8)
1.25
(31.8)
0.25
(6.4)
1.08
(27.4)
$617
SBC10000
10000 x 5 lb, 5000 x 2 kgF, 50 x 0.02 kN
$617

Weight: 2.00 lb
