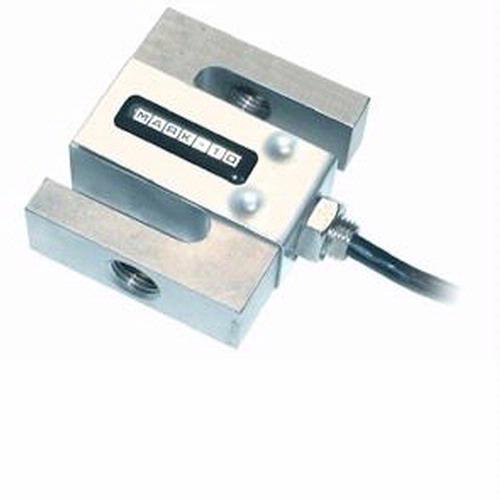

Mark-10 SS500 Tension and Compression Force Sensor, 500 x 0.2 lb |
|
A rugged force measurement sensor for tensile and compressive forces up to 10,000 lb. Durable S-Beam architecture allows for many applications and setups. Solid steel construction ensures many years of use in factory or laboratory environments more ... |
Test Equipment >
Force Gauges >
Force Sensor
|
|
Have Questions? Our Staff will be glad to help |
|
|
|
|
|
|
|
Features
A rugged force measurement sensor for tensile and compressive forces up to 10,000 lb. Durable S-Beam architecture allows for many applications and setups. Solid steel construction ensures many years of use in factory or laboratory environments.
- Member of the BGI family of interchangeable sensors
- Remote operation
- Small size
- Personality module holds all calibration and configuration data
- Measures tensile and compressive forces
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.15% of full scale ±1 digit + BGI
- Weight: From 1.9 lbs (0.9 kg) to 3 lbs (1.4)
- Warranty: 3 years
Model |
Capacity x Resolution |
A |
B |
C |
D |
E |
Price |
SS50 |
50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N |
2.4 (61.0) |
2.0 (50.8) |
0.46 (11.7) |
0.65 (16.5) |
1/4-28 UNF |
$565 |
SS100 |
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N |
$565 |
SS200 |
200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N |
$565 |
SS500 |
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N |
0.71 (18.0) |
0.9 (22.9) |
1/2-20 UNF |
$565 |
SS1000 |
1000 x 0.5 lb, 500 x 0.2 kgF, 5000 x 2 N |
$565 |
SS2000 |
2000 x 1 lb, 1000 x 0.5 kgF, 10000 x 5 N |
0.96 (24.4) |
1.15 (29.2) |
$565 |
SS5000 |
5000 x 2 lb, 2500 x 1 kgF, 25 x 0.01 kN |
3.9 (99.1) |
3.0 (76.2) |
3/4-16 UNF |
$802 |
SS10000 |
10000 x 5 lb, 5000 x 2 kgF, 50 x 0.02 kN |
$802 |
Weight:
2.00 lb
|
|
|
|
|
