Mark-10 MGT12 Digital Torque Gauge, 12 x 0.01 lbin

Mark-10 - Force and Torque Measurement Products
+/-0.5% accuracy. Compact, economical digital force gauge solution for push and pull testing from 0.12 to 500 pounds. Rugged reversible aluminum housing for hand-held use or test stand mounting. Features peak memory, auto shutoff, selectable units, more. more ...
Scales > Force Gauge > Torque Gauge
Mark-10 MGT12 Digital Torque Gauge, 12 x 0.01 lbin




Call for more info
Download PDF
Mark-10 MGT12 Digital Torque Gauge, 12 x 0.01 lbin
FREE Ground Shipping *


Price: $1,021.00


In Stock - Ships within 24 hours

View Features

Mark 10
SKU: MGT12

Features

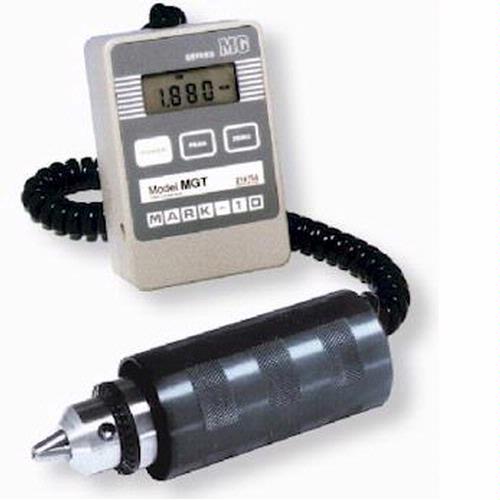

The Mark-10 MGT Torque Gauge is an economical solution for most basic torque measurement applications. A dedicated remote torque sensor with a Jacobs chuck can be used to grip a sample or fixture. The Mark 10 MGT digital torque gauge is available in a wide variety of capacities, from 10 oz-in to 100 lb-in

Features:

  • Low cost
  • Programmable automatic shutoff
  • Programmable default configuration
  • Selectable units of measurement
  • Rugged aluminum housing
  • Remote sensor
  • Peak memory for clockwise and counter clockwise readings
  • IPM - Intelligent Power Management
  • Push-button calibration
  • Capacities from 10 ozin (7 Ncm) to 100 lbin (1150 Ncm)
  • Battery or AC operation

Specifications:

  • Accuracy: ± 0.5% of full scale ±1 digit
  • Sampling rate: 30 readings/sec
  • Safe overload: 150% of capacity
  • Battery life: 30 hours of continuous operation
  • Weight: 1.8 lbs (0.8 kg)
  • Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
  • Series MG torque gauges are supplied in a cushioned carrying case with AC adapter, battery, chuck key, users manual, and NIST-traceable certificate of calibration
  • Warranty: 3 years

Model Capacity x resolution Price
MGT10Z 10 x 0.01 ozin, 7 x 0.005 kgFmm, 7 x 0.005 Ncm, 110V $1116
MGT20Z 20 x 0.02 ozin, 14 x 0.01 kgFmm, 14 x 0.01 Ncm, 110V $1116
MGT50Z 50 x 0.05 ozin, 36 x 0.05 kgFmm, 35 x 0.05 Ncm, 110V $1116
MGT12 12 x 0.01 lbin, 140 x 0.1 kgFmm, 135 x 0.1 Ncm, 110V $1026
MGT50 50 x 0.05 lbin, 580 x 0.5 kgFmm, 570 x 0.5 Ncm, 110V $1026
MGT100 100 x 0.1 lbin, 1150 x 1 kgFmm, 1150 x 1 Ncm, 110V $1026


Weight: 10.00 lb
