Mark-10 FS06-100 Tension and Compression Force sensor, 100 x 0.05 lb |
|
Series FS06 force sensors measure tension and compression forces. Designed to accommodate bulkier grips and fixtures, they are compatible with Series F test frame models up to 500 lbF / 2.2 kN more ... |
Test Equipment >
Force Gauges >
Force Sensor
|
|
|
|
Features

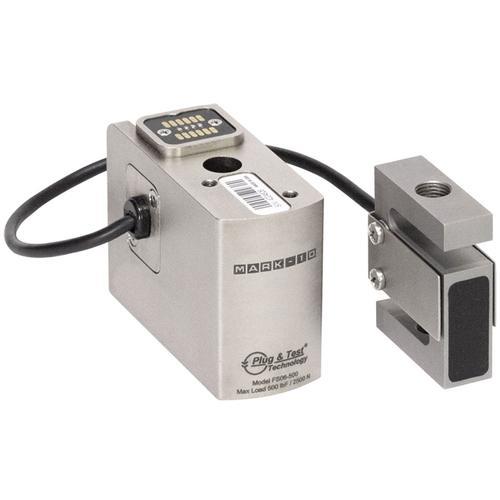

Series FS06 Tension and Compression Force Sensors
Series FS06 force sensors measure tension and compression forces. Designed to accommodate bulkier grips and fixtures, they are compatible with Series F test frame models up to 500 lbF / 2.2 kN
With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter AC1083 required).
Ranges are available from 50 to 500 lbF [250 N to 2.5 kN].
Compatible with Models F105, F305, F505, and F505H.
Features
- Measure tension and compression force
- Suitable for larger and heavier grips and fixtures
- Compatible with Model F105, F305, F505, and F505H test frames
- Member of the Plug & Test® family of interchangeable sensors and indicators (optional adapter AC1083 required)
- NIST-traceable certificate of calibration with data is included
- Warranty: 3 years
Weight:
20.00 lb
|
|
Other Mark 10 FS06 Force Sensors
|
Specifications
Model |
FS06-50 |
FS06-100 |
FS06-200 |
FS06-300 |
FS06-500 |
Capacity x Resolution |
50 x 0.02 lbF |
100 x 0.05 lbF |
200 x 0.1 lbF |
300 x 0.2 lbF |
500 x 0.2 lbF |
800 x 0.5 ozF |
1600 x 1 ozF |
3200 x 2 ozF |
4800 x 5 ozF |
8000 x 5 ozF |
25000 x 10 gF |
50000 x 20 gF |
- |
- |
- |
25 x 0.01 kgF |
50 x 0.02 kgF |
100 x 0.05 kgF |
150 x 0.1 kgF |
250 x 0.1 kgF |
250 x 0.1 N |
500 x 0.2 N |
1000 x 0.5 N |
1500 x 1 N |
2500 x 1 N |
- |
- |
1 x 0.0005 kN |
1.5 x 0.001 |
2.5 x 0.001 kN |
Accuracy |
± 0.15% of full scale + indicator or test frame |
Safe Overload |
150% of full scale |
Weight |
FS06-50 – FS06-200: 1.7 lb [0.8 kg] |
FS06-300 – FS06-500: 1.9 lb [0.9 kg] |
Shipping weight |
FS06-50 – FS06-200: 2.5 lb [1.1 kg] |
FS06-300 – FS06-500: 2.7 lb [1.2 kg] |
HS code |
9024900000 |
ECCN |
EAR99 |
Country of origin |
USA |
|
|
|
