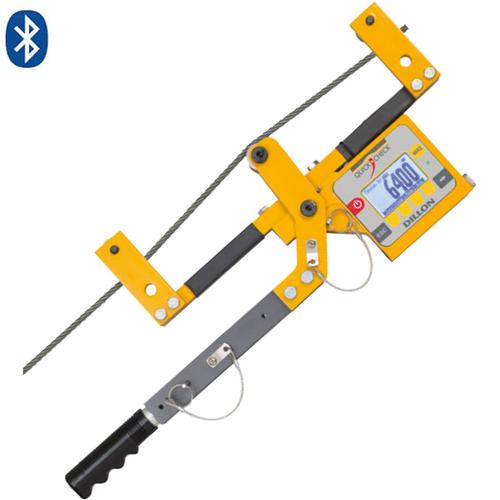

Dillon AWT05-100370 Quick Check-T Tension Meter, with BT 10000 X 10 lbf |
|
| The Dillon Quick-Check Tension Meter quickly measures tension in cable guardrails, guy lines and overhead wires. It installs, measures and removes in seconds. The digital loadcell is highly accurate and requires no lookup or correction tables. more ... |
|
Test Equipment >
Specialty Testers >
Tension Meters
|
|
|
|
|
|
Features
Quick Check-T CELL TOWER SHUNT METER
No whiteboards!
No changing sheaves!
No manual site form completion!
The Dillon Quick Check-T tension meter makes a difference. It reduces time on the job site by eliminating the need for whiteboards, changing sheaves, and the need for charts to figure out target tensions. This unit also reduces time off of the job site by having automatic site form completion, with image, and direct complete reports.
- Bluetooth® enabled

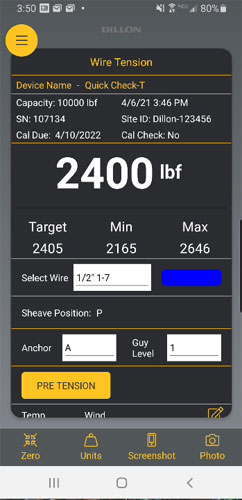

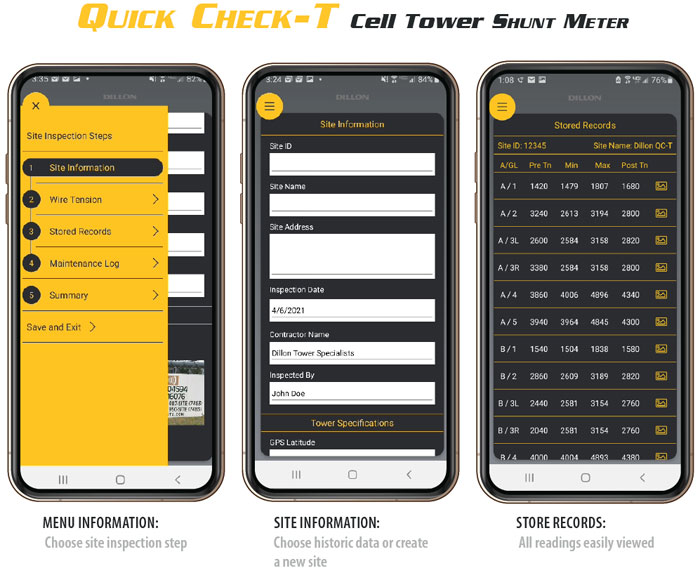

- Custom mobile app
- Multi-wire single sheave
- Calibration check rod
- Automatic report generation with photos
- Automatic target tension calculations
- Ability to capture pre and post tension readings
- Inbuilt image capture
Why The Dillon Quick Check
Makes the Difference
- Reduces time on site
- No changing sheaves! – One sheave, two positions - just rotate
- No charts to figure out target tensions!
- No need for whiteboards! - – All info is on the display and on the app
- Reduces time off site
- Automatic site form completion with images
- Send completed reports directly from the app
Key Features:
- Bluetooth® enabled
- Custom mobile app
- Multi-wire single sheave
- Calibration check rod
- Automatic report generation with photos
- Automatic target tension calculations
- Ability to capture pre and post tension readings
- Inbuilt image capture

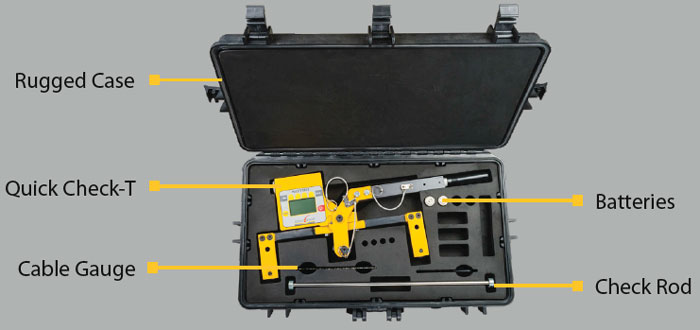

NEW Carrying Case
- IP67 waterproof
- Load bearing up to 140 lbs
- Cold resistant -40° F
- 50,000 uses catch lifespan
- Pressure balance valve
Weight:
11.00 lb
|
|
Specifications
| Model |
AWT05-100370 |
| Capacity x Readability |
10000 x 10 lb
45 x 0.05 kN
4500 x 5 kg |
| Range |
Wire sizes from 3/16" (4.75 mm) up to 1.0" (25.4 mm) |
| Communications |
Bluetooth® |
| Wire Calibrations |
Up to 20 wire calibrations |
| Units of Measure |
lbf, kgf, newtons |
| Capture Rate |
10Hz, 100Hz and 1000Hz |
| Resolution |
Low / Medium / High (5000 resolutions) |
| Accuracy |
+ 3% instrument capacity |
| Data Export |
Via mobile app |
| Battery |
Two C batteries |
| Operating Range |
-4° F to 158° F (-20° C to 70° C) |
| Display |
Dot-graphic LCD display supports full text |
| Calibration |
Each wire rope calibration is traceable to the National Institute of Standards and Technology. Certificate included with curve readings. Passes only with three consecutive confirming runs, with all points in specification. |
| Protection |
Hard polymer storage case included |
| Environmental |
Suitable for continued outdoor use |
| Size |
10 x 23 x 3” (25 x 59 x 8 cm) |
| Weight |
11 lb (5 kg) |
| Recalibration |
Every 12 months |
| Approved By |
Majority of cell tower owners |
| Unit Dimension inch (mm) |
9 x 24 x 3 (220 x 610 x 90) |
| Shipping Weight lb (kg) |
27 (5) |
| Shipping Dimension inch (mm) |
28 x 16 x 8 (710 x 410 x 200) |
|
|
|
* within the 48 continental US States
|
|
|
|
|
|
|
