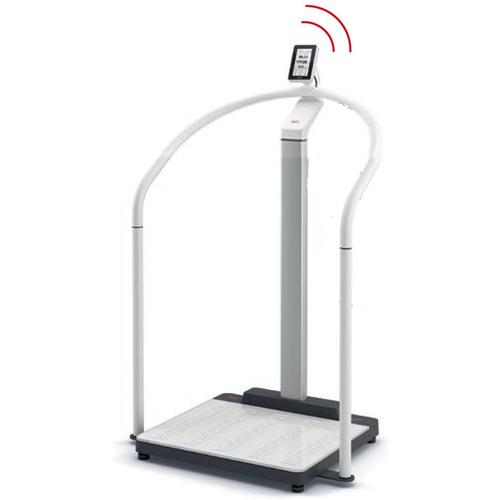

Seca ONSHMINTNN 654 EMR-Validated Handrail Scale with ID-Display - 800 lbs x 0.1 lbs |
|
| The handrail of this particularly high-quality, safe and trendsetting handrail scale from seca is firmly anchored in the cast iron core of the platform and designed for different grip heights. It offers patients with restricted mobility the necessary safety and reduces the support and holding workload for staff. more ... |
|
Medical Equipment >
Medical Scales >
Handrail Scales
|
Specifications Chart
|
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
360 kgx 50 g
800 lbx 0.1 lb
|
|
|
|
|
|
|
|
|
Features
The handrail of this particularly high-quality, safe and trendsetting handrail scale from seca is firmly anchored in the cast iron core of the platform and designed for different grip heights. It offers patients with restricted mobility the necessary safety and reduces the support and holding workload for staff. The unique ID display of the seca Scale-up Line allows patients to be identified during the measurement and makes the measurement value integration in the digital patient file (EMR) more transparent and secure.
Product Properties
- Display shows user and patient names or IDs for increased patient safety
- Data transmission controlled by touchscreen
- Safe weighing with a stable handraily
- Lightweight, sophisticated design and extremely robust thanks to steel handrail that is directly attached to the cast iron pedestal
- Large platform made of tested seca Bearclaw Glass® for absolute breakage resistance and perfect hygiene
- Convenient transport with extremely robust rubber wheels
- Optional panda bear facilitates measuring and weighing of children
- EMR-validated: transmit measured data directly to any electronic medical record system or printer
Key-Technical Data
- Net weight: 55.1 lbs / 25.0 kg
- Product width: 31.5 inch / 801 mm
- Product height: 50.4 inch / 1,280 mm
- Product depth: 25.7 inch / 653 mm
- Graduation: 50 g / 0.1 lbs
- Capacity: 360 kg / 800 lbs
| Options |
with handrail |
| Net weight |
55.1 lbs / 25.0 kg |
| Platform width |
23.6 inch / 600 mm |
| Platform height |
2.8 inch / 70 mm |
| Platform depth |
18.4 inch / 467 mm |
| Product width |
31.5 inch / 801 mm |
| Product height |
50.4 inch / 1,280 mm |
| Product depth |
25.7 inch / 653 mm |
| Ports |
LAN
USB bar code scanner
Wi-Fi |
| Power supply |
Power adapter |
| Graduation |
50 g / 0.1 lbs |
| Capacity |
360 kg / 800 lbs |
Functions and Properties
- EMR-validated
- Wi-Fi
- Acoustic signals can be activated
- Auto-BMI
- Auto-CLEAR
- Auto-HOLD
- Extra rugged
- Confirm button
- CLEAR
- Adjustable damping
- Backlighting
- HOLD
- Mother+child function
- Pre-TARE
- RESET
- TARE
- Transport wheels
- Display of user and patient name or ID
- Display date of birth patient
- Rotatable and tiltable display
- Standby mode
- Ethernet
- Touchscreen
- lbs/kg switch-over
- Customizable shortcut buttons
|
|

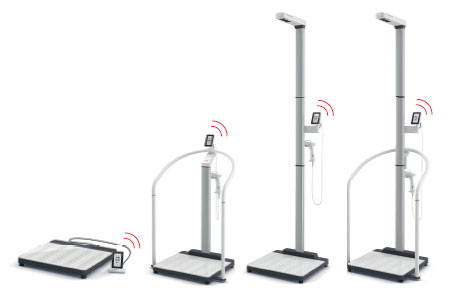

Specifications
|
SECA 650
6501321009 |
Seca 654HR
ON SHM INT NN |
Seca 654S
ON SMM IUT NN |
Seca 654HRS
ON SHM IUT NN |
| Capacity x Readability |
800 x 0.1 lb
360 kg x 50 g |
800 x 0.1 lb
360 kg x 50 g |
800 x 0.1 lb
360 kg x 50 g |
800 x 0.1 lb
360 kg x 50 g |
| Height Measurement |
- |
- |
Ultrasonic |
Ultrasonic |
| Handrail |
- |
YES |
- |
YES |
| Wheels |
- |
YES |
YES |
YES |
| Height Measuring range |
|
60 – 220 cm / 24 – 87" |
| Height Graduation of measuring range |
|
1 mm / 1/8" |
| EMR-validated |
YES |
YES |
YES |
YES |
| Display type |
Shows name or identifi cation number (ID) of users and patients for enhanced safety |
| Ports |
LAN, USB bar code scanner, Wi-Fi |
| Functions and Properties |
TARE, Auto-clear, Clear, Pre-TARE, Mother/Child function, HOLD, Auto-HOLD, Auto-BMI, kg/lbs switch-over, Autom. Calibration, cm/inch-switch-over, Damping |
| Accessories |

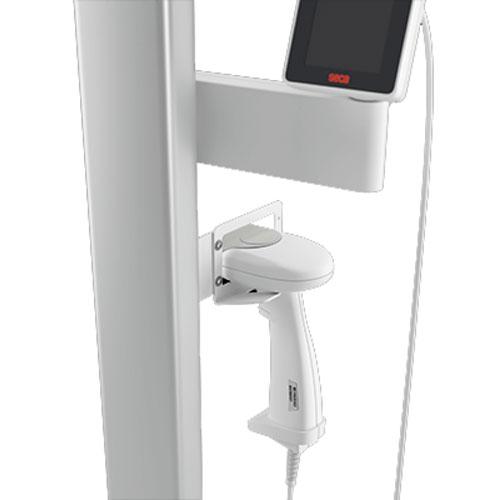

Ultrasonic height measurement seca 257, Seca 459 Panda Bear, Seca 463 Barcode Scanner Mount |
|
|
|
|
|
|
|
|
|
|
|
