Features

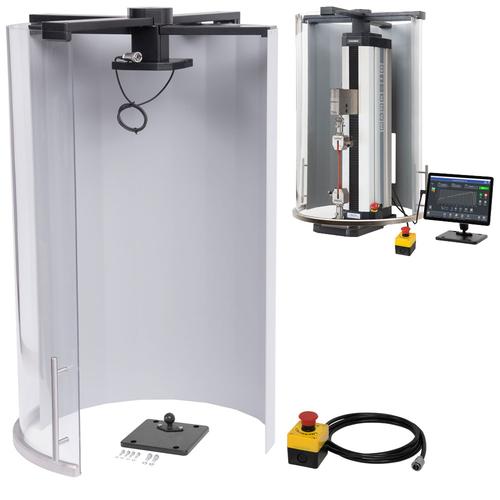

Mark-10 AC1086 Safety shield for F105 / F305 / F505
These safety shields attach to the following test frames: F105, F305, F505, and ESM303. The shields provide pinch and sample debris protection for the operator.
The shields are constructed of rugged PETG material. They rotate via ultra-smooth bearings in both the clockwise and counter-clockwise directions, guided into the open or closed positions with magnetic detents. An electrical interlock prevents test frame operation while the door is open.
For crosshead adjustment during sample loading, the FollowMe® force-based positioning function is active even while the door is open.
Compatibility Note for AC1086-1 Shield for ESM303 Test Stand:
The FollowMe® function is included with the shield, and does not need to be separately ordered with the test stand.
Weight:
25.00 lb
|
|
|
|
|
|
|
