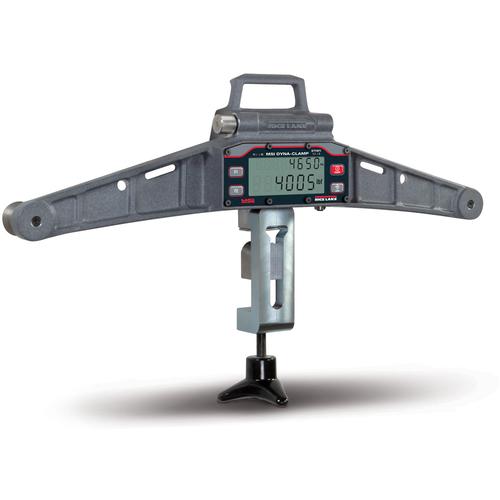

MSI 189581 Dyna-Clamp Tension Meter 12500 x 5 lbf |
|
| The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments. more ... |
|
Test Equipment >
Specialty Testers >
Tension Meters
|
|
|
|
|
|
Features
Quickly Check Wire Rope Tension

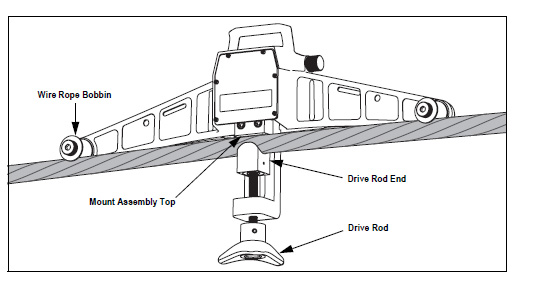

The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments.
Meeting Safety Standards with Every Application
The MSI Dyna-Clamp has accommodations for a safety strap, complying with OSHA requirements. Users can measure wire ropes with up to one-inch diameters without changing equipment.
Large, Easy-To-Read Display
The Dyna-Clamp’s large LCD display can be clearly read in bright, sunny conditions and features a scratch-resistant overly for added durability. Two lines on the display allow users to view two measurements. The live wire rope tension is prominently displayed on the primary display line, while the secondary display line is configurable to show wire rope diameter, average tension, or peak tension.
Standard Features
- Dual line LCD display
- Two user-programmable function keys
- IP65 powder-coated aluminum frame
- RS-232 port
APPLICATIONS
- Tower and stack guy wires
- Pretensioned cable barriers
- Bridges
- Elevators
- Winch ropes
- Overhead electric transit wires
- Fall arrest systems
- Aircraft cables and utilities
- Zip lines

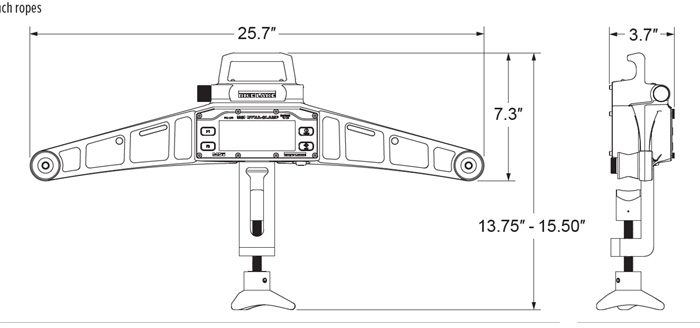

Dimensions
X:
28.70
Y:
9.00
Z:
14.00
|
|
Specifications
|
189581 |
| Capacity x Accuracy |
12,500 x 5 lbf |
| MAX TENSION: |
12,500 lbf |
| ACCURACY: |
Rated Accuracy ±3% of capacity |
| WIRE ROPE: |
Diameter 3/16 in (5 mm) – 1 in (25 mm) |
| OPERATING TIME: |
Alkaline AA Cells 24 hours |
| UNITS: |
lbf, kgf, kN |
| RESOLUTION: |
Standard: 2500 divisions |
| TWO-LINE LCD DISPLAY: |
Primary Display (bottom) six, 0.7 in (18 mm) numeric digits
Secondary Display (top) eight, 0.5 in (13 mm) numeric digits |
| FUNCTION KEYS: |
Two programmable keys (user-defined) – F1, F2 (TEST, UNIT, PRINT, SCROLL, ACTFUN) Two permanent keys – POWER, ZERO |
| SETPOINTS: |
Two dedicated setpoints for minimum and maximum allowable wire rope tension (LEDs for measurements outside of allowable range) |
| AUTO-OFF MODE: |
Prolongs battery life by turning Power OFF after 15, 30, 45 or 60 minutes of no activity (user determined) |
| ENCLOSURE: |
IP65 Powder-coated aluminum frame |
| CALIBRATION: |
Up to eight (8) factory programmed wire rope calibrations |
| OPERATING TEMP |
-4°F to 122°F (-20°C to 50°C) |
| OPERATOR USE: |
Outdoor |
| STORAGE: |
Indoor |
|
Operation Manual |
|
|
|
|
|
|
|
|
|
|
|
