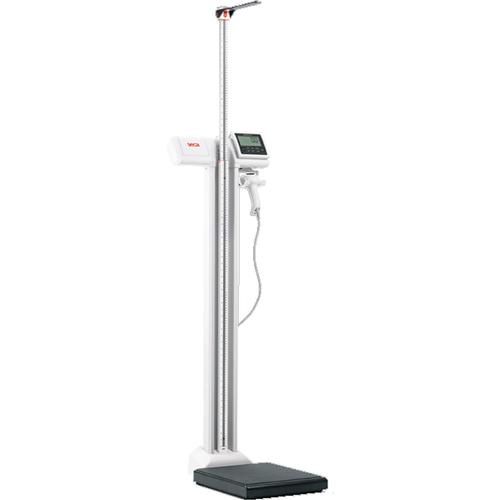

Seca 787 EMR validated column Medical Scale with eye-level display 550 x 0.2 lb |
|
| The seca 787 is the ideal solution for networked weighing and measuring. It features an especially sturdy design with a tilt-proof full metal platform and a robust single piece column. All patients (especially those affected by obesity) will feel secure on the platform even when stepping on the edge of the base. more ... |
|
Medical Equipment >
Medical Scales >
Physician Scales - Digital
|
Specifications Chart
|
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
550 lbx 0.2 lb
Pan Size
13.8 x 16.5 in
|
|
|
|
|
|
|
|
|
Features
The seca 787 is the ideal solution for networked weighing and measuring. It features an especially sturdy design with a tilt-proof full metal platform and a robust single piece column. All patients (especially those affected by obesity) will feel secure on the platform even when stepping on the edge of the base. The digital measuring rod allows for immediate BMI calculation. With an upgradable network module (seca 452) the seca 787 transmits height and weight measurements directly into your EMR system.
- Medical-grade, robust scale for years of use with high patient volume
- Digital measuring rod with an extra long measuring range
- Two-line display shows height and weight
- EMR validated: Send results directly into the EMR
- Damping system and Auto-HOLD guarantee quick and precise weighing
Functions and Properties
- EMR ready
- Auto-BMI
- Auto-HOLD
- Automatic switch-off
- Extra rugged
- Confirm button
- Adjustable damping
- HOLD
- cm/inch switch-over
- Foldable head positioner
- Integrated measuring rod
- TARE
- Transport castors
- swappable display
Advanced EMR validated weighing technology
The seca 787 fully meets the demands of professional EMR (electronic medical record) integrated measuring and weighing. It boasts a tilt-proof full metal platform and a stable single piece column that is at eye level and won’t give way when operating the keypad. It is a quality every patient will notice, as soon they set foot on the platform. The scale is easy to move by staff due to the large rubber coated castors and a wide wheelbas
Absolute sturdy construction
With its absolute sturdiness, the seca 787 gives patients (especially those affected by obesity) a greater sense of security when stepping on the platform. The digital measuring rod is firmly attached to the column and provides an extra long measuring range. A generous two-line display shows weight and height simultaneously and automatically calculates patients’ BMI. The damping system and auto-HOLD function enable quick and precise measurements.
seca integration solutions
How workflows can clearly be improved.
The seca 787 can be integrated into your information system via the network. At the push of a button, measured values can be sent directly to the EMR, where they are immediately available to all users. Extended with an optional USB barcode scanner, both patient and user are identified and the measurement results are always correctly assigned. This saves time, increases process reliability and eliminates transmission errors.
Dimensions
X:
34.00
Y:
16.00
Z:
8.00
Weight:
20.00 lb
|
|
Specifications
| Model |
seca 787 |
| Capacity x Readability |
550 x 0.2 lb
250 kg x 100 g |
| Platform |
13.8 x 16.5 x 2.3 inch
35.0 x 41.8 x 5.9 cm |
| Measuring range |
4 – 90 inch / 10 – 230 cm
(digital measuring range 48 – 90 inch / 122 – 230 cm) |
| Weight |
28.0 lbs
12.7 kg |
| Power supply |
Batteries, power adapter (optional) |
| Data transmission |
LAN or Wi-Fi via interface module seca 452 (optional) |
| Functions |
TARE, HOLD, Auto-HOLD, Damping (motion filter),
lbs/kg switch-over lock, automatic BMI, auto-off |
| Electromagnetic radiation resistance |
According to IEC 60601-1-2 |
| Capacity |
250 kg
550 lbs |
| Graduation |
100 g
0.2 lbs |
| Unit |
kg/lbs and cm/inch |
| Net weight |
28.0 lbs
12.7 kg |
| kg/lbs switch-over |
true |
| Measuring range |
10 - 230 cm
4 - 90 inch |
| Platform width |
13.8 inch
350 mm |
| Platform height |
2.3 inch
59 mm |
| Platform depth |
16.5 inch
418 mm |
| Product width |
16.1 inch
410 mm |
| Product height |
53.4 inch
1,356 mm |
| Product depth |
22.7 inch
576 mm |
| Ports |
prepared for seca 452 connection |
| Power supply |
Batteries, Optional power adapter |
| Graduation measuring range |
1 mm
1/8 inch |
| Measuring range digital |
122 - 230 cm
48 - 90 inch |
| Batteries quantity and type |
6 X AA |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|

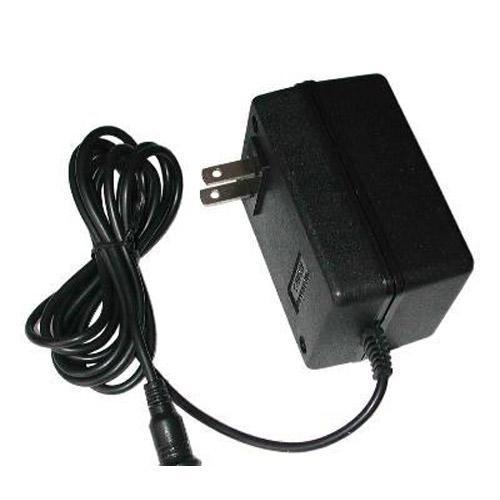

Seca A683210270009 AC Adapter for Seca 777 787 797
Seca A683210270009 AC Adapter for Seca 777 787 797
|
|
more info
|

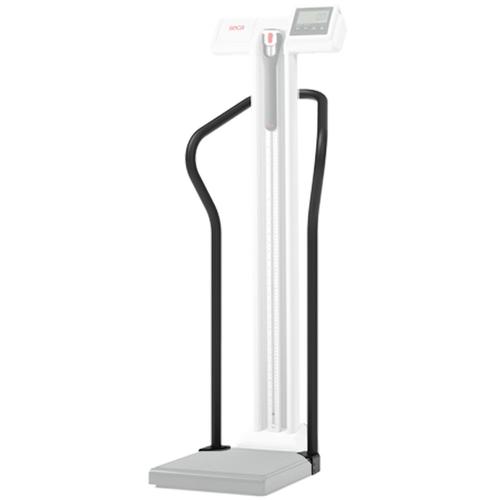

Seca 477 Integrated Handrail for Seca 777/787/797
Make your Seca 777, 787 or 789 scale a Handrail scale. It will be a great choice for patients needing extra support during weighing.
Enhanced patient safety without affecting measurement
Extra support and stability during the weighing process
Enables a firm stance for patients in need of assistance
Compatible on seca series 777, 787, 797
tilt-proof safety design
Net weight 8.8 lbs - 4.0 kg
Product width 16.9 inch - 429 mm
Product height 44.2 inch - 1,122 mm
Product depth 12.2 inch - 309 mm
Maximum load {0=>nil, 1=>nil}
Product height from - to {0=>nil, 1=>nil}
|
|
more info
|
Seca 459 Panda Bear Bao Bao for Measuring Stations and Column Scales
The seca panda bear convinces even the most skeptical child to be weighed and measured. With the panda bear, seca measuring stations and column scales look friendlier in children’s eyes and the measuring process can be performed in no time. Compatible with seca Scale-up Line, seca 286, seca 703, seca 777, seca 787 and seca 797
|
|
|
|
|
|
|
|
|
