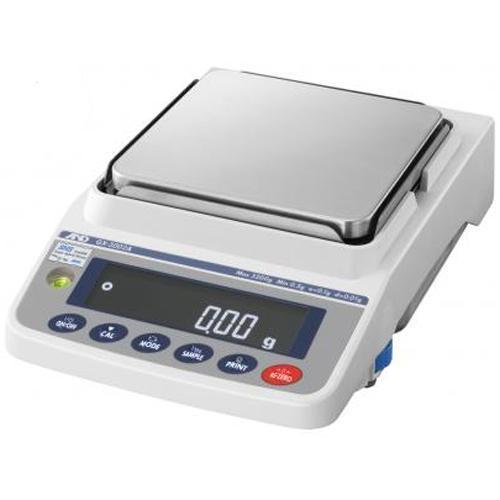

AND Weighing GF-4002A Apollo Balance 4200 x 0.01 g
Advanced Sensor Technology Smart-SHS is the latest advancement in our super hybrid design, construction and algorithms. Increased productivity via faster stabilization times (1 second in fast mode) Lower cost of ownership due to reduce number of parts and maintenance accessibility more ...
Capacity x Readability 4200 gx 0.01 g Pan Size 5 x 5 in
Features
Advanced Sensor Technology Smart-SHS is the latest advancement in our super hybrid design, construction and algorithms. Increased productivity via faster stabilization times (1 second in fast mode) Lower cost of ownership due to reduce number of parts and maintenance accessibility
Innovative Solutions
(Electronically Controlled Load (ECL) does a self-diagnostic before performing an internal repeatability test without an external weight, all in less than a minute and a half. )
Dia-Check – the diagnostic result that validates if the balance critically passes or fails
SD – standard deviation that allows for daily precision check, ideal for S.O.P.s
QuickMin-S – determines minimum sample weight in any given environment
Min-S Alert – alerts user to ensures they are operating within USP41 compliance
Impact Shock Detection (ISD)
Impact-alert visually and audibly indicates the magnitudes of impact shocks
Shock-log documents date, time, and shock level
Flow Rate Display (FRD)
(Helps streamline and improve filling or dosing accuracy and precision.)
FR-Cal – calculates, displays/outputs the mass or volume flow rate by entering density
FR-Compare – comparator that provides feedback if the flow rate is within limits
Good Data Management
Internal/external calibration with easy one-touch button - performs and documents internal calibration
Automatic Self-Calibration (ASC) – auto calibrates based on temperature and time interval
Password-Protect – offers password-protection up to 11 users and 1 administrator
GLP/GMP/GCP Compliance with full calibration reports
Leveling Made Easy
Bright-bubble – large, easy-to-see, front mounted spirit level with LED Illumination
Fly-thumbwheel is effortless and accessible, allows ergonomic adjustment with anti-slip feet
Simple User and Data Interface
Six straightforward keys – ON/OFF, CAL, MODE, SAMPLE, PRINT, REZERO
Reverse backlit LCD is a large display with great black and white contrast, provides excellent visibility
Standard RS-232C & USB – Toggle between the Quick USB mode or Virtual COM mode (bi-directional)
Cleanable Robust Construction
Stainless steel pan and dust-plate can be easily removed for cleaning
Easy to assemble anti-static breeze break on 0.001 readability models
Die-cast aluminum housing provides extra stability and durability
KEY FEATURES
GX-A Internal Calibration
ISD Impact Shock Detection
FRD Flow Rate Display
ECL Electronically Controlled Load
USB - Bidirectional
RS-232C
Universal Flexi Coms
Password Protect
Super Hybrid Sensor
Weight:13.00 lb

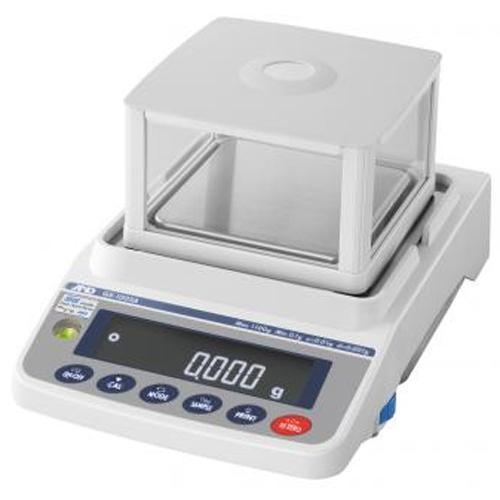

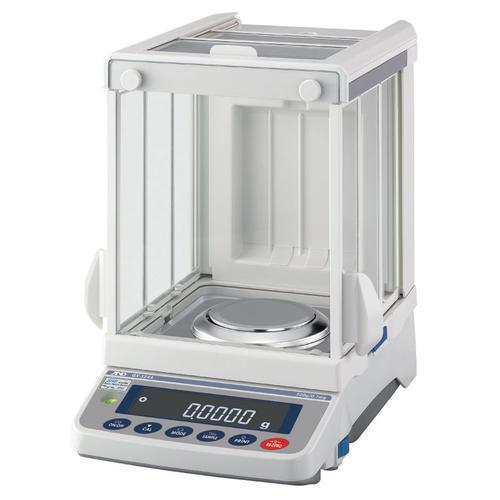

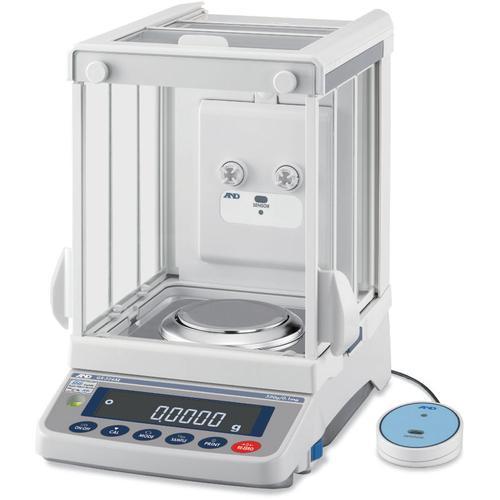

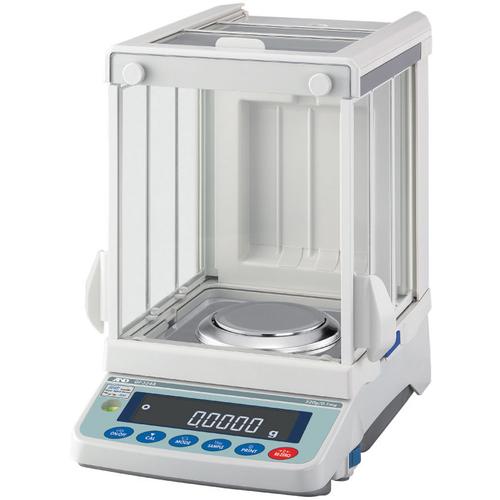

Other AND Weighing Apollo Smart-SHS Series Balances
AND Weighing GXA-06 Comparator Output (Cable: MiniDIN 8 pin Male to Loose end) Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed.
AND Weighing GXA-09 Internal Rechargeable Battery Factory Installed Only
Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed.
AND Weighing GXA-10 Large Glass Breeze Break The glass panes disappear into the back when opening the door, requiring no extra space at the rear of the balance. Easily attachable/detachable
AND Weighing GXA-13 Density Determination Hit for Apollo Series 1mg Models Only Makes weighing the sample in air and in water quicker, easier and more precise. The GX-A/GF-A series can then perform a density calculation automatically
AND Weighing GXA-17 Large Glass Breeze Break with built-in Fanless Ionizer Static Sliminator The fanless ionizer can neutralize even extremely fine powders without disturbance
AND Weighing GXA-23-PRINT External Key Input Interface with the AX-SW137-PRINT Foot Switch Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG,
GXA-24, GXA-25 or GXA-26 can be installed. Factory Installed Only
AND Weighing GXA-23-REZERO External key input interface with the AX-SW137-REZERO foot switch - Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. Factory Installed Only
AND Weighing GXA-23-PLUG External Key Input Interface with the AX-T-314A-S Plug - Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. Factory Installed Only
AND Weighing GXA-24 USB host interface Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. Accepts an off-the-shelf USB flash drive to save weighing results in CSV format.
AND Weighing GXA-25 External Fanless Ionizer Static Eliminator Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. Power is supplied from the balance. Activated for a set duration with an IR sensor. Factory Installed Only
AND Weighing GXA-03 2nd RS-232C interface
Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed.
AND Weighing GXA-26 External IR switch Factory Installed Only Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-23-PRINT/REZERO/PLUG, GXA-24, GXA-25 or GXA-26 can be installed. For touchless operation of print or re-zero (tare). Factory Installed Only
Easy setting and operation with a numeric keypad and
LCD display
Built-in calendar and clock for printing date and time
at any time
Sends re-zero and weighing data request commands to
the balance/scale
Clear and visible dot matrix printing, which also enables long-term preservation of the
printed records
Compact and lightweight for portability and installation anywhere
Interval printing mode for printing weighing data at set intervals
Chart printing mode for printing time-series variations of weighing data
Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from
the balance/scale
Performs and prints the results of statistical calculation including standard deviation
Prints an ID number set for the printer at any time
Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to
connect to balances/scales with different interfaces*
Receives a print, paper feed, print statistical calculation results, print total, re-zero, or
weighing data request command from the optional foot switch (AX-SW128)
Character specifications
7 × 9 dots, 1.6 (W) × 3.2 (H) mm
Printing speed
Approx. 1.6 lines/second
Paper feeding speed
Approx. 4 lines/second
Number of characters printed
24 characters/line
Printer paper width
57.5 mm
Operating environment
0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation)
Storage environment
-20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation)
Interface
RS-232C (D-Sub 9P, male) / Current loop (DIN)
Power supply
AC adapter
Size / weight
174 (W) × 141 (D) × 87 (H) mm / approx. 500 g
Standard accessories
Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)*
Easy setting and operation with a numeric keypad and
LCD display
Built-in calendar and clock for printing date and time
at any time
Sends re-zero and weighing data request commands to
the balance/scale
Clear and visible dot matrix printing, which also enables long-term preservation of the
printed records
Compact and lightweight for portability and installation anywhere
Interval printing mode for printing weighing data at set intervals
Chart printing mode for printing time-series variations of weighing data
Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from
the balance/scale
Performs and prints the results of statistical calculation including standard deviation
Prints an ID number set for the printer at any time
Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to
connect to balances/scales with different interfaces*
Receives a print, paper feed, print statistical calculation results, print total, re-zero, or
weighing data request command from the optional foot switch (AX-SW128)
Character specifications
7 × 9 dots, 1.6 (W) × 3.2 (H) mm
Printing speed
Approx. 1.6 lines/second
Paper feeding speed
Approx. 4 lines/second
Number of characters printed
24 characters/line
Printer paper width
57.5 mm
Operating environment
0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation)
Storage environment
-20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation)
Interface
RS-232C (D-Sub 9P, male) / Current loop (DIN)
Power supply
AC adapter
Size / weight
174 (W) × 141 (D) × 87 (H) mm / approx. 500 g
Standard accessories
Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)*
The AD-1683 generates bipolar ions continuously by DC corona discharge separately from positive and negative discharge electrodes and directs the ionized air onto the charged body to eliminate static electricity. The generated ionsare well-balanced in polarity and can eliminate static electricity regardless of the polarity of the charged body
Static Electricity
Generally, insulators such as plastics are prone to be charged with static electricity when the ambient relative humidity is below 45% RH. This may affect weighing and cause a measurement error of several milligrams. The AD-1683 can eliminate static electricity very effectively
*Note: Please confirm that the AC adapter type is correct for your local voltage and receptacle type. To prevent electrical shock, insert the POWER cable into a grouding-type outlet and earth ground the grounding cable
How to install AD-1683:
Choose the installation site so that the AD-1683 can be placed beside the electronic balance and a space wide enough to place sample (10cm to 30cm from the front of the AD-1683) can be secured. Place the sample in front of the AD-1683 inside the specified area and perform static elimination. Then, weighthe sample using the electronic balance
External Dimensions
Static Eliminating Method
DC corona discharge (Bipolar)
Elimination Range
Distance:Approz. 10 cm to 30 cm from the electode. Area: 30x30 cm from the electode. (See Figure 2.)
Elimination Performance
When Charged 5kV:
Distance
10cm
20cm
30cm
50cm
Elimination Time
1 sec
4 sec
15 sec
70 sec
Ambient Temperature and Humidity Ozone Concentration
0°C to 40°C, 80% RH or less
Positive discharge pin: 0.07PPM
Negative discharge pin: 0.25PPM
(Measured at a distance of 1cm from each discharge pin.)
Power Supply
AC adapter. Please confirm that the AC adapter type is correct for your local voltage and receptacle type
0 to 60 °C / 32 to 140 °F, 85% RH or less (no condensation)
Dimensions
127 (W) × 90 (H) × 36 (D) mm (including the protective cover)
Weight
Approx. 275 g (including batteries and the protective cover)
Standard accessories
Three RS-232C cables for weighing instruments (9-pin D-Sub, 25-pin D-Sub, and 7-pin DIN, 1 m), USB cable (1 m), Two LR6 (AA) batteries (for operation check), Protective cover, Instruction manual
Sensor
Resolution
Measurement range
Accuracy
Temperature
0.1 °C ,0.1 °F
0.1 °F 0 to 60 °C ,32 to 140 °F
32 to 140 °F ±0.5 °C (20 to 30 °C),±0.9 °F (68 to 86 °F)
With a length of 210 mm, the tweezers allow a weight to be placed in a weighing pan without having to put a hand inside the chamber. This prevents convection flow that is normally attributed to heat coming from the hand.
Each tweezer is made from austenitic stainless steel (SUS304), therefore heat from the hand is unlikely to be transmitted to the weight via the tweezers. This is especially effective for the precise measurements required of analytical balances.
Tips of the tweezers are covered in resin to prevent the weight from slipping. The hilt is also covered with resin for easy gripping.
The AD-8526 can connect the RS-232C interface of an A&D weighing instrument to the Ethernet (LAN) port of a computer that is not equipped with an RS-232C interface.
Universal Remote Display for AND Weighing balances
Connects to A&D’s balances and scales using either RS-232C or current loop
Includes an AC adapter and a communication cable that matches your instrument
Recognizes the balance/scale baud setting automatically
Large and bright VFD display
Remote Controller for AND Weighing balances
Displays weighing data Remotely controls a weighing instrument with key operations (no access to the internal settings) Outputs weighing data to another external device such as a PC or printer via the RS-232C connection Optional BCD, comparator, and analog outputs available Can be panel-mounted
