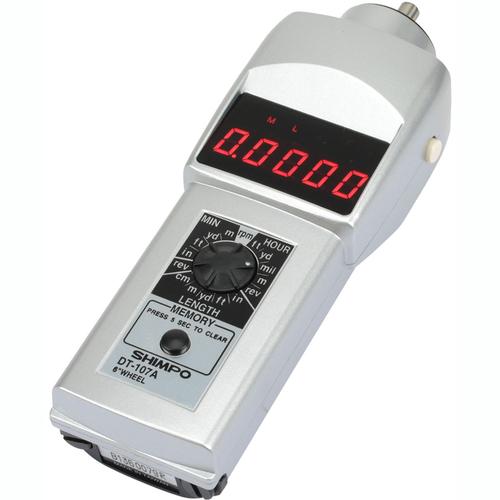

Shimpo DT-107A Contact Style Digital Handheld Tachometer, LED, 6in wheel |
|
| SHIMPO's microprocessor technology has heralded a superior standard in tachometer accuracy and capabilities for measuring and recording rotational/linear/surface speeds and total length. Offering unprecedented confidence via new improvements, the DT-105A and DT-107A battery-operated tachometers still feature the same rugged, high quality components that have made them the benchmark in the industry more ... |
|
Test Equipment >
Tachometers >
Tachometers
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
SHIMPOs microprocessor technology has heralded a superior standard in tachometer accuracy and capabilities for measuring and recording rotational/linear/surface speeds and total length. Offering unprecedented confidence via new improvements, the DT-105A and DT-107A battery-operated tachometers still feature the same rugged, high quality components that have made them the benchmark in the industry. These user-friendly, value-packed units feature expanded memory storage, added length functions, free N.I.S.T. certificate and many standard accessories.
FEATURES
- Multi-mode speed selection
- Outstanding accuracy
- Rugged aluminum construction
- Direct length measurement
- Extensive speed range (0.10 - 25,000 RPM
- Large 5 digit display
- Lengthy battery life (40 - 60 hours)
- Large 10 test memory capacity (selectable to 5 minutes or more)
- Total revolution display
- CE mark
- Minimum shaft loading overspeed protection
BENEFITS
- Features 16 selections for optimum versatility
- Provides reliable measurement results
- Built to stand the test of time
- Offers value/versatility via added applications
- Maximizes usage in almost limitless applications
- Allows easy reading of numbers
- Advanced power management enables longer operating times
- Stores last/min/max readings for thorough equipment and process inspection
- Enables rotation counting during process analysis
- Permits easy compliance with regulations
- Compliant with applicable EU directives
- Prevents potential instrument damage
| Display Range |
0.10 to 25,000 rpm with floating decimal |
| Accuracy |
0.10 to 999.99 rpm: ±0.06 rpm
1,000.0 to 9,999.9 rpm: ±0.6 rpm
10,000 to 25,000 rpm: ±0.006% rpm
|
| Display |
DT-105A: (LCD MODEL) 5 digit 0.47" (12mm) high
DT-107A: (LED MODEL) 5 digit 0.4" (10mm) high |
| Measurement Units |
Per Second: Inches, Centimeters (optional, inquire)
Per Minute: Revolutions, Inches, Feet, Yards, Meters
Per Hour: Miles, Kilometers (optional, inquire)
Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters |
| Memory System |
13 readings are stored in memory and retained for 5 minutes
(last, max., min., and 10 measurements) |
| Over-Range Indicator |
Flashing numerals |
| Update Time |
1 second (typical) |
| Batteries |
2 - 1.5 V AA |
| Battery Life |
Approx. 65 hrs. (DT-105A)
Life: Approx. 40 hrs. (DT-107A) |
| Low Voltage Indicator |
Flashing "LO BAT" display (DT-105A)
"B" display (DT-107A) |
| Operating Temp |
32 to 113° F (0 to 45° C) |

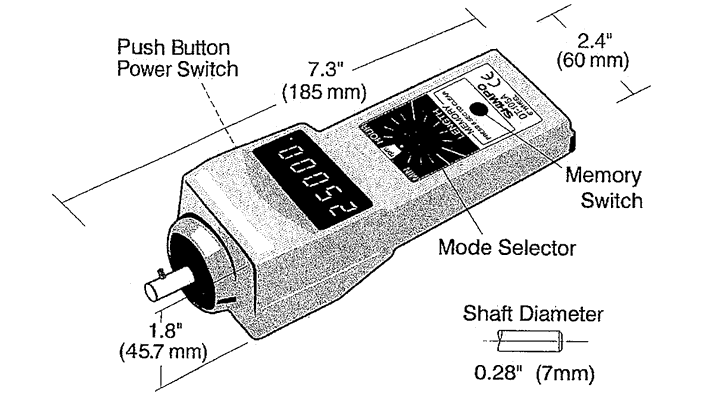

| Dimensions |
7.3" L x 2.4" W x 1.8" H |

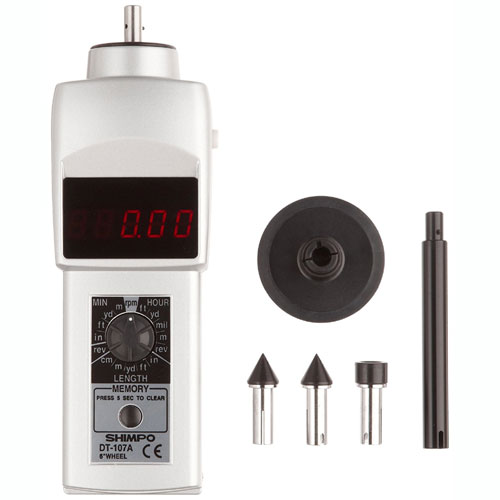

| Accessories Included |

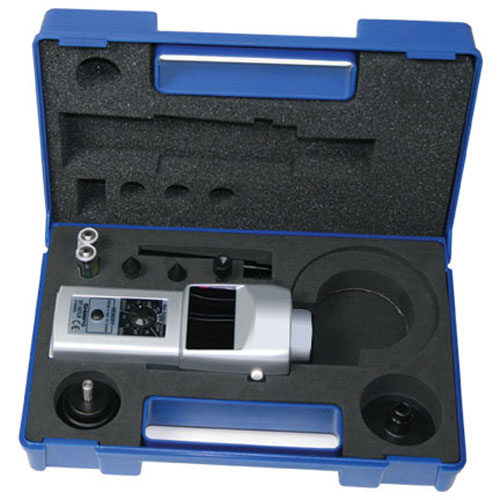

2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions |
| Country of Origin |
Taiwan |
Weight:
2.00 lb
|
